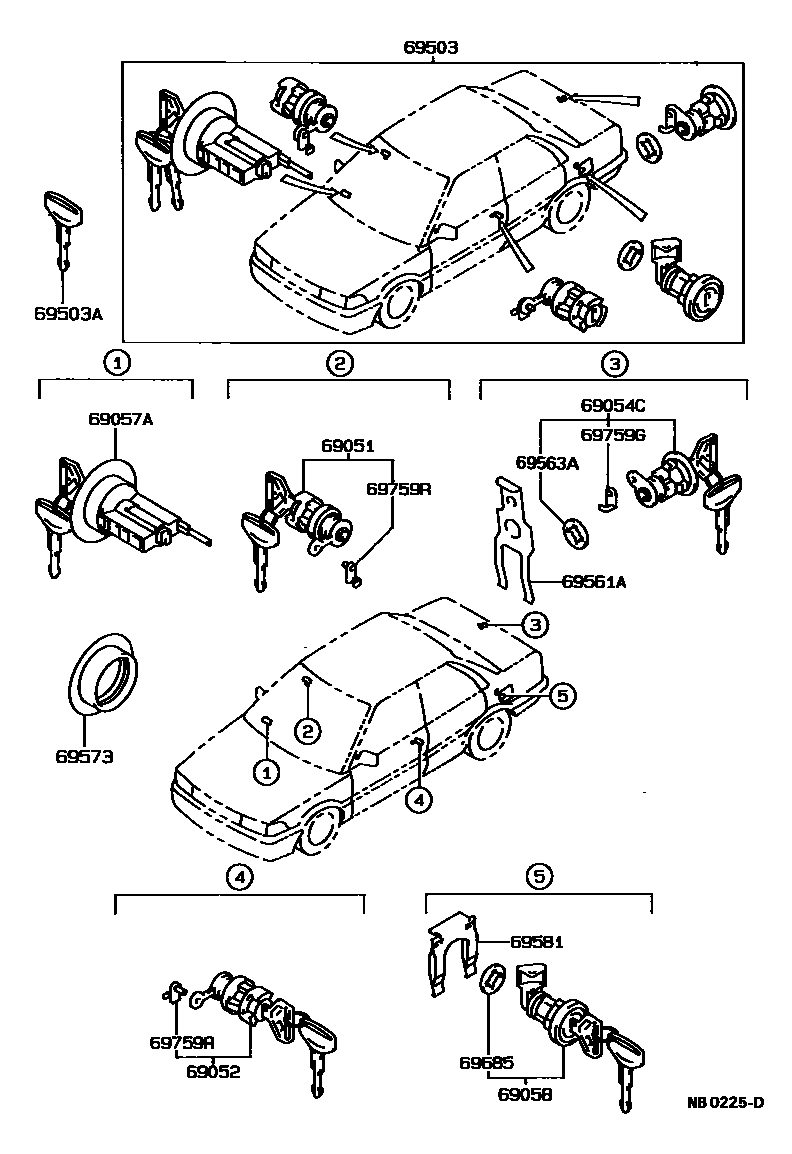

LOCK CYLINDER SET

0001 1 0002 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12220iAE95;AE92,CE90,EE90..LB,SED¥3,550198705-199205

main69051-13110iAE92,CE90,EE90..WG¥3,520198708-199205

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12220iAE95;AE92,CE90,EE90..LB,SED¥3,550198705-199205

main69052-13110iAE92,CE90,EE90..WG¥3,520198708-199205

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12470iAE92,CE90,EE90..LB¥3,520198705-199205

main69055-12550iAE95..WG¥3,740198802-199009

main69055-13120iAE92,CE90,EE90..WG¥3,740198708-199205

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12430iCE90,EE90..SED..STD¥3,520198705-199205

main69055-12450iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)¥3,520198705-199205

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12110iAE95;AE92,CE90,EE90..LB,SED¥7,100198705-199205

main69057-13070iAE92,CE90,EE90..WG¥7,100198708-199205

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12130iCE90,EE90..SED..STD¥3,520198705-199205

sub69058-10160¥3,990

main69058-13090iAE92,CE90,EE90..WG..(STD,XL,XLI)¥3,990198708-199205

sub69058-16120¥4,020

69503CYLINDER SET, LOCK

main69005-12780iCE90,EE90..SED..STD¥18,200198705-199205

main69005-12790iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)¥15,600198705-199205

main69005-12820iAE92,CE90,EE90..LB¥15,600198705-199205

main69005-13150iEE90..WG..GL198708-199205

W(FUELLID OPENER)

main69005-13180iAE92,CE90,EE90..WG..(STD,XL,XLI)198708-199205

main69005-1A180iAE95..WG¥13,900198802-199009

69503AKEY, BLANK

main90999-00132iAE95¥2,070198705-199205

MASTER KEY,W(*68)

sub90999-00174¥2,070

main90999-00133iAE95¥2,060198705-198908

MASTER KEY,W(*69)

sub90999-00132¥2,070

main90999-00134iAE92,CE90,EE90..WG¥2,060198708-199205

MASTER KEY,W(*68)

sub90999-00146¥2,060

main90999-00135iAE92,CE90,EE90..SED¥2,060198705-199205

SUB KEY,W(*68)

sub90999-00150¥2,060

main90999-00136iAE9#,CE90,EE90..SED¥2,060198705-198808

SUB KEY,W(*69)

sub90999-00135¥2,060

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-12170iAE9#,CE90,EE90..SED¥200198705-199205

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12040iAE95..WG¥390198802-199009

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12050iAE92,CE90,EE90..LB¥190198708-199205

main69563-32010iAE92,CE90,EE90..LB¥310198705-198708

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE9#,CE90,EE90¥390198705-199205

69581RETAINER, FUEL FILLER LID CYLINDER

main69502-12010iCE90,EE90..SED..STD¥270198705-199205

main69511-32010iAE92,CE90,EE90..WG..(STD,XL,XLI)¥160198708-199205

69685PAD, LOCK CYLINDER

main69513-12020iAE92,CE90,EE90..WG..(STD,XL)¥340198708-198903

main69513-13010iAE92,CE90,EE90..WG..(STD,XL,XLI)¥140198903-199205

main69513-32010iCE90,EE90..SED..STD¥120198705-199205

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090iAE92,CE90,EE90..SED¥280198705-198708

main69759-24090iAE9#,CE90,EE90..SED¥180198708-199205

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE95;AE92,CE90,EE90..LB,SED¥320198705-199205

RH

main69759-30050iAE95;AE92,CE90,EE90..LB,SED¥350198705-199205

LH

16 parts on this diagram · 3 diagrams in section
