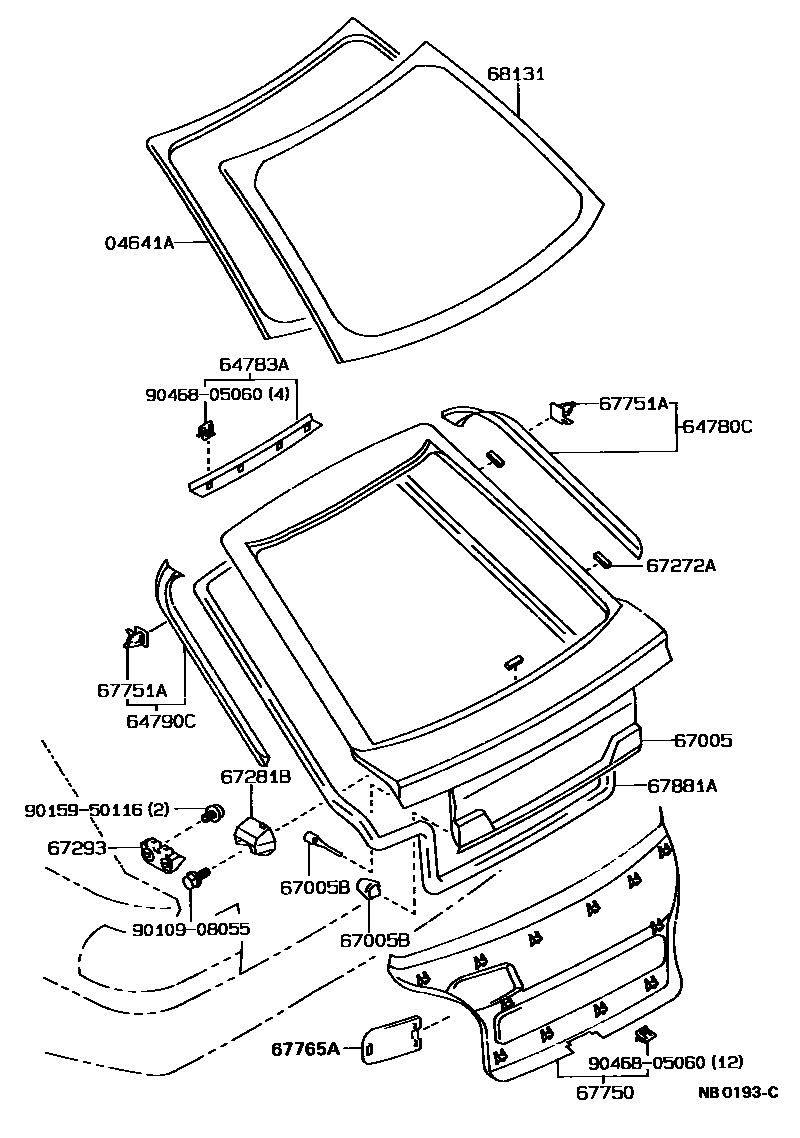

BACK DOOR PANEL & GLASS
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64780CPANEL ASSY, BACK DOOR TRIM, RH
DARK BLUE,TRIM8#
BROWN,TRIM4#
64783ATRIM, BACK WINDOW PANEL, UPPER
DARK BLUE,TRIM8#
BROWN,TRIM4#
64790CPANEL ASSY, BACK DOOR TRIM, LH
DARK BLUE,TRIM8#
BROWN,TRIM4#
67005PANEL SUB-ASSY, BACK DOOR
W(*RW)
W(*RW)
W(*RW)
W(REAR SPOILER)
W(REAR AIR SPOILER)
TYPE A
W(*RW)
W(*RW & LARGE LICENCE PLATE)
67005BCUSHION(FOR BACK DOOR PANEL)
LWR
UPR
67272ACUSHION, BACK DOOR STOPPER, NO.2
67281BSTOPPER, BACK DOOR, LOWER
RH
LH
67293CUSHION, BACK DOOR LOWER STOPPER
67750BOARD ASSY, BACK DOOR TRIM
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
67751BOARD, BACK DOOR TRIM
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=4.0
*EHTT,T=4.0,COLD SPEC
*EHT,T=4.0
*EHT,T=4.0,COLD SPEC
*EHTT,T=3.5
*EHTT,T=3.5
*EHTT,T=3.5,W(*RW)
*EHT,T=3.5
*EHT,T=3.5,COLD SPEC
*EHTT,T=4.0,GRAY
9010908055
9015950116
9046805060
18 parts on this diagram · 3 diagrams in section
