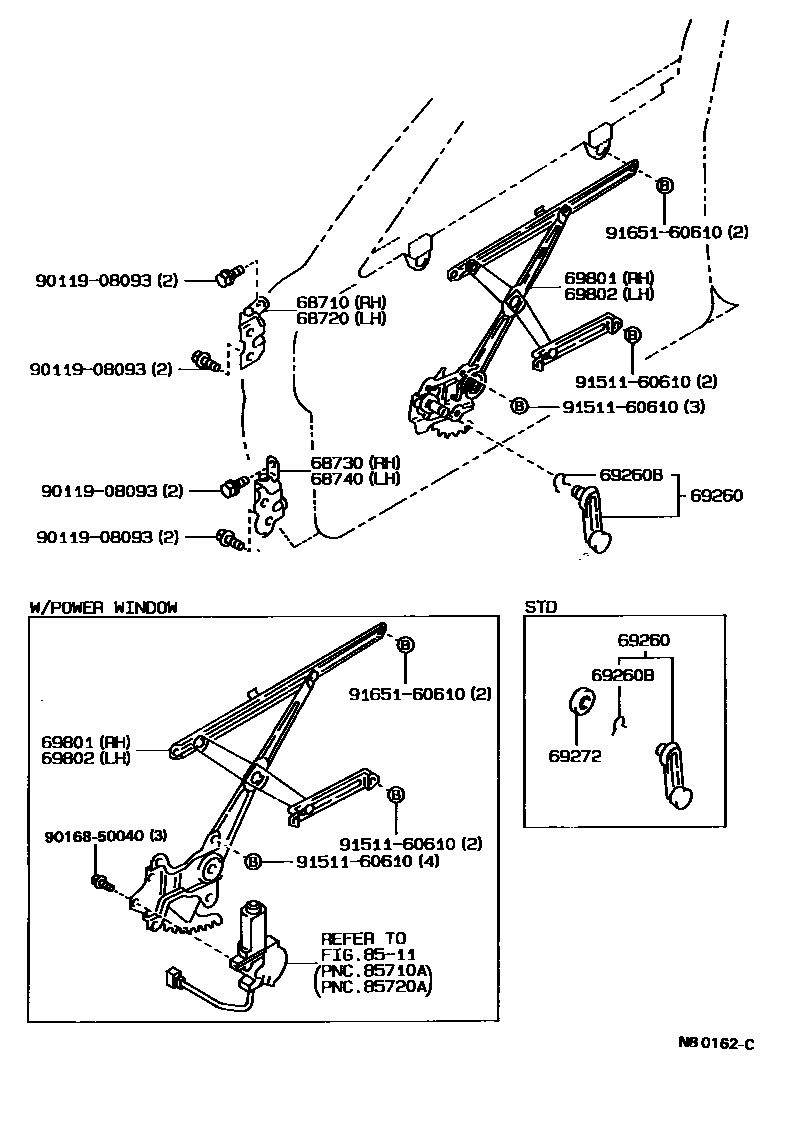

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE9#,CE90,EE90¥2,980198705-199205

sub68710-12110¥2,990

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iAE9#,CE90,EE90¥2,980198705-199205

sub68720-12110¥2,990

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iAE9#,CE90,EE90¥2,990198705-199205

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iAE9#,CE90,EE90¥2,990198705-199205

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12070-13iCE90,EE90..STD198705-199205

GRAY,TRIM1#

sub69260-14030¥1,610

main69260-12070-15iCE90,EE90..STD198705-198908

DARK BEIGE,TRIM4#

sub69260-14030¥1,610

main69260-12070-34iCE90,EE90..STD198908-199205

BLUE,TRIM8#

sub69260-14030¥1,610

main69260-12090-02iAE95,CE90,EE90..RHD..SED198705-199205

MAROON,TRIM3#

sub69260-12090¥1,610

main69260-12090-03iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

SHADOW GRAY,TRIM1#

sub69260-12090¥1,610

main69260-12090-04iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-199205

BLUE,TRIM8#

sub69260-12090¥1,610

main69260-12090-05iAE9#,CE90,EE90..GL,GLI,XL,XLI198705-198908

DARK BEIGE,TRIM4#

sub69260-12090¥1,610

main69260-12090-06iAE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub69260-12090¥1,610

main69260-14030-53iCE90,EE90..STD198705-199205

SHADOW GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-59iCE90,EE90..STD198908-199205

DARK BLUE,TRIM8#

sub69260-14030¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCE90,EE90..STD¥180198705-199205

sub90520-01274¥160

main90520-01005iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI¥110198705-199205

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iCE90,EE90..STD¥180198705-199205

sub69268-20020¥180

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iEE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI¥7,300198705-199205

W(*PW)

main69810-12290iAE9#,CE90,EE90¥6,300198705-199205

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iEE90..STD..EFI;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI¥7,300198705-199205

W(*PW)

main69820-12290iAE9#,CE90,EE90¥6,300198705-199205

8511

9011908093

main90119-08093¥90

9016850040

main90168-50040¥70

9151160610

main91511-60610¥120

9165160610

main91651-60610¥100

14 parts on this diagram · 1 diagram in section
