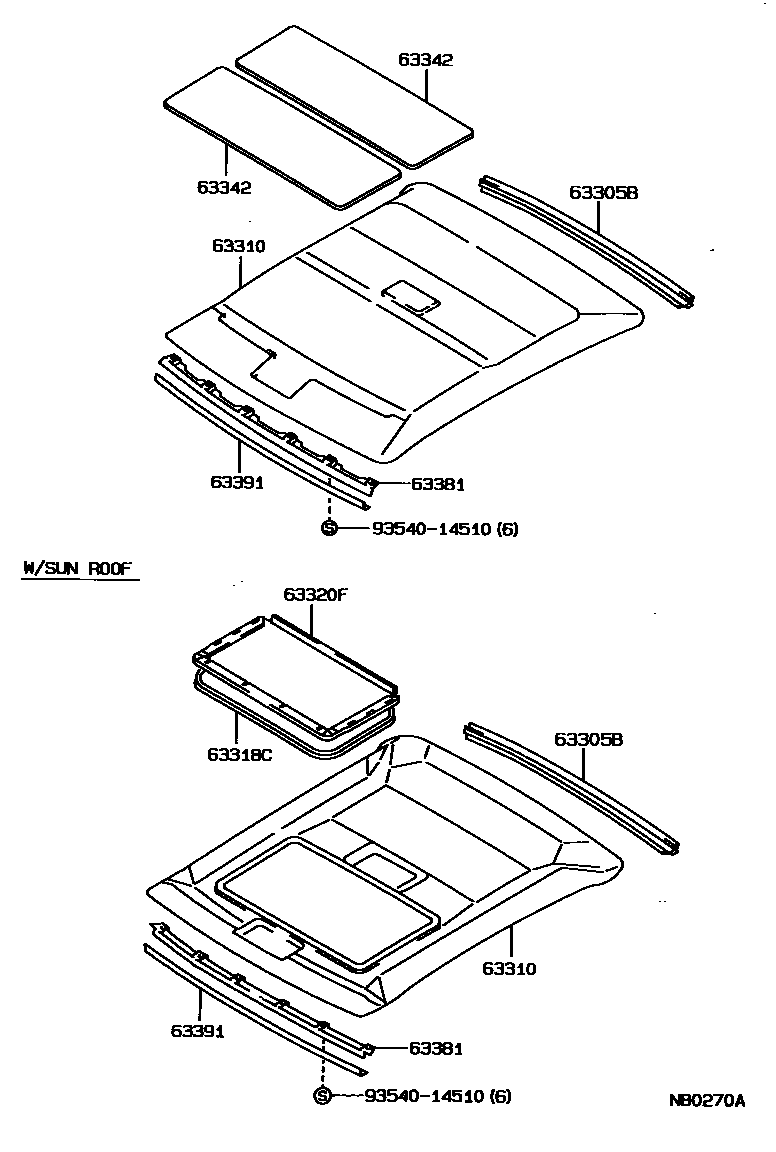

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12080-02iAE95,CE90,EE90..RHD..SED198705-198809

MAROON,TRIM3#

sub63305-12080

main63305-12080-03iAE9#,CE90,EE90..SED198705-199009

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-04iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198705-198809

DARK BLUE,TRIM8#

sub63305-12080

main63305-12080-05iAE9#,CE90,EE90..SED198705-198809

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-06iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#

sub63305-12080

main63305-12080-B0iAE92,CE90,EE90..SED199009-199205

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-D0iAE95,CE90,EE90..RHD..SED198809-199205

MAROON,TRIM3#

sub63305-12080

main63305-12080-E0iAE9#,CE90,EE90..SED198809-198908

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-E1iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198909-199205

BROWN,TRIM4#

sub63305-12080

main63305-12080-J0iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198809-199205

DARK BLUE,TRIM8#

sub63305-12080

main63305-12100-02iAE92,EE90..RHD..LB..CBR198705-198908

MAROON,TRIM3#

sub63305-12100

main63305-12100-03iAE92,CE90,EE90..LB198705-199009

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-04iAE92,CE90,EE90..LHD..LB..(CBR,DSL)198705-198811

DARK BLUE,TRIM8#

sub63305-12100

main63305-12100-05iAE92,CE90,EE90..LB..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub63305-12100

main63305-12100-06iAE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198908-199008

BROWN,TRIM4#

sub63305-12100

main63305-12100-B1iAE92,CE90,EE90..LB199009-199205

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-J0iAE92,CE90,EE90..LB..(GL,GLI,XL,XLI)198811-199109

DARK BLUE,TRIM8#

sub63305-12100

main63305-12130-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main63305-12130-04iAE95..WG198802-199009

DARK BLUE,TRIM8#

main63305-12130-05iAE95..WG198802-198908

DARK BEIGE,TRIM4#

main63305-12130-06iAE95..LHD..WG198908-199009

BROWN,TRIM4#

main63305-13010-03iAE92,CE90,EE90..WG198708-199205

SHADOW GRAY,TRIM1#

main63305-13010-04iAE92,CE90,EE90..WG..(GL,XL,XLI)198708-199205

DARK BLUE,TRIM8#

main63305-13010-05iAE92,CE90,EE90..WG..(GL,XL)198708-198908

DARK BEIGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-12750-02iAE95,EE90..RHD..SED..GL198705-199205

MAROON,TRIM3#

sub63310-12750

main63310-12750-03iAE9#,EE90..SED..(GL,GLI)198705-199205

LIGHT GRAY,TRIM1#

sub63310-12750

main63310-12750-04iAE9#,EE90..LHD..SED..(GL,GLI)198705-199205

LIGHT BLUE,TRIM8#

sub63310-12750

main63310-12750-05iAE9#,EE90..SED..(GL,GLI)198705-198908

LIGHT BEIGE,TRIM4#

sub63310-12750

main63310-12750-06iAE9#,EE90..LHD..SED..(GL,GLI)198908-199205

LIGHT BROWN,TRIM4#

sub63310-12750

main63310-12840-02iAE95,CE90,EE90..RHD..SED198705-198809

W(SUN ROOF),MAROON,TRIM3#

sub63310-12840

main63310-12840-03iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-198809

W(SUN ROOF),LIGHT GRAY,TRIM1#

sub63310-12840

main63310-12840-04iAE92,CE90,EE90..LHD..SED..XL198705-198708

LIGHT BLUE,TRIM8#

sub63310-12840

main63310-12840-04iAE92,CE90,EE90..LHD..SED..XL198705-198809

W(SUN ROOF),LIGHT BLUE,TRIM8#

sub63310-12840

main63310-12840-05iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-198809

W(SUN ROOF),LIGHT BEIGE,TRIM4#

sub63310-12840

main63310-12840-06iAE9#,CE90,EE90..LHD..SED..(XL,XLI)198908-198909

LIGHT BROWN,TRIM4#

sub63310-12840

main63310-12840-06iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

W(SUN ROOF),LIGHT BROWN,TRIM4#

sub63310-12840

main63310-12840-B0iAE92..SED198809-199205

W(SUN ROOF),LIGHT GRAY,TRIM1#

sub63310-12840

main63310-12840-D0iAE95,CE90,EE90..RHD..SED198908-199205

W(SUN ROOF),MARRON,TRIM3#

sub63310-12840

main63310-12840-E0iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198809-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

sub63310-12840

main63310-12840-J0iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198809-199205

W(SUN ROOF),LIGHT BLUE,TRIM8#

sub63310-12840

main63310-12880-02iAE92,EE90..RHD..LB..CBR198705-198908

MAROON,TRIM3#

main63310-12880-03iAE92,CE90,EE90..LB198705-199205

LIGHT GRAY,TRIM1#

main63310-12880-04iAE92,CE90,EE90..LHD..LB..(CBR,DSL)198705-199205

LIGHT BLUE,TRIM8#

main63310-12880-05iAE92,CE90,EE90..LB..(CBR,DSL)198705-198908

LIGHT BEIGE,TRIM4#

main63310-12880-06iAE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198908-199008

LIGHT BROWN,TRIM4#

main63310-13140-03iAE92,CE90,EE90..WG..(GL,XL,XLI)198708-199205

LIGHT GRAY,TRIM1#

main63310-13140-04iAE92,CE90,EE90..LHD..WG..XL198708-199205

LIGHT BLUE,TRIM8#

main63310-13140-05iAE92,CE90,EE90..WG..(GL,XL)198708-198908

LIGHT BEIGE,TRIM4#

main63310-13150-03iCE90,EE90..WG..STD198708-199109

LIGHT GRAY,TRIM1#

main63310-13150-04iCE90,EE90..WG..STD198908-199109

LIGHT BLUE,TRIM8#

main63310-13150-05iCE90,EE90..WG..STD198708-198908

LIGHT BEIGE,TRIM4#

main63310-1A010-02iAE92,EE90..RHD..LB..CBR198705-198908

W(SUN ROOF),MAROON,TRIM3#

main63310-1A010-03iAE92,CE90,EE90..LB198705-199205

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A010-04iAE92,CE90,EE90..LHD..LB..(CBR,DSL)198705-199205

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A010-05iAE92,CE90,EE90..LB..(CBR,DSL)198705-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A010-06iAE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198908-199008

W(SUN ROOF),LIGHT BROWN,TRIM4#

main63310-1A080-02iCE90,EE90..RHD..SED..XL198705-198809

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-03iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-198809

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-04iAE9#,CE90,EE90..LHD..SED..(XL,XLI)198708-198809

LIGHT BLUE,TRIM8#

sub63310-1A080

main63310-1A080-05iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-198809

LIGHT BEIGE,TRIM4#

sub63310-1A080

main63310-1A080-B1iAE9#,CE90,EE90..SED..(STD,XL,XLI)198809-199205

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-D1iCE90,EE90..RHD..SED..XL198809-199205

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-E1iAE9#,CE90,EE90..LHD..SED..(XL,XLI)198909-199205

LIGHT BROWN,TRIM4#

sub63310-1A080

main63310-1A080-E2iAE9#,CE90,EE90..SED..(STD,XL,XLI)198809-198908

LIGHT BROWN,TRIM4#

sub63310-1A080

main63310-1A080-J1iAE9#,CE90,EE90..LHD..SED..(XL,XLI)198809-199205

LIGHT BLUE,TRIM8#

sub63310-1A080

main63310-1A120-03iAE95..WG198802-199009

W(ROOF INNER RACK),LIGHT GRAY,TRIM1#

main63310-1A120-04iAE95..WG198802-199009

W(ROOF INNER RACK),LIGHT BLUE,TRIM8#

main63310-1A120-05iAE95..WG198802-198908

W(ROOF INNER RACK),LIGHT BEIGE,TRIM4#

main63310-1A120-06iAE95..LHD..WG198908-199009

W(ROOF INNER RACK),LIGHT BROWN,TRIM4#

main63310-1A130-03iAE95..WG198802-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-04iAE95..WG198802-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A130-05iAE95..WG198802-198908

W(ROOF INNER RACK & SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A130-06iAE95..LHD..WG198908-199009

W(ROOF INNER RACK & SUN ROOF),LIGHT BROWN,TRIM4#

main63310-1A140-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63310-1A140-04iAE95..WG198802-199009

LIGHT BLUE,TRIM8#

main63310-1A140-05iAE95..WG198802-198908

LIGHT BEIGE,TRIM4#

main63310-1A140-06iAE95..LHD..WG198908-199009

LIGHT BROWN,TRIM4#

main63310-1A150-03iAE95..WG198802-199009

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A150-04iAE95..WG198802-199009

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A150-05iAE95..WG198802-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A150-06iAE95..LHD..WG198908-199009

W(SUN ROOF),LIGHT BROWN,TRIM4#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12030-02iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-198901

MAROON,TRIM3#

sub63318-12030

main63318-12030-03iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)198705-198908

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-04iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198705-198908

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12030-05iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,XL,XLI)198705-198908

LIGHT BEIGE,TRIM4#

sub63318-12030

main63318-12030-06iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198908-198909

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-B3iAE92,CE90,EE90..LB198908-199205

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-D1iAE95,CE90,EE90..RHD..SED198901-199205

MARRON,TRIM3#

sub63318-12030

main63318-12030-E4iAE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198909-199205

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-J2iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,XL,XLI)198908-199205

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12040-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63318-12040-04iAE95..WG198802-199009

LIGHT BLUE,TRIM8#

main63318-12040-05iAE95..WG198802-198908

LIGHT BEIGE,TRIM4#

main63318-12040-06iAE95..LHD..WG198908-199009

LIGHT BROWN,TRIM4#

63320FHEADLINING ASSY, SUN ROOF

main63320-12070-02iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-198809

MAROON,TRIM3#

sub63320-12070

main63320-12070-03iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)198705-198809

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-04iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198705-198809

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12070-05iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,XL,XLI)198705-198809

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-06iAE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

LIGHT BROWN,TRIM4#

sub63320-12070

main63320-12070-B1iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)198809-199205

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-D1iAE95,CE90,EE90..RHD..SED198809-199205

MARRON,TRIM3#

sub63320-12070

main63320-12070-E1iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,XL,XLI)198809-198908

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-J1iAE9#,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198809-199205

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12090-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63320-12090-04iAE95..WG198802-199009

LIGHT BLUE,TRIM8#

main63320-12090-05iAE95..WG198802-198908

LIGHT BEIGE,TRIM4#

main63320-12090-06iAE95..LHD..WG198908-199009

LIGHT BROWN,TRIM4#

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE95;AE92,CE90,EE90..LB,SED198705-199205

63381RETAINER, HEADLINING, FRONT

main63381-12150iAE95..WG;AE92,CE90,EE90..LB198705-199205

sub63381-12140

main63381-12190iAE95..SED;AE92,CE90,EE90..SED,WG198705-199205

63391TRIM, ROOF HEADLINING, FRONT

main63391-12060-02iAE95,CE90,EE90..RHD..SED198705-198809

MAROON,TRIM3#

sub63391-12060

main63391-12060-03iAE95..SED;CE90,EE90..SED..STD;AE92,CE90,EE90..(SED,WG)..(GL,GLI,XL,XLI)198705-199009

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-04iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub63391-12060

main63391-12060-05iAE95..SED;CE90,EE90..SED..STD;AE92,CE90,EE90..(SED,WG)..(GL,XL)198705-198809

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-06iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#

sub63391-12060

main63391-12060-B0iEE90..SED..STD;AE92,CE90,EE90..(SED,WG)..(GL,GLI,XL,XLI)199009-199205

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-D0iAE95,CE90,EE90..RHD..SED198809-199205

MAROON,TRIM3#

sub63391-12060

main63391-12060-E0iAE95..SED;CE90,EE90..SED..STD;AE92,CE90,EE90..(SED,WG)..(GL,XL)198809-198908

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-E1iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198909-199205

BROWN,TRIM4#

sub63391-12060

main63391-12060-J0iAE95..SED;EE90..SED..STD;AE92,CE90,EE90..(SED,WG)..(GL,GLI,XL,XLI)198809-199205

DARK BLUE,TRIM8#

sub63391-12060

main63391-12080-02iAE92,EE90..RHD..LB..CBR198705-198908

MAROON,TRIM3#

sub63391-12080

main63391-12080-03iAE95..WG;AE92,CE90,EE90..LB198705-199009

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-04iAE95..WG;AE92,CE90,EE90..LHD..LB..(CBR,DSL)198705-198811

DARK BLUE,TRIM8#

sub63391-12080

main63391-12080-05iAE95..WG;AE92,CE90,EE90..LB..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub63391-12080

main63391-12080-06iAE95..LHD..WG;AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198908-199009

BROWN,TRIM4#

sub63391-12080

main63391-12080-B1iAE92,CE90,EE90..LB199009-199205

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-J0iAE95..WG;AE92,CE90,EE90..LB..(GL,GLI,XL,XLI)198811-199205

DARK BLUE,TRIM8#

sub63391-12080

main63391-13040-03iCE90,EE90..WG..STD198708-199004

SHADOW GRAY,TRIM1#

sub63391-13041

main63391-13040-04iCE90,EE90..WG..STD198908-199004

DARK BLUE,TRIM8#

sub63391-13041

main63391-13040-05iCE90,EE90..WG..STD198708-198908

DARK BEIGE,TRIM4#

sub63391-13041

main63391-13041-03iCE90,EE90..WG..STD199004-199109

SHADOW GRAY,TRIM1#

main63391-13041-04iCE90,EE90..WG..STD199004-199109

DARK BLUE,TRIM8#

9354014510

main93540-14510

8 parts on this diagram · 5 diagrams in section
