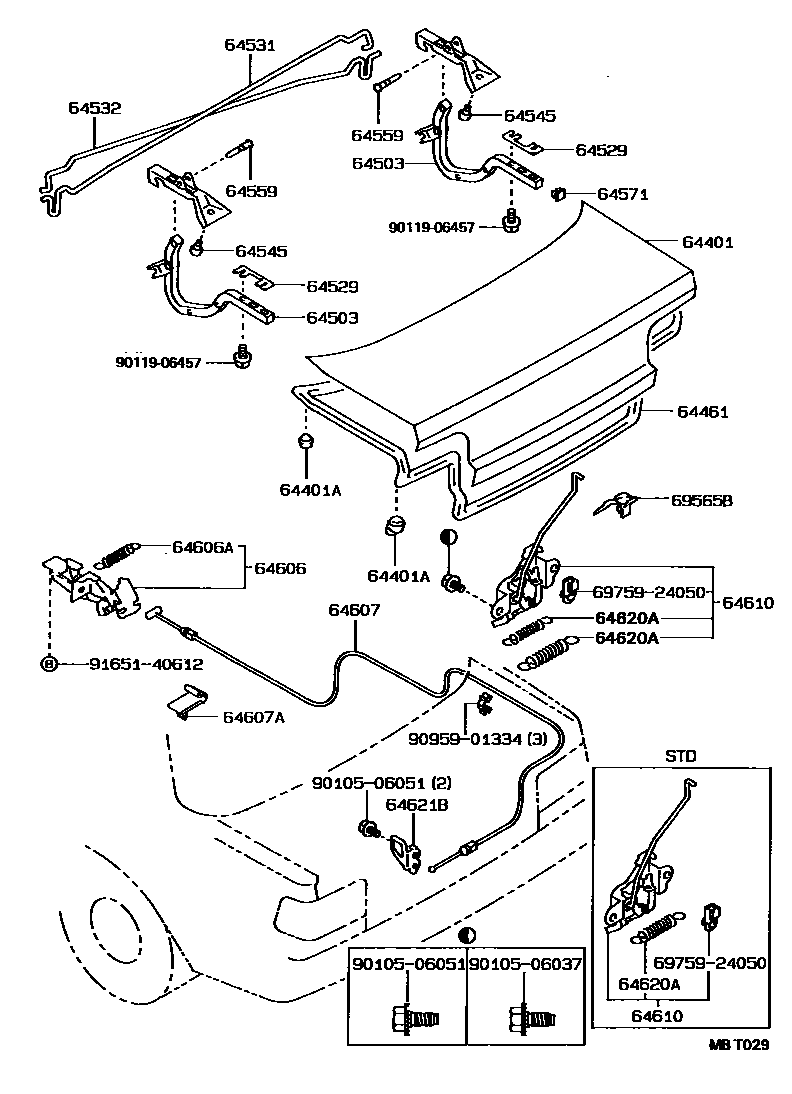

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A370iAE9#,CE90,EE90..SED198908-198910

main64401-1A372iAE9#,CE90,EE90..SED198910-199205

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-12010×4iAE9#,CE90,EE90..SED198911-199205

RR

main90541-06076×2iAE9#,CE90,EE90..SED198705-199205

FR

sub90541-06056

main90541-20002×4iAE9#,CE90,EE90..SED198908-198911

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12350iAE9#,CE90,EE90..SED198705-199205

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12030×2iAE9#,CE90,EE90..SED198705-199205

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAE9#,CE90,EE90..SED198705-199205

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12240iAE9#,CE90,EE90..SED198805-199205

main64531-12250iAE9#,CE90,EE90..SED198705-198805

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12230iAE9#,CE90,EE90..SED198805-199205

main64532-12240iAE9#,CE90,EE90..SED198705-198805

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09014×2iAE9#,CE90,EE90..SED198705-199205

64559PIN, LUGGAGE DOOR HINGE

main64559-32010×2iAE9#,CE90,EE90..SED198705-199205

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020×2iAE9#,CE90,EE90..SED198710-199205

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12050iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198705-199205

main64606-12060iAE95,CE90,EE90..RHD..SED198705-199205

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034×2iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)198908-199205

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12330iAE95..LHD..SED198712-199008

main64607-12340iAE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198712-199205

main64607-12420iAE95,CE90,EE90..RHD..SED198705-199205

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198705-199205

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12100iCE90,EE90..SED..STD198705-199205

main64610-12120iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-199205

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-06008iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-199205

WD=0.55,CW=13.25

main90506-07013iCE90,EE90..SED..STD198705-198908

WD=0.65,CW=12.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE9#,CE90,EE90..SED198705-199205

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12040iAE9#,CE90,EE90..SED198705-199205

6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050

9010506037

main90105-06037

9010506051

main90105-06051

9011906457

main90119-06457

9095901334

main90959-01334

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
