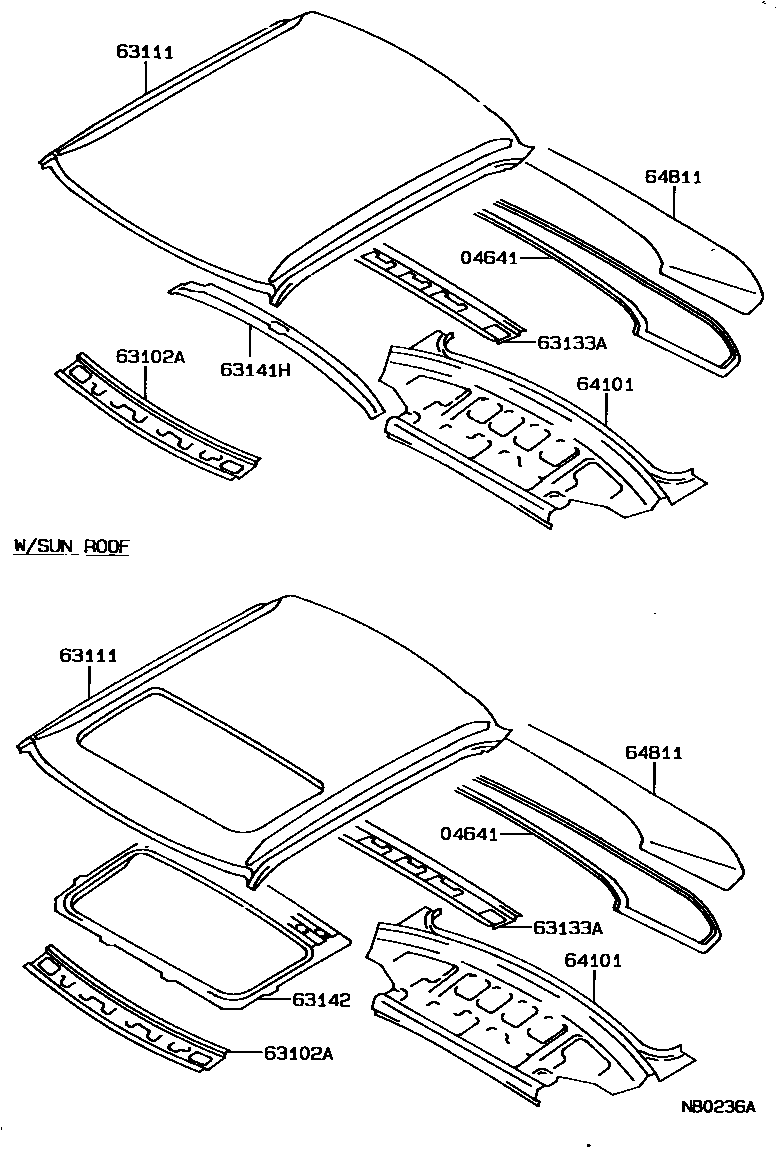

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iAE9#,CE90,EE90198705-199205

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12040iAE9#,CE90,EE90..SED198705-199205

main63102-12050iAE92,CE90,EE90..LB198705-199205

main63102-12070iAE95..WG198802-199009

main63102-13010iAE92,CE90,EE90..WG198708-199205

63111PANEL, ROOF

main63111-12300iAE9#,CE90,EE90..SED198705-198808

sub63111-12301

main63111-12301iAE9#,CE90,EE90..SED198808-199205

main63111-12310iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-198808

W(SUN ROOF)

sub63111-12311

main63111-12311iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198808-199205

W(SUN ROOF)

main63111-12350iAE92,EE90..RHD..LB198705-199205

main63111-12360iAE92,CE90,EE90..LHD..LB198705-199205

main63111-12370iAE92,EE90..RHD..LB198705-199205

W(SUN ROOF)

main63111-12380iAE92..LB..(GLI,XLI)198705-199205

W(SUN ROOF)

main63111-12906iAE95..RHD..WG198802-199009

main63111-12907iAE95..LHD..WG198802-199009

main63111-12908iAE95..RHD..WG198802-199009

W(SUN ROOF)

main63111-12909iAE95..LHD..WG198802-199009

W(SUN ROOF)

main63111-12910iAE95..RHD..WG198802-199009

W(REAR AIR SPOILER)

main63111-12911iAE95..LHD..WG198802-199009

W(REAR AIR SPOILER)

main63111-12912iAE95..RHD..WG198802-199009

W(SUN ROOF & REAR AIR SPOILER)

main63111-12913iAE95..LHD..WG198802-199009

W(SUN ROOF & REAR AIR SPOILER)

main63111-13070iAE92,CE90,EE90..WG198708-199205

63133AFRAME, BACK WINDOW, UPPER

main63133-12160iAE9#,CE90,EE90..SED198705-199205

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12130iAE9#,CE90,EE90..LB,SED198705-199205

main63141-12150iAE95..WG198802-199009

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12030iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)198705-199205

main63142-12050iAE95..WG198802-199009

main63142-13040iAE92,CE90,EE90..WG198708-199205

64101PANEL SUB-ASSY, UPPER BACK

main64101-12350iAE9#,CE90,EE90..SED198705-199205

64811GLASS, BACK WINDOW

main64811-1A100iAE9#,CE90,EE90..SED198705-199205

*EHTT,T=3.5

sub64811-1A130

main64811-1A110iAE9#,CE90,EE90..LHD..SED198705-199205

*EHT,T=3.5

sub64811-1A140

main64811-1A130iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198705-199205

*EHTT,T=3.5

main64811-1A140iAE95..LHD198705-198908

*EHTT,T=3.5,COLD SPEC

main64811-1A140iAE9#,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

*EHTT,T=3.5

8 parts on this diagram · 6 diagrams in section
