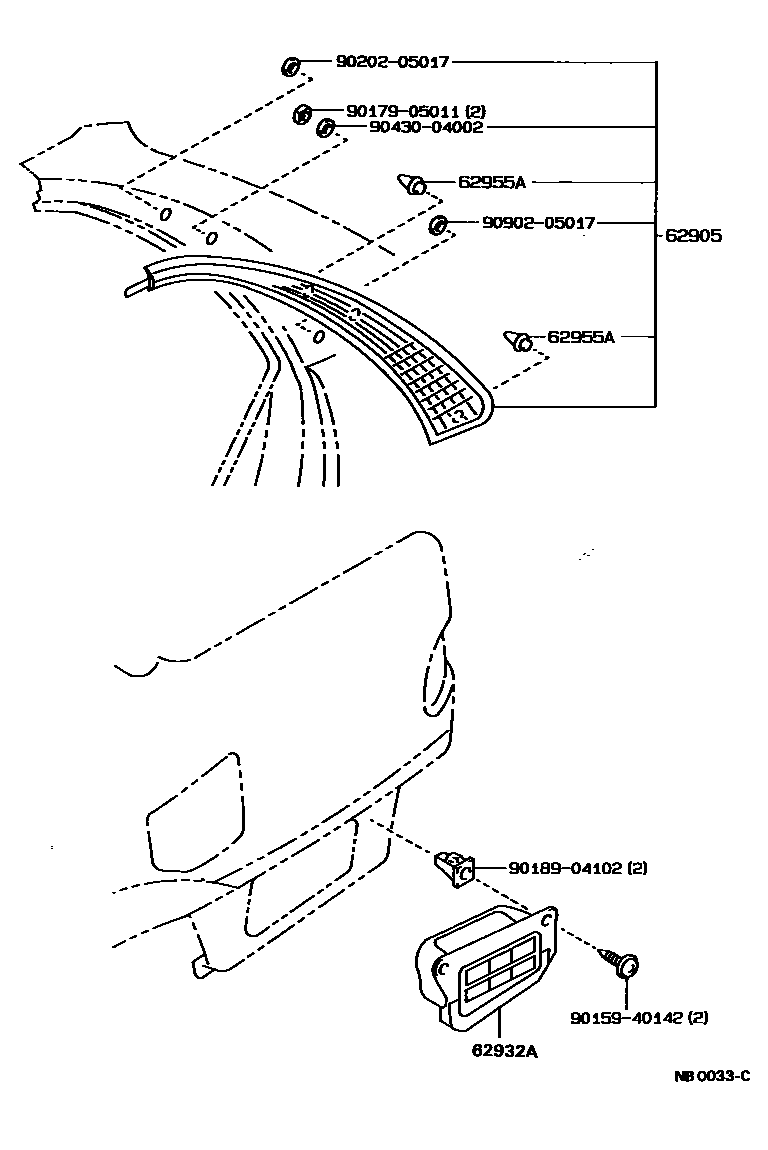

ROOF SIDE VENTILATOR

0001 1 0002 1 0003 1 0004 1

62905LOUVER, QUARTER VENTILATION

main62905-12250iEE90..SED..XLI;AE95..SED..(XL,XLI);EE90..SED..(STD,XL)..CBR;AE92,CE90..SED..(GLI,STD,XL,XLI)198705-199205

RH

main62905-12310iAE92,EE90..SED..GL;AE95..SED..(GL,GLI)198705-199205

RH

main62905-13050iCE90,EE90..WG..STD198708-199109

RH

main62905-13060iAE92,CE90,EE90..WG..(STD,XL,XLI)199109-199205

RH

main62905-13070iEE90..WG..GL198708-199205

RH

main62906-12250iEE90..SED..XLI;AE95..SED..(XL,XLI);EE90..SED..(STD,XL)..CBR;AE92,CE90..SED..(GLI,STD,XL,XLI)198705-199205

LH

main62906-12310iAE92,EE90..SED..GL;AE95..SED..(GL,GLI)198705-199205

LH

main62906-13050iCE90,EE90..WG..STD198708-199109

LH

main62906-13060iAE92,CE90,EE90..WG..(STD,XL,XLI)199109-199205

LH

main62906-13070iEE90..WG..GL198708-199205

LH

main62951-12440iAE92,CE90,EE90..LB198705-199205

RH

main62952-12360iAE92,CE90,EE90..LB198705-199205

LH

62932ADUCT, QUARTER VENT, LH

main62932-12210iAE92,CE90,EE90..LB198705-199205

main62940-12070iAE9#,CE90,EE90..SED198705-199205

sub62940-12100

main62940-13010iAE92,CE90,EE90..WG198708-199205

62955ARETAINER, QUARTER VENT LOUVER

main62955-12020×4iAE9#,CE90,EE90..SED198705-198812

main62955-12040×4iAE9#,CE90..SED;EE90..SED..CBR;EE90..SED..XLI198812-199205

main62955-20020×6iAE92,CE90,EE90..WG198708-199205

sub62955-12010

9015940142

main90159-40142

9017905011

main90179-05011

9018904102

main90189-04102

9020205017

main90202-05017

9043004002

main90430-04002

9090205017

main90902-05017

9 parts on this diagram · 4 diagrams in section
