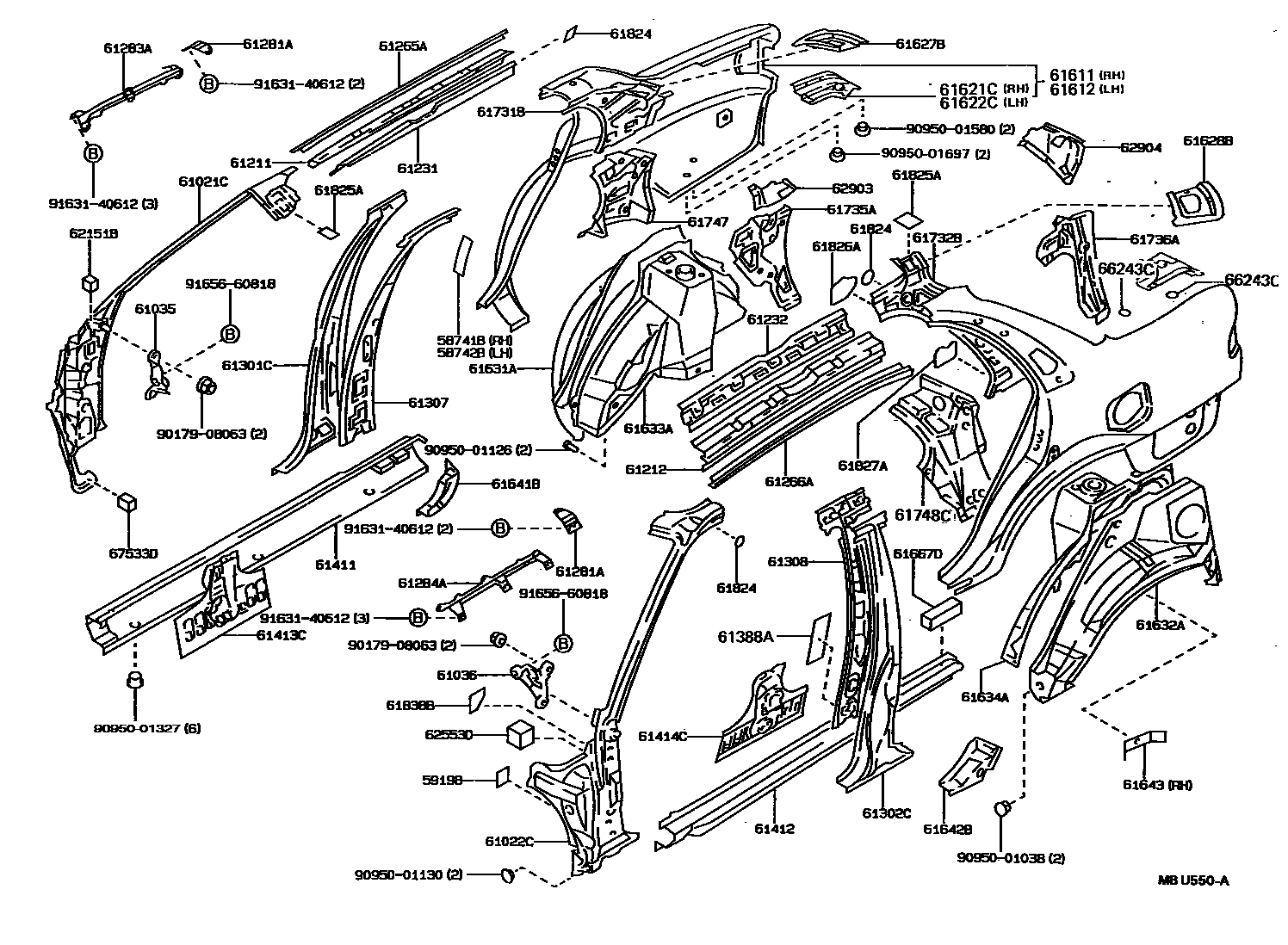

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12040iAE9#,CE90,EE90..WG¥340198808-199205

FR

main58741-12040iAE9#,CE90,EE90¥340198808-199205

main58741-12060iAE9#,CE90,EE90¥860198710-198808

main58741-12060iAE92,CE90,EE90..WG¥860198712-198808

FR

main58741-13010iAE9#,CE90,EE90..WG¥340198712-199205

RR

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iAE9#,CE90,EE90¥860198710-198808

main58741-12060iAE92,CE90,EE90..WG¥860198712-198808

FR

main58742-12040iAE9#,CE90,EE90¥340198808-199205

main58742-12040iAE95;AE92,CE90,EE90..WG¥340198808-199205

FR

main58743-12010iAE9#,CE90,EE90..WG¥860198712-199205

RR

59198SEAL, NOISE SHUTTER

main59198-12010iAE9#,CE90,EE90¥160198705-199205

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12640iAE92,CE90,EE90..LHD..SED¥45,900198705-199205

main61021-12780iAE95,CE90,EE90..RHD..SED¥45,900198705-199205

main61021-12820iAE92,EE90..RHD..LB¥45,900198705-199205

main61021-12840iAE92,CE90,EE90..LHD..LB¥45,900198705-199205

main61021-13050iAE92,CE90,EE90..LHD..WG¥43,800198708-199205

main61021-13110iCE90,EE90..WG..STD¥44,700198708-199109

main61021-13120iCE90,EE90..RHD..WG¥43,800198708-199205

main61021-1A020iAE95..LHD..WG198802-199009

sub61021-1A070

main61021-1A030iAE95..RHD..WG¥32,500198802-199009

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12650iAE9#,CE90,EE90..LHD..SED¥45,900198705-199205

main61022-12790iAE95,CE90,EE90..RHD..SED¥45,900198705-199205

main61022-12830iAE92,EE90..RHD..LB¥45,900198705-199205

main61022-12850iAE92,CE90,EE90..LHD..LB¥45,900198705-199205

main61022-13050iAE92,CE90,EE90..LHD..WG¥43,800198708-199205

main61022-13110iCE90,EE90..WG..STD¥44,700198708-199109

main61022-13120iCE90,EE90..RHD..WG¥43,800198708-199205

main61022-1A020iAE95..LHD..WG198802-199009

sub61022-1A080

main61022-1A040iAE95..RHD..WG¥32,500198802-199009

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12040iAE9#,CE90,EE90..LHD¥1,960198705-199205

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12040iAE9#,CE90,EE90..RHD¥1,970198705-199205

61211RAIL, ROOF SIDE, OUTER RH

main61211-12220iAE9#,CE90,EE90..SED¥3,930198705-199205

main61211-12230iAE92,CE90,EE90..LB¥3,930198705-199205

main61211-12270iAE95..WG¥6,000198802-199009

main61211-13040iAE92,CE90,EE90..WG¥3,930198708-199205

61212RAIL, ROOF SIDE, OUTER LH

main61212-12220iAE9#,CE90,EE90..SED¥3,930198705-199205

main61212-12230iAE92,CE90,EE90..LB¥3,930198705-199205

main61212-12270iAE95..WG¥6,000198802-199009

main61212-13040iAE92,CE90,EE90..WG¥3,930198708-199205

61231RAIL, ROOF SIDE, INNER RH

main61231-12430iAE9#,CE90,EE90..SED¥3,310198705-199205

main61231-12450iAE92,CE90,EE90..LB¥3,170198705-199205

main61231-12660iAE95..WG¥5,700198802-199009

main61231-13060iCE90,EE90..WG..STD¥4,350198708-199109

main61231-13080iAE92,CE90,EE90..WG..(GL,XL,XLI)¥4,310198708-199205

61232RAIL, ROOF SIDE, INNER LH

main61232-12330iAE9#,CE90,EE90..SED¥3,310198705-199205

main61232-12360iAE92,CE90,EE90..LB¥3,170198705-199205

main61232-12530iAE95..WG¥5,700198802-199009

main61232-13040iCE90,EE90..WG..STD¥4,350198708-199109

main61232-13060iAE92,CE90,EE90..WG..(GL,XL,XLI)¥4,310198708-199205

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12110iAE9#,CE90,EE90..SED¥2,070198705-199205

main61265-12160iAE92,CE90,EE90..LB¥1,930198705-199205

main61265-12170iAE95..WG¥2,870198802-199009

main61265-13020iAE92,CE90,EE90..WG¥1,990198708-199205

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12110iAE9#,CE90,EE90..SED¥2,070198705-199205

main61266-12160iAE92,CE90,EE90..LB¥1,930198705-199205

main61266-12170iAE95..WG¥2,870198802-199009

main61266-13020iAE92,CE90,EE90..WG¥1,990198708-199205

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12030iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)¥440198705-199205

main61281-12050iAE95..WG¥390198802-199009

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12030iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)¥1,630198705-199205

main61283-12060iAE95..WG¥1,570198802-199009

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12030iAE9#,CE90,EE90..(LB,SED)..(GL,GLI,GTI,XL,XLI)¥1,630198705-199205

main61284-12060iAE95..WG¥1,570198802-199009

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-12190iAE9#,CE90,EE90¥22,600198705-199205

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-12250iAE9#,CE90,EE90¥22,600198705-199205

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-12020iAE9#,CE90,EE90..LB,SED¥10,200198705-199205

main61307-13010iAE9#,CE90,EE90..WG¥10,200198708-199205

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-12020iAE92,CE90,EE90..LB,SED¥10,200198705-199205

main61308-13020iAE9#,CE90,EE90..WG¥10,200198708-199205

61388APLATE, CENTER BODY PILLAR END, RH

main61388-12010iAE9#,CE90,EE90¥440198705-198912

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE9#,CE90,EE90¥21,900198705-199205

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE9#,CE90,EE90¥21,900198705-199205

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-12040iAE9#,CE90,EE90¥3,300198705-199205

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-12060iAE9#,CE90,EE90¥3,300198705-199205

61611PANEL, QUARTER, RH

main61601-13905iCE90,EE90..WG..STD¥55,300198708-198908

sub61601-13908¥54,900

sub61525-13010¥930

main61601-13906iAE92,CE90,EE90..WG¥54,900198708-199205

main61601-13908iCE90,EE90..WG..STD¥54,900198908-199109

main61601-1A900iAE9#,CE90,EE90..SED¥42,000198705-199205

main61601-1E900iAE92,CE90,EE90..LB¥42,000198705-199205

main61601-1E901iAE92..RHD..EFI¥42,000198705-199205

W(REAR AIR SPOILER)

main61601-1E909iAE95..WG¥42,000198802-199009

61612PANEL, QUARTER, LH

main61602-13905iCE90,EE90..WG..STD¥55,500198708-199109

main61602-13908iAE92,CE90,EE90..WG..(STD,XL,XLI)¥54,900198708-199205

main61602-13909iAE92,CE90,EE90..WG..(XL,XLI)¥54,900198708-199205

W(REAR AIR SPOILER)

main61602-1E901iAE92,CE90,EE90..LB¥42,000198705-199205

main61602-1E903iAE92..RHD..EFI¥42,000198705-199205

W(REAR AIR SPOILER)

main61602-1E910iCE90,EE90..SED..STD¥42,000198705-199205

main61602-1E911iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)¥30,700198705-199205

main61602-1E916iAE95..WG¥42,000198802-199009

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12280iAE9#,CE90,EE90..SED¥2,210198705-198910

sub61621-12281¥2,190

main61621-12281iAE9#,CE90,EE90..SED¥2,190198910-199205

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12280iAE9#,CE90,EE90..SED¥2,210198705-198910

sub61622-12281¥2,190

main61622-12281iAE9#,CE90,EE90..SED¥2,190198910-199205

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12020iAE9#,CE90,EE90..SED¥1,620198705-199205

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12020iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)¥1,620198705-199205

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE92,CE90,EE90..SED¥10,100198705-199205

main61631-13060iAE9#,CE90,EE90..WG¥11,800198708-199205

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE92,CE90,EE90..LB¥10,100198705-199205

main61632-12270iAE95..WG¥11,800198802-199009

main61632-12280iAE95..SED¥10,300198710-199008

main61632-13050iAE92,CE90,EE90..WG¥11,800198708-199205

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12190iAE92,CE90,EE90..LB¥16,500198705-199205

sub61607-12210¥16,500

main61607-12400iAE95..WG¥17,200198802-199009

main61607-12909iAE92,EE90..SED..(GL,GLI)¥21,000198705-199205

main61607-12909iAE92,CE90,EE90..SED..(XL,XLI)¥21,000198705-199205

W(REAR SPLIT FOLD DOWN SEAT)

main61607-12911iAE92,CE90,EE90..SED..(STD,XL,XLI)¥21,100198705-199205

main61607-12913iAE95..SED¥19,200198710-199008

main61607-13050iAE92,CE90,EE90..WG¥15,900198708-199205

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12200iAE92,CE90,EE90..LB¥16,500198705-199205

sub61608-12220¥16,500

main61608-12420iAE95..WG¥17,200198802-199009

main61608-12907iAE92,EE90..SED..(GL,GLI)¥21,000198705-199205

main61608-12907iAE92,CE90,EE90..SED..(XL,XLI)¥21,000198705-199205

W(REAR SPLIT FOLD DOWN SEAT)

main61608-12909iAE92,CE90,EE90..SED..(STD,XL,XLI)¥21,100198705-199205

main61608-12911iAE95..SED¥19,200198710-199008

main61608-13050iAE92,CE90,EE90..WG¥15,900198708-199205

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iEE90..4F..XL¥1,540198705-199205

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE95,CE90;AE92..LB,WG;EE90..STD,XL;AE92..SED..XL;EE90..(LB,WG)..GL¥1,540198705-199205

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61643-12040iEE90..4F..XL¥1,420198705-198708

61667DSEAL, QUARTER PANEL

main61667-12050iAE92,CE90,EE90..SED,WG¥380198705-199205

61731BPANEL, ROOF SIDE, INNER RH

main61731-12420iAE9#,CE90,EE90..SED¥3,710198705-199205

main61731-12440iAE92,CE90,EE90..LB¥5,800198705-199205

main61731-12490iAE95..WG¥15,400198802-199009

main61731-13240iCE90,EE90..WG..STD¥9,200198708-199109

main61731-13250iAE92,CE90,EE90..WG¥9,100198708-199205

main61731-13270iCE90,EE90..WG..STD¥9,200198708-199109

W(REAR SEAT BELT(3 POINT))

61732BPANEL, ROOF SIDE, INNER LH

main61732-12380iAE9#,CE90,EE90..SED¥3,710198705-199205

main61732-12400iAE92,CE90,EE90..LB¥5,800198705-199205

main61732-12450iAE95..WG¥15,400198802-199009

main61732-13240iCE90,EE90..WG..STD¥9,200198708-199109

main61732-13250iAE92,CE90,EE90..WG¥9,100198708-199205

main61732-13270iCE90,EE90..WG..STD¥9,200198708-199109

W(REAR SEAT BELT(3 POINT))

61735APANEL, ROOF SIDE, INNER REAR RH

main61705-12949iAE92,CE90,EE90..LB¥6,500198705-199205

main61735-12290iAE95..WG¥1,480198802-199009

main61735-12902iAE9#,CE90,EE90..SED¥4,160198705-199205

main61735-13050iAE92,CE90,EE90..WG¥2,980198708-199205

61736APANEL, ROOF SIDE, INNER REAR LH

main61706-12954iAE92,CE90,EE90..LB¥6,500198705-199205

main61736-12260iAE95..WG¥1,480198802-199009

main61736-12902iAE92,CE90,EE90..SED¥3,090198705-199205

main61736-12904iAE95..SED¥2,980198710-199008

main61736-13050iAE92,CE90,EE90..WG¥2,980198708-199205

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12100iAE9#,CE90,EE90..SED¥3,620198705-199205

main61747-12140iAE92,CE90,EE90..LB¥3,300198705-199205

main61747-12160iAE95..WG¥2,870198802-199009

main61747-13010iAE92,CE90,EE90..WG¥2,870198708-199205

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12100iAE95,CE90..SED;AE92,EE90..SED..(STD,XL,XLI)¥3,420198705-199205

main61748-12140iAE92,CE90,EE90..LB¥3,210198705-199205

main61748-12160iAE95..WG¥2,870198802-199009

main61748-13040iAE92,CE90,EE90..WG¥2,870198708-199205

61824PLATE, NOISE CONTROL, NO.1

main61824-12020iCE90,EE90..SED..STD¥170198705-198808

W(REAR SEAT BELT(3 POINT))

sub61824-12040¥220

main61824-12020iCE90,EE90..SED..STD¥170198705-198710

W(REAR SEAT BELT(3 POINT)) OR W(SUN ROOF)

sub61824-12040¥220

main61824-12020iAE95;AE92,CE90,EE90..SED¥170198705-198908

sub61824-12040¥220

main61824-12040iAE9#,CE90,EE90..SED¥220198808-199205

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE92,CE90,EE90..WG¥190198705-199205

61826APLATE, NOISE CONTROL, NO.3

main61826-12010iAE9#,CE90,EE90..SED¥250198705-199205

main61826-12020iAE92,CE90,EE90..(LB,WG)..(GL,GLI,GTI,XL,XLI)¥160198705-199205

main61826-12040iAE95..WG¥240198802-199009

61827APLATE, NOISE CONTROL, NO.4

main61827-12010iAE9#,CE90,EE90..SED¥210198705-199205

main61827-12020iAE95..WG¥390198802-199009

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010iAE9#,CE90,EE90¥240198705-199205

62151BPAD, COWL SIDE SILENCER

main62151-12100iAE92,CE90,EE90¥1,090199106-199205

T3.0X80X80

main62151-12100iAE9#,CE90,EE90¥1,090198705-199106

main62151-12130iAE92,CE90,EE90¥1,090199106-199205

85X85

62553DPAD, PILLAR, NO.3

main62553-12120iAE9#,CE90,EE90¥160198705-199205

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-12120iAE95,CE90..SED;AE92,EE90..SED..(STD,XL,XLI)¥2,080198705-199205

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-12130iAE95,CE90..SED;AE92,EE90..SED..(STD,XL,XLI)¥2,080198908-199205

W(REAR SPLIT FOLD DOWN SEAT)

main62904-12130iAE9#,CE90,EE90..SED¥2,080198705-199205

66243CPROTECTOR, REAR BODY, NO.1

main53393-12020iAE92,CE90,EE90..WG¥170198908-199205

main66243-20010iAE9#,CE90,EE90..LB,SED¥180198905-199205

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010iAE9#,CE90,EE90¥480198705-199205

9017908063

main90179-08063¥160

9095001038

main90950-01038¥220

9095001126

main90950-01126¥360

9095001130

main90950-01130¥390

9095001327

main90950-01327¥360

9095001580

main90950-01580¥230

9095001697

main90950-01697¥110

9163140612

main91631-40612¥120

9165660818

main91656-60818¥140

65 parts on this diagram · 4 diagrams in section
