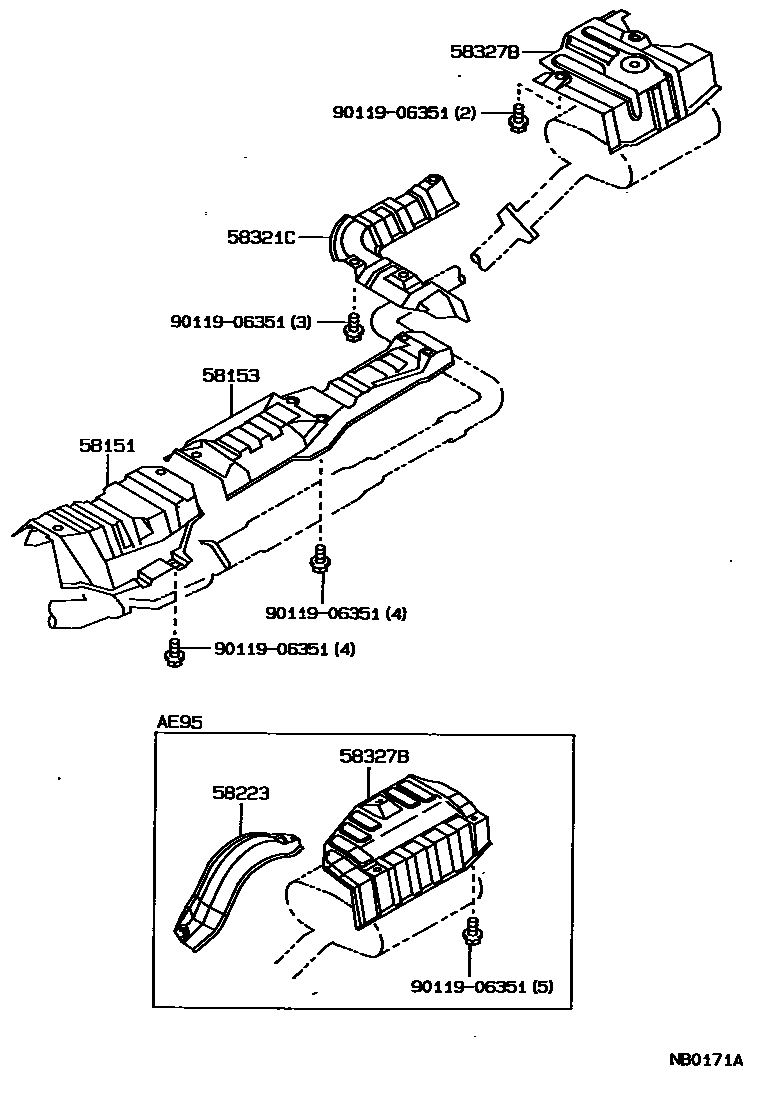

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12120iAE92..3FC..EFI;AE92,EE90..LHD..MTM198705-199205

main58151-12130iAE95..WG..EFI;AE95..LHD..SED198710-199009

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12100iAE92,EE90..EFI198705-199205

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-12050iAE95..WG..EFI;AE95..LHD..SED198710-199009

58321CINSULATOR, REAR FLOOR HEAT, FRONT

main58321-12030iAE92,EE90..EFI198705-199205

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12060iAE92,EE90198705-199205

main58327-12090iAE95198710-199009

9011906351

main90119-06351

6 parts on this diagram · 1 diagram in section
