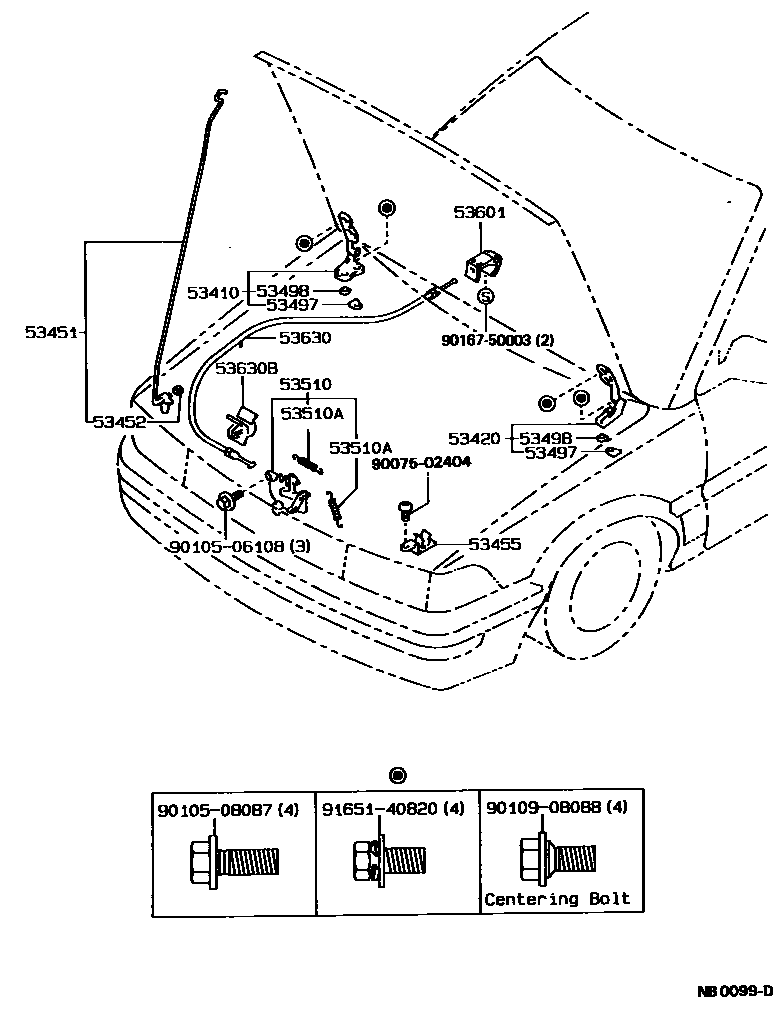

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12170iAE9#,CE90,EE90198705-198808

sub53410-12171

main53410-12171iAE9#,CE90,EE90198808-199205

sub53410-12181

53420HINGE ASSY, HOOD, LH

main53420-12160iAE92,CE90,EE90198705-198808

sub53420-12161

main53420-12161iAE9#,CE90,EE90198808-199205

sub53420-12171

53451ROD, HOOD SUPPORT

main53451-12100iAE92,CE90,EE90..LB198705-198802

main53451-12101iAE95..WG;AE92,CE90,EE90..LB198802-199205

main53451-12120iAE95..SED;AE92,CE90,EE90..SED,WG198705-199205

53452HOLDER, HOOD STAY

main53452-12020iAE9#,CE90,EE90198802-199205

53455CLAMP, HOOD SUPPORT ROD

main53455-12040iAE95..SED;AE92,CE90,EE90..SED,WG198705-199205

main53455-12070iAE95..WG;AE92,CE90,EE90..LB198705-199205

53497PAD, HOOD HINGE, NO.1

main53497-12010iAE9#,CE90,EE90198705-198808

T=1.0

sub53497-12011

main53497-12011iAE9#,CE90,EE90198808-199205

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12010iAE9#,CE90,EE90198705-198808

sub53498-12011

main53498-12011iAE9#,CE90,EE90198808-199205

53510LOCK ASSY, HOOD

main53510-12360iAE95..LHD..WG;AE92,CE90,EE90..LHD..LB198705-199205

main53510-12390iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-199205

main53510-12400iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

main53510-12410iEE90..RHD..LB;AE9#..RHD..(LB,WG)198705-199205

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198908-199205

WD=0.9,CW=21.25,WD=0.9,CW=21.25

main90506-09008iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198908-199205

WD=0.9,CW=21.25

main90506-09012iAE92,CE90,EE90..LB198705-198710

WD=0.9,CW=45.5

main90506-09029iAE92,CE90,EE90..LHD..(SED,WG)199008-199205

WD=0.9

main90506-09029iAE95..SED;AE92,CE90,EE90..SED,WG198705-199205

WD=0.9,WD=0.9,CW=26.5

main90506-09038iAE95..WG;AE92,CE90,EE90..LB198908-199205

WD=0.9,CW=27.5,WD=0.9,CW=27.5

main90506-09038iAE95..WG;AE92,CE90,EE90..LB198710-198908

WD=0.9,CW=27.5

main90506-18024iAE95..SED;AE92,CE90,EE90..SED,WG198708-199205

WD=1.8,CW=18

main90506-20008iAE92,CE90,EE90..SED198705-199205

WD=2.0,CW=17,WD=2.0,CW=17

main90506-20008iAE95..WG;AE92,CE90,EE90..LB198705-198908

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020iAE92..GTI199005-199008

sub53601-20060

main53601-10020-03iAE92,CE90,EE90198705-198707

GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-05iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-198809

DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-12iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-198809

MAROON,TRIM3#

sub53601-10020

sub53601-20060

main53601-10020-23iAE9#,CE90,EE90198707-199005

GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-24iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-198809

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-B1iAE9#,CE90,EE90199008-199205

SHADOW GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-D0iAE95,CE90,EE90..RHD..SED198809-199205

MAROON,TRIM3#

sub53601-10020

sub53601-20060

main53601-10020-E0iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198809-198908

DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-E2iAE95..LHD;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-J0iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198809-199205

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12250iAE9#,CE90,EE90..LHD198705-199205

main53630-12320iAE9#,CE90,EE90..RHD198705-198908

main53630-12340iAE9#,CE90,EE90..LHD198908-199205

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iAE9#,CE90,EE90198705-199205

9007502404

main90075-02404

9010506108

main90105-06108

9010508087

main90105-08087

9010908088

main90109-08088

9016750003

main90167-50003

9165140820

main91651-40820

18 parts on this diagram · 1 diagram in section
