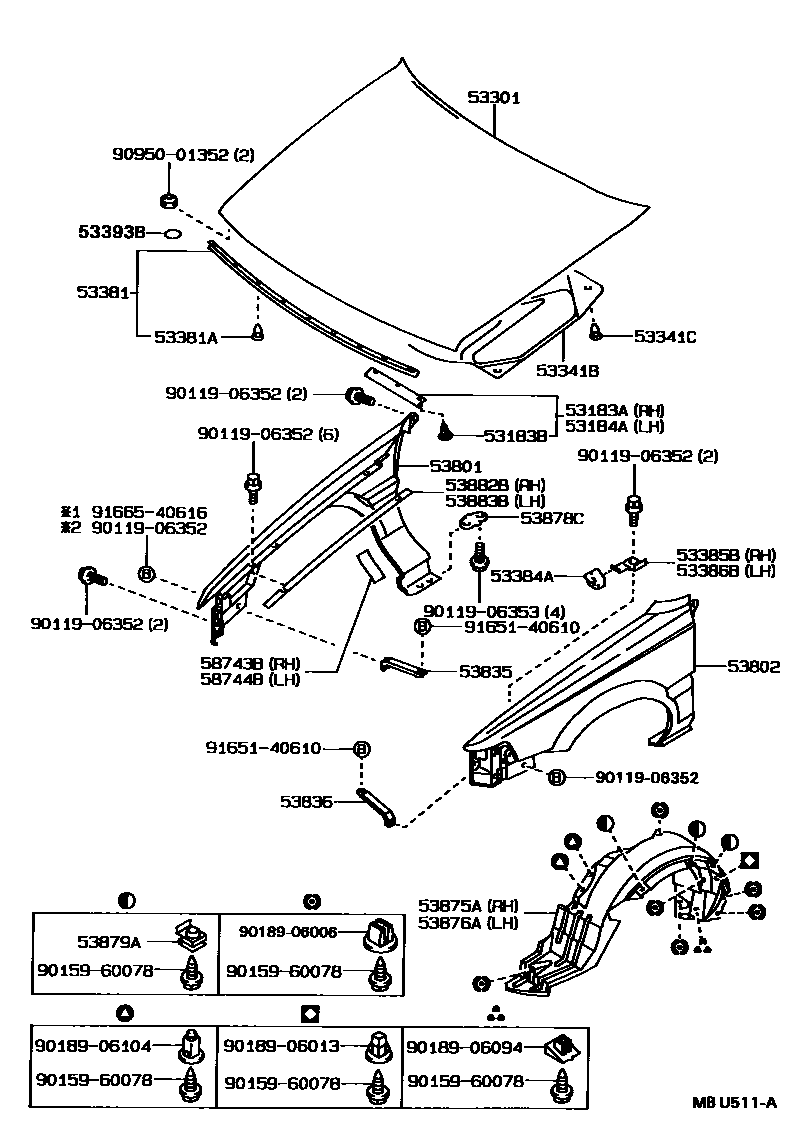

HOOD & FRONT FENDER

53183ASEAL, HEADLAMP COVER, RH

main53183-12050iAE9#,CE90,EE90..SED,WG¥1,020198705-199205

main53183-12060iAE92,CE90,EE90..LB¥1,340198705-199205

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iAE9#,CE90,EE90..SED,WG¥100198705-199205

main90467-08044iAE92,CE90,EE90..LB¥170198705-199205

sub90467-08011¥100

53184ASEAL, HEADLAMP COVER, LH

main53184-12040iAE9#,CE90,EE90..SED,WG¥1,020198705-199205

main53184-12050iAE92,CE90,EE90..LB¥860198705-199205

53301HOOD SUB-ASSY

main53301-12580iAE92,CE90,EE90..LB¥38,700198705-199205

main53301-12590iAE95..SED;AE92,CE90,EE90..SED,WG¥38,700198705-199205

main53301-12660iAE95..WG¥38,700198802-199009

53341BINSULATOR, HOOD

main53341-12040iCE90¥7,100198705-199205

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iCE90¥120198705-199205

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12140iAE9#,CE90,EE90¥2,100198705-199205

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAE9#,CE90,EE90¥100198705-199205

53384ABUMPER, FENDER TO HOOD

main53384-12030iAE95..SED;AE92,CE90,EE90¥440198705-199205

main53384-12060iAE95;AE92,CE90,EE90..WG¥450198803-199205

sub53384-12030¥440

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-12020iAE9#,CE90,EE90¥380198705-199205

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-12020iAE9#,CE90,EE90¥380198705-199205

53393BPROTECTOR, HOOD, FRONT

main53393-12020iAE9#,CE90,EE90¥170198905-199205

53801FENDER SUB-ASSY, FRONT RH

main53801-1E460iAE95..WG;AE92,CE90,EE90..LB¥32,600198705-199205

main53801-1E500iAE95..SED;AE92,CE90,EE90..SED,WG¥32,600198705-199205

53802FENDER SUB-ASSY, FRONT LH

main53802-1E340iAE95..WG;AE92,CE90,EE90..LB¥32,600198705-199205

main53802-1E380iAE95..SED;AE92,CE90,EE90..SED,WG¥32,600198705-199205

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-12050iAE9#,CE90,EE90¥610198705-199205

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53835-12050iAE9#,CE90,EE90¥610198705-199205

53875ALINER, FRONT FENDER, RH

main53875-12150iAE9#,CE90,EE90¥6,300198705-199205

53876ALINER, FRONT FENDER, LH

main53876-12140iAE9#,CE90,EE90¥6,300198705-199205

53878CSPACER, FRONT FENDER

main53878-20030iAE9#,CE90,EE90¥240198705-199205

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE9#,CE90,EE90¥230198705-199205

53882BSEAL, FRONT FENDER, RH

main53882-12080iAE9#,CE90,EE90¥940198705-199205

53883BSEAL, FRONT FENDER, LH

main53882-12080iAE9#,CE90,EE90¥940198705-199205

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-12010iAE9#,EE90;CE90..LB,WG;CE90..SED..XL¥860198710-199205

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-12010iAE9#,EE90;CE90..LB,WG;CE90..SED..XL¥860198710-199205

9011906352

main90119-06352¥120

9011906353

main90119-06353¥160

9015960078

main90159-60078¥120

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9018906094

main90189-06094¥90

9018906104

main90189-06104¥90

9095001352

main90950-01352¥270

9165140610

main91651-40610¥160

9166540616

main91665-40616¥70

34 parts on this diagram · 1 diagram in section
