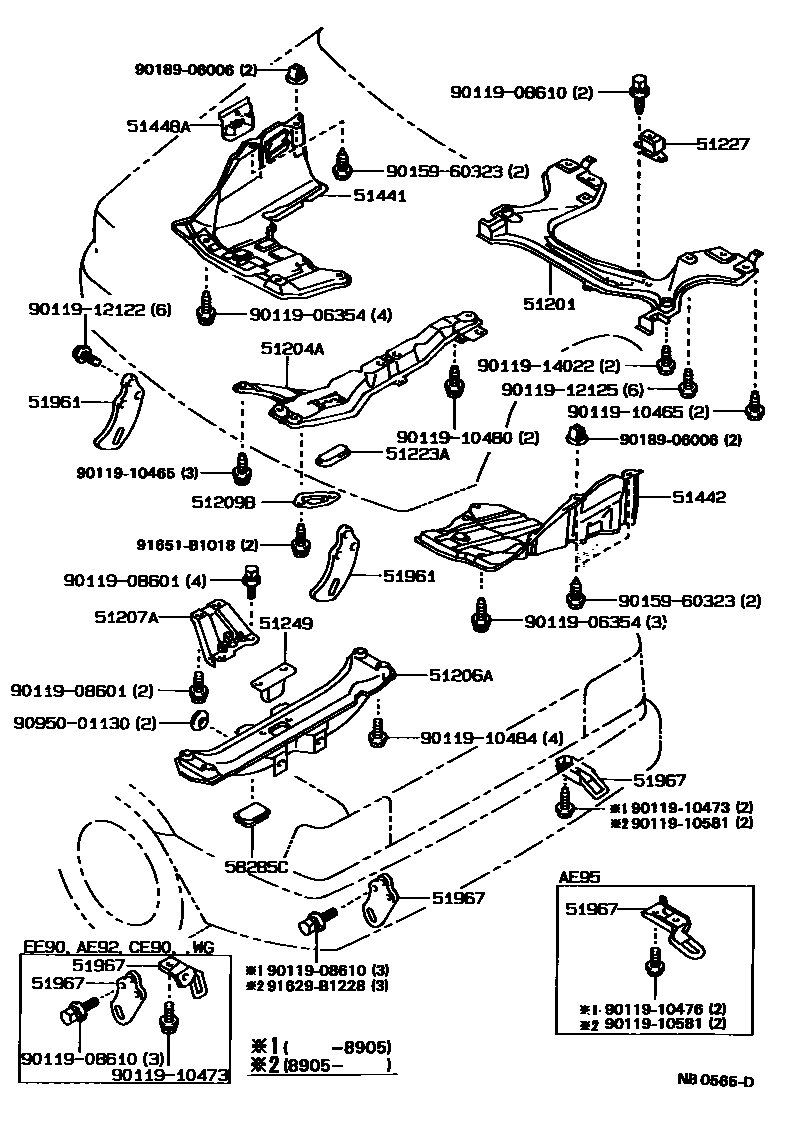

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12280iAE92,CE90,EE90198705-198710

sub51201-12281

sub90950-06001

main51201-12281iAE92,CE90,EE90198710-198711

sub51201-12282

sub90950-01603

main51201-12282iAE92,CE90,EE90198711-199205

main51201-12290iAE95198710-199009

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12060iAE92,CE90,EE90198705-199205

main51204-12070iAE95198710-199009

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12030iAE92,CE90,EE90198705-199205

51207AMEMBER SUB-ASSY, DIFFERENTIAL SUPPORT

main51207-12010iAE92..GTI198705-199205

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE9#,CE90,EE90198705-199205

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAE95198705-199205

sub51223-20030

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12030iAE92,CE90,EE90198705-198811

sub51227-12031

main51227-12031iAE92,CE90,EE90198811-199205

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12020iAE92,CE90,EE90198705-198712

sub51249-12030

main51249-12030iAE92,CE90,EE90198712-198811

sub51249-12040

main51249-12040iAE92,CE90,EE90198811-199205

51441COVER, ENGINE UNDER, NO.1

main51441-12120iAE9#,CE90,EE90198705-199205

51442COVER, ENGINE UNDER, NO.2

main51442-12050iAE92..SED..GLI;AE95,CE90,EE90..MTM;AE92..5F..(GL,GTI,XL,XLI)198705-199205

main51442-12060iAE92,EE90..3FC;AE92..LB..5F..GLI198705-199205

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE9#,CE90,EE90198705-199205

51961HOOK, NO.1

main51963-12180iAE9#,CE90,EE90198705-199205

51967HOOK, TRANSPORT, REAR

main51095-12040iAE92,CE90,EE90..LB,SED198705-199205

RH

main51095-12060iAE95..SED198710-199008

RH

main51095-12080iAE95..WG198802-199009

main51095-13020iAE92,CE90,EE90..WG198708-199205

RH

main51096-12020iAE95..SED198710-199008

LH

main51968-12020iAE92,CE90,EE90198705-198905

LH

main51968-12090iAE92,CE90,EE90198905-198908

main51968-12090iAE92,CE90,EE90198908-199205

LH

58285CCOVER, REAR FLOOR HOLE

main58285-12010iAE95198710-198712

main58285-12020iAE92,CE90,EE90198705-199205

main58285-12030iAE95198712-199009

9011906354

main90119-06354

9011908601

main90119-08601

9011908610

main90119-08610

9011910465

main90119-10465

9011910473

main90119-10473

9011910476

main90119-10476

9011910480

main90119-10480

9011910484

main90119-10484

9011910581

main90119-10581

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9018906006

main90189-06006

9095001130

main90950-01130

91629B1228

main91629-B1228

91651B1018

main91651-B1018

31 parts on this diagram · 1 diagram in section
