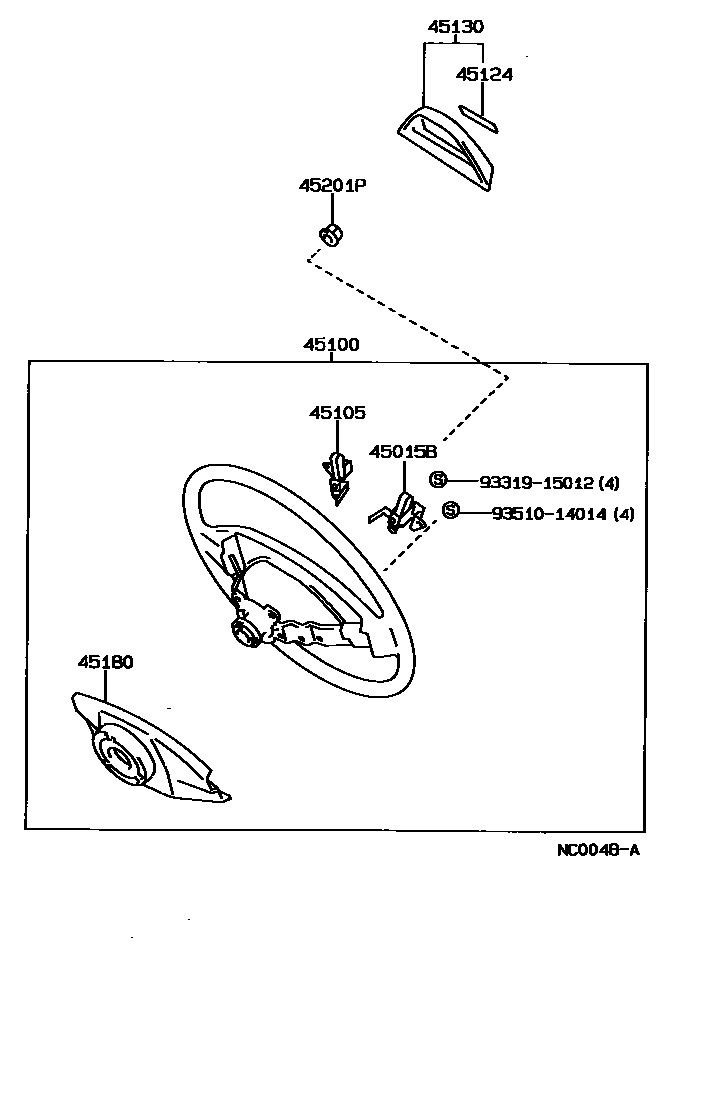

STEERING WHEEL

0001 12 SPOKE 0002 1 0003 13 SPOKE,URETHAN 0004 1

45015BPLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2

main45015-12010iAE95..XL,XLI;AE92,CE90,EE90..(STD,XL)..(CBR,DSL)198705-198909

45100WHEEL ASSY, STEERING

main45100-12500-01iCE90,EE90..STD;CE90,EE90..RHD..XL198710-198908

2-SPOKE,URETHANE,BLACK,TRIM1#,8#

main45100-12500-02iCE90,EE90..RHD..(LB,SED)..XL198705-198908

2-SPOKE,URETHANE,MAROON,TRIM3#

main45100-12500-05iAE9#,CE90,EE90..STD,XL,XLI198705-198908

2-SPOKE,URETHANE,DARK BEIGE,TRIM4#

main45100-12530-01iAE92,CE90,EE90..LHD..(LB,SED)..XL198705-198710

3-SPOKE,URETHANE,BLACK,TRIM1#

main45100-12530-02iCE90,EE90..RHD..(LB,SED)..XL198705-198905

3-SPOKE,URETHANE,MAROON,TRIM3#

main45100-12530-05iAE9#,EE90..GL,GLI198808-198905

3-SPOKE,URETHANE,DARK BEIGE,TRIM4#

main45100-12532-01iAE9#,CE90,EE90..XL,XLI198908-199205

3-SPOKE,URETHANE,3 SPOKE,BLACK,TRIM1#,8#

main45100-12532-02iCE90,EE90..RHD..SED..XL198908-199205

3-SPOKE,URETHANE,MAROON,TRIM3#

main45100-12532-05iAE9#,CE90,EE90..XL,XLI198905-198908

3-SPOKE,URETHANE,DARK BEIGE,TRIM4#

main45100-12532-06iAE95..XL,XLI;AE92,CE90,EE90..LHD..(LB,SED)..(XL,XLI)198908-199008

3-SPOKE,URETHANE,BROWN,TRIM4#

main45100-12550-01iAE92..EFI198705-198907

3-SPOKE,LEATHER,BLACK,TRIM1#

main45100-12550-C0iAE92..EFI198907-198908

3-SPOKE,LEATHER,BLACK,TRIM1#

main45100-12570-01iAE9#,CE90,EE90..STD,XL,XLI198908-199205

2-SPOKE,URETHANE,BLACK,TRIM1#,8#

sub45100-12571

main45100-12570-02iCE90,EE90..RHD..SED..XL198908-199205

2-SPOKE,URETHANE,MAROON,TRIM3#

sub45100-12571

main45100-12570-06iAE95..XL,XLI;AE92,CE90,EE90..LHD..(LB,SED)..(XL,XLI)198908-199008

2-SPOKE,URETHANE,BROWN,TRIM4#

sub45100-12571

main45100-12580-01iAE92..GTI198908-199205

3-SPOKE,LEATHER,BLACK,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12050iAE9#,CE90,EE90..XL,XLI198908-199205

3 SPOKE

main45105-12060iAE92,CE90,EE90..STD,XL198705-198908

main45105-12080iAE92..EFI198705-198908

main45105-12110×2iAE9#,CE90,EE90..STD,XL,XLI198908-199205

main45105-12120iAE92..GTI198908-199205

45124ORNAMENT, STEERING WHEEL MARK

main45124-12020-01iCE90,EE90..STD;CE90,EE90..RHD..XL198708-198908

BLACK,TRIM1#,8#

main45124-12020-02iCE90,EE90..RHD..(LB,SED)..XL198805-198908

MAROON,TRIM3#

main45124-12020-05iAE92,CE90,EE90..STD,XL198805-198908

DARK BEIGE,TRIM4#

main45124-12040iAE92,CE90,EE90..GL,GLI,XL,XLI198708-199205

main45124-12070iAE92..EFI198705-198908

main45124-12100-01iAE95..XL,XLI198710-198908

BLACK,TRIM1#,8#

main45124-12100-05iAE95..XL,XLI198710-198908

DARK BEIGE,TRIM4#

main45124-12110iAE95198710-199009

main45124-12130-01iAE92,CE90,EE90..STD,XL,XLI198908-199205

BLACK,TRIM1#,8#

main45124-12130-02iCE90,EE90..RHD..SED..XL198908-199205

MAROON,TRIM3#

main45124-12130-06iAE92,CE90,EE90..LHD..(LB,SED)..(XL,XLI)198908-199008

BROWN,TRIM4#

main45124-12150-01iAE95..XL,XLI198908-199009

BLACK,TRIM1#,8#

main45124-12150-06iAE95..XL,XLI198908-199009

BROWN,TRIM4#

main45124-12160iAE92..GTI198908-199205

45130BUTTON ASSY, HORN

main45130-12520-01iCE90,EE90..STD;CE90,EE90..RHD..XL198705-198908

BLACK,TRIM1#

sub45130-12360

main45130-12520-02iCE90,EE90..RHD..(LB,SED)..XL198705-198908

MAROON,TRIM3#

sub45130-12360

main45130-12520-05iAE92,CE90,EE90..STD,XL198705-198908

DARK BEIGE,TRIM4#

sub45130-12360

main45130-12530-01iCE90,EE90..RHD..XL198705-198905

3 SPOKE,BLACK,TRIM1#

main45130-12530-02iCE90,EE90..RHD..(LB,SED)..XL198705-198905

3 SPOKE,MAROON,TRIM3#

main45130-12530-05iAE92,CE90,EE90..XL198705-198905

3 SPOKE,DARK BEIGE,TRIM4#

main45130-12531iAE92,EE90..LHD..LB..GL198905-198908

sub45130-12391

main45130-12531-01iAE92,CE90,EE90..GL,GLI,XL,XLI198908-199205

BLACK,TRIM1#

sub45130-12391

main45130-12531-02iEE90..RHD..SED..GL198908-199205

3 SPOKE,MAROON,TRIM3#

sub45130-12391

main45130-12531-04iAE92,CE90,EE90..GL,GLI,XL,XLI198908-199205

DARK BLUE,TRIM8#

sub45130-12391

main45130-12531-05iAE92,CE90,EE90..XL198905-198908

DARK BEIGE,TRIM4#

sub45130-12391

main45130-12531-06iAE92,EE90..LHD..SED..(GL,GLI)199008-199205

3 SPOKE,BROWN,TRIM4#

sub45130-12391

main45130-12540-01iAE92..EFI198705-198908

BLACK,TRIM1#

main45130-12550-01iAE95..XL,XLI198710-198908

BLACK,TRIM1#,8#

main45130-12550-05iAE95..XL,XLI198710-198908

DARK BEIGE,TRIM4#

main45130-12560-01iAE95..RHD..WG;AE95..LHD..(GL,GLI)198710-198905

BLACK,TRIM1#,8#

main45130-12560-02iAE95..RHD..SED198710-198905

MAROON,TRIM3#

main45130-12560-05iAE95..XL,XLI198710-198905

3 SPOKE,DARK BEIGE,TRIM4#

main45130-12561-01iAE95198908-199009

BLACK,TRIM1#

sub45130-12501

main45130-12561-02iAE95..RHD..SED198908-199008

MAROON,TRIM3#

sub45130-12501

main45130-12561-04iAE95198908-199009

DARK BLUE,TRIM8#

sub45130-12501

main45130-12561-05iAE95..XL,XLI198905-198908

3 SPOKE,DARK BEIGE,TRIM4#

sub45130-12501

main45130-12561-06iAE95..XL,XLI198908-199009

3 SPOKE,BROWN,TRIM4#

sub45130-12501

main45130-12610-01iAE92,CE90,EE90..STD,XL,XLI198908-199205

BLACK,TRIM1#,8#

sub45130-12620

main45130-12610-02iCE90,EE90..RHD..SED..XL198908-199205

MAROON,TRIM3#

sub45130-12620

main45130-12610-06iAE92,CE90,EE90..LHD..SED..(XL,XLI)199008-199205

BROWN,TRIM4#

sub45130-12620

main45130-12650-01iAE95..XL,XLI198908-199009

BLACK,TRIM1#,8#

sub45130-12600

main45130-12650-06iAE95..XL,XLI198908-199009

BROWN,TRIM4#

sub45130-12600

main45130-12660-01iAE92..GTI198908-199205

BLACK,TRIM1#

sub45130-12630

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12040-01iAE9#,CE90,EE90..STD,XL,XLI198908-199205

BLACK,TRIM1#,8#

main45180-12040-02iCE90,EE90..RHD..SED..XL198908-199205

MAROON,TRIM3#

main45180-12040-06iAE95..XL,XLI;AE92,CE90,EE90..LHD..(LB,SED)..(XL,XLI)198908-199008

BROWN,TRIM4#

main45180-12060-01iAE92,CE90,EE90..LHD..(LB,SED)..XL198705-198710

BLACK,TRIM1#,8#

main45180-12060-02iCE90,EE90..RHD..(LB,SED)..XL198705-198908

MAROON,TRIM3#

main45180-12060-05iAE9#,CE90,EE90..STD,XL,XLI198705-198908

DARK BEIGE,TRIM4#

main45180-12070-01iEE90..RHD..GL;AE9#..RHD..(LB,SED)..CBR198710-198908

3 SPOKE,BLACK,TRIM1#

main45180-12070-02iCE90,EE90..RHD..SED..XL198908-199205

3 SPOKE,MAROON,TRIM3#

main45180-12070-05iAE9#,CE90,EE90..XL,XLI198705-198908

3 SPOKE,DARK BEIGE,TRIM4#

main45180-12070-06iAE9#,EE90..LHD..(LB,SED)..(GL,GLI)198908-199008

3 SPOKE,BROWN,TRIM4#

main45180-12080-01iAE92..EFI198705-198907

BLACK,TRIM1#

main45180-12080-C0iAE92..EFI198907-198908

BLACK,TRIM1#

main45180-12100-01iAE92..GTI198908-199205

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12086iAE9#,CE90;EE90..CBR;EE90..GLI,XLI;EE90..WG..STD..EFI198705-199205

9331915012

main93319-15012

9351014014

main93510-14014

9 parts on this diagram · 4 diagrams in section
