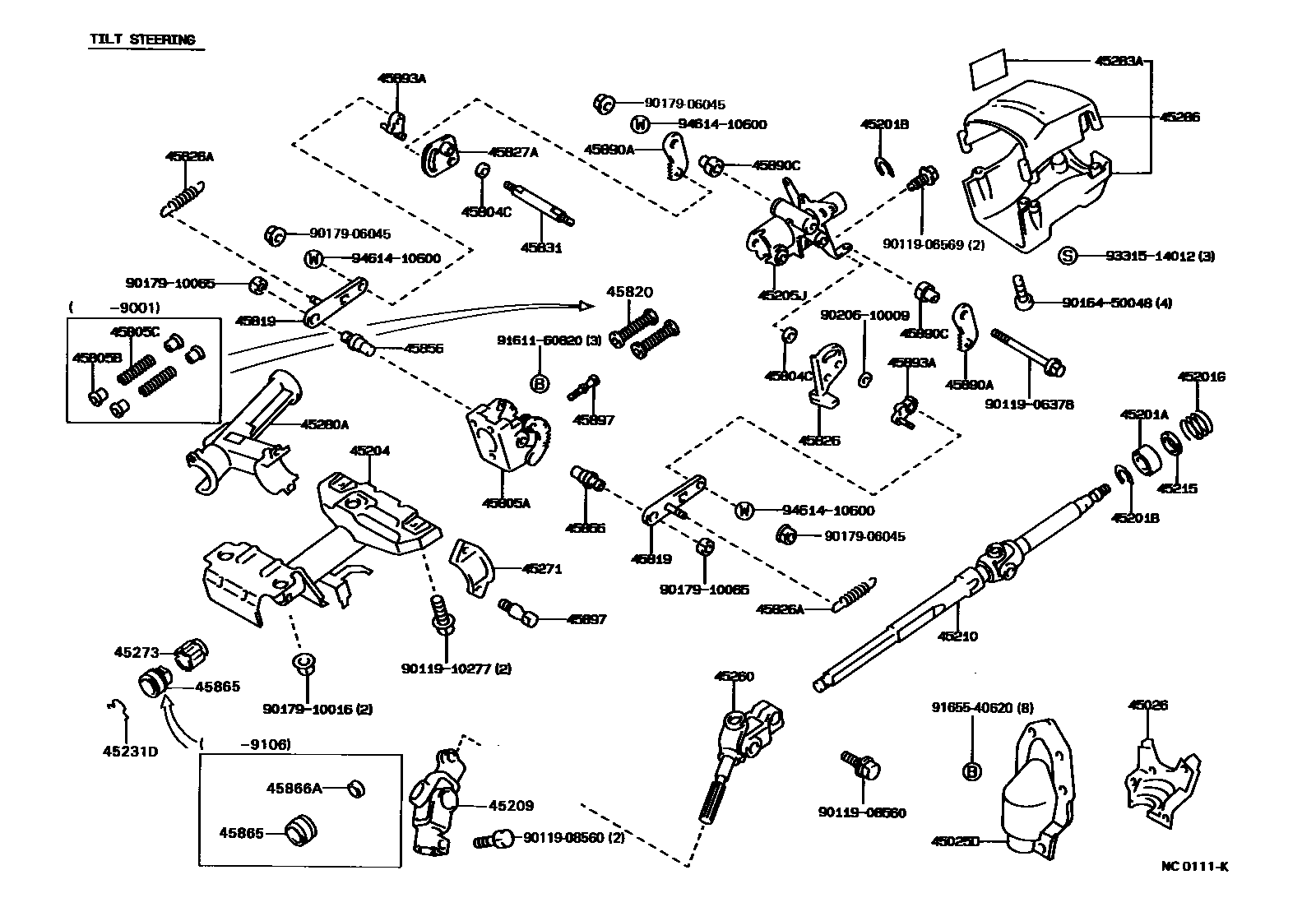

STEERING COLUMN & SHAFT

0001 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iAE95..RHD..WG;AE92,CE90,EE90..RHD198705-199205

main45025-12180iAE9#,CE90..RHD198705-199205

W(POWER STEERING)

main45025-12180iAE95..RHD..SED198908-199008

main45025-12190iAE9#,CE90,EE90..LHD198705-199205

main45025-12200iAE95..LHD..SED198908-199008

sub45025-12201

main45025-12200iAE9#,CE90..LHD..(GL,GLI,GTI,XL,XLI)198705-199205

W(POWER STEERING)

sub45025-12201

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE95..RHD..WG;AE92,CE90,EE90..RHD198705-199205

main45026-12020iAE9#,CE90..RHD198705-199205

W(POWER STEERING)

main45026-12020iAE95..RHD..SED198908-199008

main45026-12030iAE9#,CE90,EE90..LHD198705-199205

main45026-12040iAE95..LHD..SED198908-199008

main45026-12040iAE9#,CE90..LHD..(GL,GLI,GTI,XL,XLI)198705-199205

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198809

sub90363-18005

main90363-18005iAE9#,CE90,EE90198809-199205

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE9#,CE90,EE90198705-199205

T=1.20

main90520-17196iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198908

sub45204-12091

main45204-12091iEE90..CBR;EE90..XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198905-199006

sub45204-12092

sub45273-22020

main45204-12092iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI199006-199205

sub45204-12093

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAE9#,CE90,EE90..RHD198705-198809

sub45205-12251

main45205-12251iAE9#,CE90,EE90..RHD198809-199205

main45205-12260iCE90..SED..STD;AE9#,CE90,EE90..LHD..(GL,GLI,GTI,XL,XLI)198705-198809

sub45205-12261

main45205-12261iEE90..GLI,XLI;EE90..LHD..CBR;AE9#,CE90..LHD..(GL,GLI,GTI,XL,XLI)198809-199205

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE95..WG;EE90..CBR;AE92,CE90..GL,GLI,XL,XLI198705-199205

W(POWER STEERING)

main45209-12050iAE95..SED198908-199008

main45209-32010iAE95..WG;AE92,CE90,EE90198705-199205

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12310iAE9#,CE90,EE90..RHD..(CBR,DSL)198705-199205

main45210-12350iAE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)198705-199205

main45210-12400iEE90..STD..CBR198705-199205

W(TILT STEERING)

sub45210-12560

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iEE90..CBR;EE90..XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199006

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12160iAE9#,CE90..RHD..(CBR,DSL)198705-199205

W(TILT STEERING)

main45260-12180iAE92..RHD..EFI198705-199205

W(TILT STEERING & POEWR STEERING)

main45260-12180iAE92..RHD..EFI198705-198908

W(POWER STEERING)

main45260-12180iAE95..RHD..SED198908-199008

main45260-12200iAE9#,CE90..LHD..(GL,GLI,XL,XLI)198705-199205

W(TILT STEERING)

main45260-12220iAE92..LHD..GTI198705-199205

W(POWER STEERING)

main45260-12220iAE9#,CE90..LHD..(GL,GLI,XL,XLI)198705-199205

W(TILT STEERING & POEWR STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

main45271-12060iAE92..EFI198705-199205

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE92..RHD..EFI;AE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

main45273-22020iEE90..STD..CBR199006-199205

W(TILT STEERING)

main45273-22020iAE92..GTI;AE95..SED199006-199205

W(TILT STEERING & POWER STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAE95..WG;AE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

sub45280-12110

main45280-12120iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI198705-199205

W(TILT STEERING)

sub45280-12130

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAE9#,CE90,EE90..RHD198705-199205

45286COVER, STEERING COLUMN

main45286-12940-01iAE95..RHD..WG198710-199205

BLACK,TRIM1#,8#

sub45286-12940

main45286-12940-01iAE95..RHD..WG198708-198908

BLACK,TRIM1#

sub45286-12940

main45286-12940-02iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-199205

MAROON,TRIM3#

sub45286-12940

main45286-12940-05iAE9#,CE90,EE90..RHD..(CBR,DSL)198705-198908

BEIGE,TRIM4#

sub45286-12940

main45286-12941-01iCE90,EE90..STD198705-198908

BLACK,BLACK,TRIM1#

sub45286-12941

main45286-12941-01iAE92,CE90,EE90..LHD..(LB,SED)..(GL,XL)198705-199205

BLACK,TRIM1#,8#

sub45286-12941

main45286-12941-01iCE90,EE90..STD198705-198908

BLACK,TRIM1#

sub45286-12941

main45286-12941-05iAE9#,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)198705-198908

BEIGE,TRIM4#

sub45286-12941

main45286-12941-06iAE95..LHD..WG;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub45286-12941

main45286-12942-01iAE95..RHD..SED;AE92,CE90,EE90..RHD..(CBR,DSL)198710-199205

W(TILT STEERING),BLACK,TRIM1#,8#

sub45286-12942

main45286-12942-01iCE90,EE90..RHD..WG198708-198908

W(TILT STEERING),BLACK,TRIM1#

sub45286-12942

main45286-12942-01iAE95..RHD..SED198908-199008

BLACK,TRIM1#,8#

sub45286-12942

main45286-12942-01iAE95..RHD..WG198705-198908

BLACK,TRIM1#

sub45286-12942

main45286-12942-02iAE95..RHD..SED198908-199008

MAROON,TRIM3#

sub45286-12942

main45286-12942-02iCE90,EE90..RHD..SED198705-199205

W(TILT STEERING),MAROON,TRIM3#

sub45286-12942

main45286-12942-05iAE9#,CE90,EE90..RHD..(LB,WG)..(CBR,DSL)198705-198908

W(TILT STEERING),BEIGE,TRIM4#

sub45286-12942

main45286-12943-01iAE95..LHD..WG;EE90..GLI,XLI;EE90..LHD..CBR;AE92,CE90..LHD..(GL,GLI,XL,XLI)198705-199205

W(TILT STEERING),BLACK,TRIM1#,8#

sub45286-12943

main45286-12943-01iCE90..SED..STD198705-198908

W(TILT STEERING),BLACK,TRIM1#

sub45286-12943

main45286-12943-01iAE92..LHD..EFI198705-198710

BLACK,BLACK,TRIM1#

sub45286-12943

main45286-12943-01iAE92,CE90,EE90..LHD..WG..XL198708-199205

BLACK,TRIM1#

sub45286-12943

main45286-12943-01iAE95..LHD..SED198908-199205

BLACK,TRIM1#,8#

sub45286-12943

main45286-12943-05iCE90..SED..STD;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-198908

W(TILT STEERING),BEIGE,TRIM4#

sub45286-12943

main45286-12943-06iAE95..LHD..SED198908-199205

W(TILT STEERING),BROWN,TRIM4#

sub45286-12943

main45286-12943-06iAE95..LHD..WG;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198908-199008

BROWN,TRIM4#

sub45286-12943

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iEE90..CBR;EE90..XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199001

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199001

sub45820-12010

45819RETAINER, TILT LEVER

main45819-12010iAE92..RHD..EFI;CE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI198705-199106

sub45819-12020

main45819-12020iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI199001-199205

45826LEVER, STEERING TILT

main45826-12020iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

main45826-12021iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

45827ALEVER, STEERING TILT SUB

main45827-12010iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

main45827-12011iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199106

main45827-12020iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

45855BOLT, TILT STEERING, NO.1

main45855-12010iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199106

OD=9.989-9.998

main45855-12020iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199106

OD=9.998-10.007

main45855-12030iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

OD=9.989-9.998

main45855-12040iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE92..RHD..EFI;CE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI198705-199106

OD=9.989-9.998

main45856-12020iAE92..RHD..EFI;CE90..SED..STD;AE9#,CE90,EE90..GL,GLI,XL,XLI198705-199106

OD=9.998-10.007

main45856-12030iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

OD=9.989-9.998

main45856-12040iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iEE90..CBR;EE90..XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199106

sub45865-12060

main45865-12060iEE90..CBR;EE90..GLI,XLI;AE92,CE90..GL,GLI,GTI,XL,XLI199106-199205

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iEE90..CBR;EE90..XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199106

45890APAWL ASSY, TILT STEERING

main45890-12020iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

LH

sub45890-12H00

main45890-12021iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

LH

main45890-12030iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

RH

sub45890-12H00

main45890-12031iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 0

main90389-07005iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 2

main90389-07006iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 3

main90389-07007iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 4

main90389-07008iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

MARK A

main90389-07009iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 6

main90389-07010iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 7

main90389-07011iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198705-199205

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

LH

main45893-12021iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198905-199205

MARK A,LH

main45893-12070iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-198905

RH

main45893-12071iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK F OR 11,RH

main45893-12120iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK B,LH

main45893-12130iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198905-199205

MARK C,LH

main45893-12140iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198905-199205

MARK D,LH

main45893-12150iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK E,LH

main45893-12160iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK G OR 12,RH

main45893-12170iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK H OR 13,RH

main45893-12180iCE90..SED..STD;AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198905-199205

MARK I OR 14,RH

main45893-12190iEE90..CBR;EE90..GLI,XLI;AE9#,CE90..GL,GLI,GTI,XL,XLI198905-199205

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020iAE9#,CE90,EE90198705-199205

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910277

main90119-10277

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540620

main91655-40620

9331514012

main93315-14012

9461410600

main94614-10600

48 parts on this diagram · 2 diagrams in section
