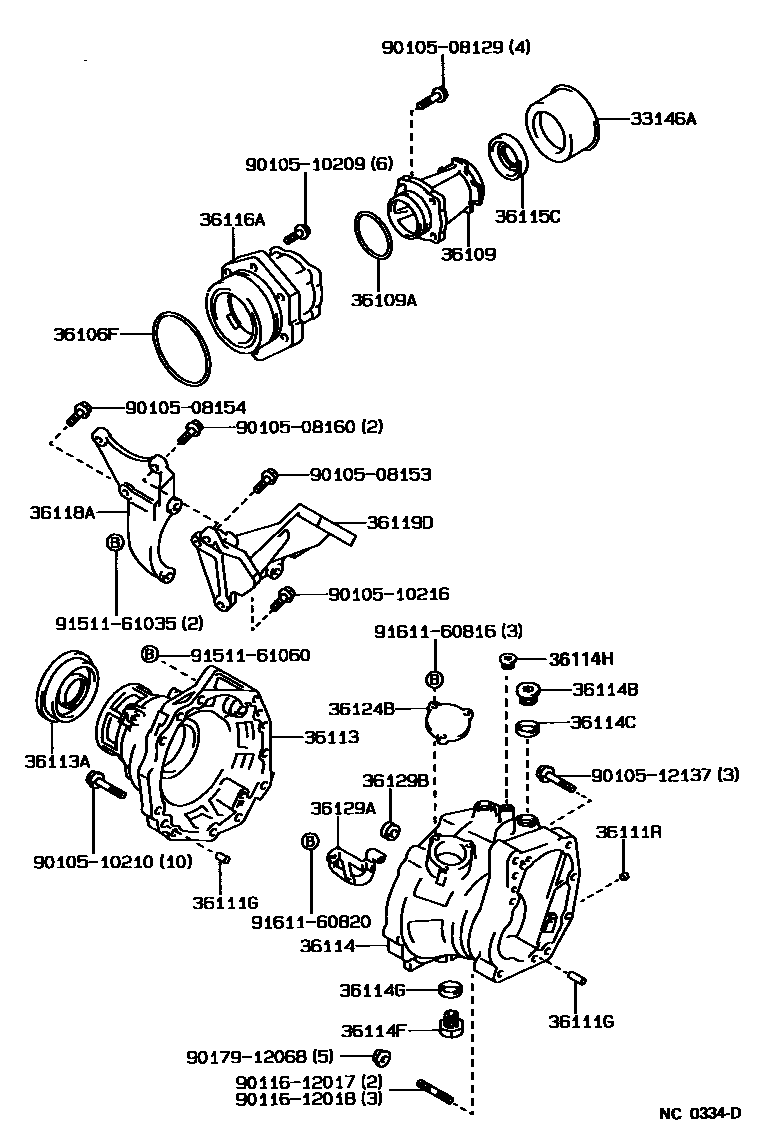

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
sub33146-30020
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=24,OD=12
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114CASE, TRANSFER, LH
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36116ACAGE, TRANSFER PINION BEARING
36118APLATE, TRANSFER STIFFENER, RH
W(POWER STEERING)
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
9010508129
main90105-08129
9010508153
main90105-08153
9010508154
main90105-08154
9010508160
main90105-08160
9010510209
main90105-10209
9010510210
main90105-10210
9010510216
main90105-10216
9010512137
main90105-12137
9011612017
main90116-12017
9011612018
main90116-12018
9017912068
main90179-12068
9151161035
main91511-61035
9151161060
main91511-61060
9161160816
main91611-60816
9161160820
main91611-60820
36 parts on this diagram · 1 diagram in section
