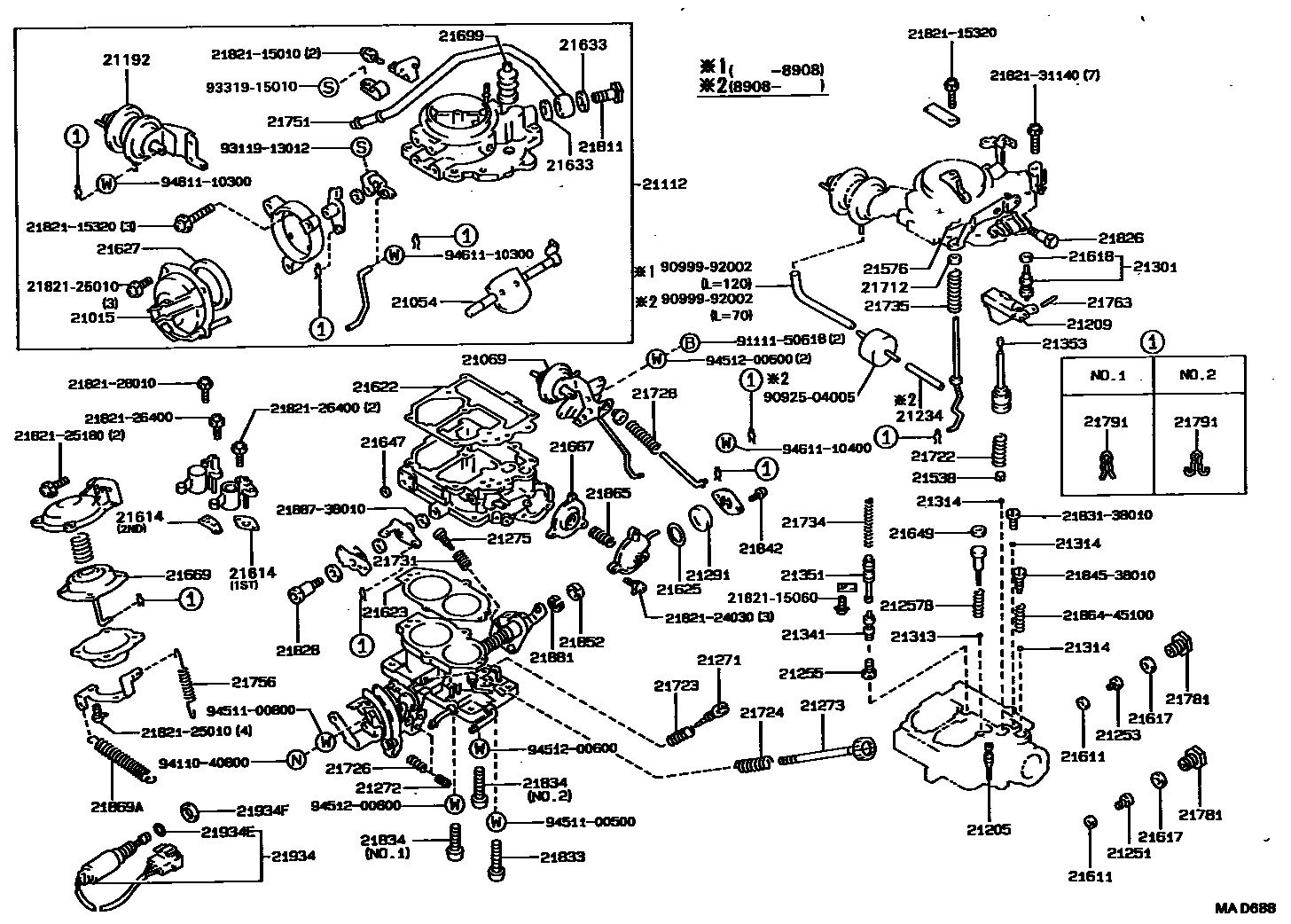

CARBURETOR
21054SHAFT, CHOKE
EX. EMISSION CONTROL(*77)
21069DASH POT SUB-ASSY
21112HORN, AIR
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(US'83)
21192BREAKER
NO.1
W(POWER STEERING),NO.2
NO.2
NO.2
21205JET SUB-ASSY, SLOW
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(US'83)
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(*77)
21253JET, 2ND MAIN
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(US'83)
21255JET, POWER
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(*77)
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(*77)
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
EX. EMISSION CONTROL(US'83)
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21341VALVE, POWER
21351PISTON, POWER
21538RETAINER, BALL CHECK
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21614GASKET, VENTURI
1ST
1ST
2ND
2ND
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
sub21627-28150
21633GASKET, UNION NIPPLE
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21669DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
21712BUSH, SLIDING ROD
sub21712-61020
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(*77)
21724SPRING, THROTTLE ADJUSTING
W(POWER STEERING)
NO.2
NO.1
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21734SPRING, POWER PISTON
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(US'83)
21735SPRING, PUMP ARM
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
EX. EMISSION CONTROL(US'83)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
EX. EMISSION CONTROL(*77),NO.2
NO.2
EX.EMISSION CONTROL(US'83),NO.2
EX.EMISSION CONTROL(*77),NO.2
sub21791-13011
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
NO.2
NO.1
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21865SPRING
21869ASPRING(FOR THROTTLE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
EX. EMISSION CONTROL(US'83)
EX. EMISSION CONTROL(*77)
sub21062-11381
EX. EMISSION CONTROL(*77)
sub21062-11434
EX. EMISSION CONTROL(*77)
sub21062-11501
EX. EMISSION CONTROL(US'83)
W(POWER STEERING)
sub21062-14090
sub21062-16301
NO.1
NO.2
21934ERING, O(FOR SOLENOID VALVE)
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(*77 OR US'83)
EX. EMISSION CONTROL(US'83)
21934FGASKET
EX. EMISSION CONTROL(*77)
EX. EMISSION CONTROL(*77 OR US'83)
EX. EMISSION CONTROL(US'83)
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2183138010SCREW, POWER PISTON STOP
main21831-38010
2184538010SCREW(FOR LEVER SET)
main21845-38010
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9092504005
main90925-04005
9099992002
main90999-92002
9111150618
main91111-50618
9311913012
main93119-13012
9331915010
main93319-15010
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
91 parts on this diagram · 6 diagrams in section
