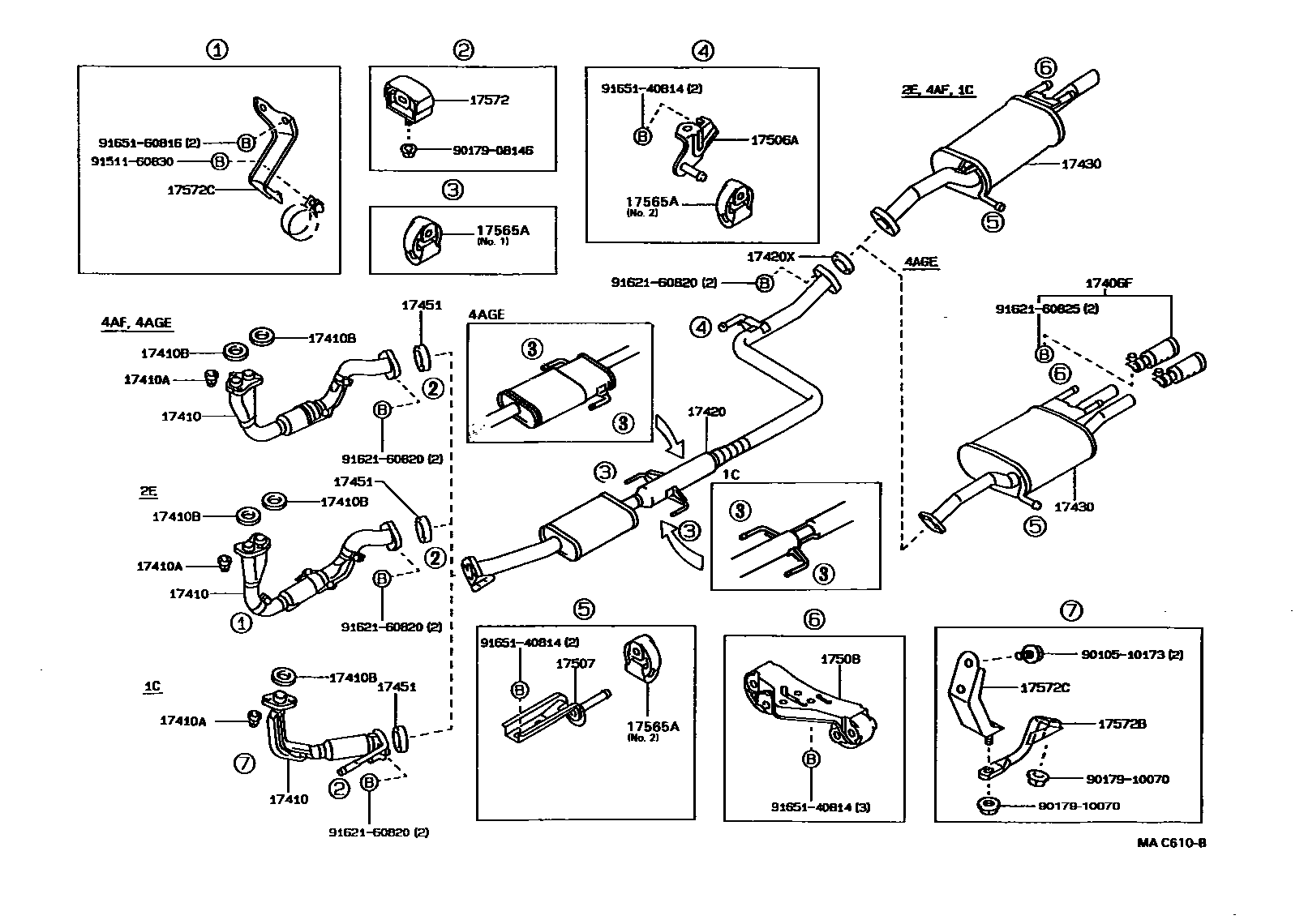

EXHAUST PIPE

0001 1 0002 1EX.EMISSION CONT.=PHASE C/ANN0003 1EXHAUST EMISSION CONTROL(US'80004 1EXHAUST EMISSION CONTROL(US'80005 1 0006 1EX.EMISSION CONT.=PHASE C/ANN0007 1

17406FDIFFUSER SUB-ASSY, EXHAUST GAS

main17406-19015i4AGE..AE92¥4,180198705-198908

main17406-19025i4AGE..AE92¥4,120198908-199205

17410PIPE ASSY, EXHAUST, FRONT

main17410-11280i2E..EE90¥11,600198705-199205

main17410-11290i2E..EE90..LHD..MTM198705-198911

EX. EMISSION CONTROL(*77)

main17410-11300i2EE..EE90198908-199012

sub17410-11301¥21,600

main17410-11300i2E..EE90..LHD..MTM198705-198908

EX. EMISSION CONTROL(US'83)

sub17410-11301¥21,600

main17410-11301i2EE..EE90¥21,600199012-199205

main17410-16370i4AGE..AE92..LHD198705-198908

EX. EMISSION CONTROL(US'83)

main17410-16410i4AGE..AE92198705-198908

sub17410-16700¥21,600

main17410-16420i4AF..AE92¥30,300198705-199205

main17410-16440i4AF..AE92..LHD..5F¥21,900198705-198911

EX. EMISSION CONTROL(*77)

main17410-16450i4AF..AE92..LHD¥38,700198705-198908

EX. EMISSION CONTROL(US'83)

main17410-16560i4AF..AE95198710-199004

sub17410-16561¥21,600

main17410-16561i4AF..AE95¥21,600199004-199009

main17410-16570i4AF..AE95..LHD..SED¥30,100198710-198911

EX. EMISSION CONTROL(*77)

main17410-16570i4AFE..AE95¥30,100198710-199009

main17410-16680i4AGE..AE92¥23,500198908-199205

EX. EMISSION CONTROL(US'83)

main17410-16700i4AGE..AE92¥21,600198908-199205

main17410-16710i4AFE..AE92¥21,600198908-199205

main17410-64270i1C..CE90¥29,700198705-199205

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AFE..AE95;4AF,4AGE,2E..AE92,EE90¥120198705-199205

main90179-10070i4AF..AE95..LHD..SED¥120198710-198908

EX. EMISSION CONTROL(*77)

17410BGASKET, EXHAUST PIPE

main90917-06001i4AF..AE92;4AFE..AE95¥450198705-198903

sub90917-06038¥260

main90917-06001i4AF..AE95..LHD..SED¥450198710-198903

EX. EMISSION CONTROL(*77)

sub90917-06038¥260

main90917-06004i4AGE..AE92¥390198705-198903

sub90917-06039¥240

main90917-06006i2E..EE90¥330198705-198903

sub90917-06037¥440

main90917-06037i2E#..EE90¥440198903-199205

main90917-06038i4AF..AE92;4AFE..AE95¥260198903-198908

EX. EMISSION CONTROL(*77)

main90917-06038i4AF#..AE9#¥260198908-199111

main90917-06039i1C..CE90¥240198903-199205

main90917-06064i4AF#..AE92¥540199111-199205

17420PIPE ASSY, EXHAUST, CENTER

main17420-11060i2E..EE90¥26,600198705-198905

sub17420-11061¥34,700

main17420-11061i2E..EE90¥34,700198905-198908

main17420-11070i2E..EE90..LHD..MTM¥12,800198705-198908

EX. EMISSION CONTROL(*77)

main17420-11080i2E..EE90..LHD..MTM¥12,800198705-198908

EX. EMISSION CONTROL(US'83)

main17420-11110i2E..EE90¥43,500198908-199205

main17420-11120i2E..EE90..LHD..MTM¥24,100198908-198911

EX. EMISSION CONTROL(*77)

main17420-16100i4AGE..AE92..LHD¥26,600198705-198908

EX. EMISSION CONTROL(US'83)

main17420-16120i4AF..AE92..LHD198705-198908

EX. EMISSION CONTROL(US'83)

main17420-16130i4AF..AE92..LHD..5F198705-198905

EX. EMISSION CONTROL(*77)

sub17420-16330¥25,700

main17420-16140i4AGE..AE92¥32,000198705-198908

main17420-16150i4AF..AE92¥31,900198705-198908

main17420-16190i4AFE..AE95¥28,200198710-198905

EX. EMISSION CONTROL(*77)

sub17420-16191¥33,400

main17420-16191i4AFE..AE95¥33,400198908-199009

main17420-16191i4AF..AE95..LHD..SED¥33,400198908-198911

EX. EMISSION CONTROL(*77)

main17420-16240i4AF..AE95¥36,100198710-198905

sub17420-16241¥36,200

main17420-16241i4AF..AE95¥36,200198908-199004

sub17420-16242¥46,700

main17420-16242i4AF..AE95¥46,700199004-199009

main17420-16330i4AF..AE92..LHD..5F¥25,700198905-198908

EX. EMISSION CONTROL(*77)

sub17420-16340¥24,100

main17420-16340i4AFE,2EE..AE92,EE90¥24,100198908-199205

main17420-16340i4AF..AE92..LHD..5F¥24,100198908-198911

EX. EMISSION CONTROL(*77)

main17420-16390i4AF..AE92¥43,500198908-199205

main17420-16420i4AGE..AE92¥31,800198908-199205

EX. EMISSION CONTROL(US'83)

main17420-16430i4AGE..AE92¥35,100198908-199205

main17420-64090i1C..CE90¥33,400198705-198905

sub17420-64091¥39,900

main17420-64091i1C..CE90¥39,900198908-199205

sub17420-64101¥40,200

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i2E..EE90¥450198705-198903

sub90917-06038¥260

main90917-06004i4AF#,1C..AE9#,CE90¥390198705-198903

sub90917-06039¥240

main90917-06012i4AGE..AE92¥670198705-198903

sub90917-06045¥580

main90917-06038i2E..EE90¥260198903-199111

main90917-06039i4AF#,1C,2EE..AE9#,CE90,EE90¥240198903-199205

main90917-06045i4AGE..AE92¥580199104-199205

main90917-06047i4AGE..AE92¥550198903-199104

sub90917-06045¥580

main90917-06060i2E..EE90¥330199111-199205

17430PIPE ASSY, EXHAUST, TAIL

main17430-11190i2E..EE90..LB,SED¥24,100198705-198908

sub17430-11260¥24,100

main17430-11210i2E..EE90..WG¥24,400198708-198908

sub17430-11240¥24,600

main17430-11240i2E..EE90..LHD..WG¥24,600198708-198908

EX. EMISSION CONTROL(*77 OR US'83)

main17430-11260i2E..EE90..LHD..(LB,SED)..MTM¥24,100198705-198908

EX. EMISSION CONTROL(*77 OR US'83)

main17430-11340i2E..EE90..LB,SED¥24,100198908-199205

main17430-11360i2E..EE90..WG¥24,900198908-199205

main17430-16350i4AGE..AE92..LHD¥28,300198705-198908

EX. EMISSION CONTROL(US'83)

main17430-16390i4AGE..AE92¥28,600198705-198908

main17430-16411i4AF..AE92..WG¥27,400198708-198908

EX. EMISSION CONTROL(*77 OR US'83)

sub17430-16740¥27,900

main17430-16430i4AF..AE92..LB,SED¥27,400198705-198908

main17430-16460i4AF..AE92..LHD..3FC198705-198902

EX. EMISSION CONTROL(US'83)

sub17430-16880¥26,800

main17430-16460i4AF..AE92..LHD..3FC198705-198902

EX. EMISSION CONTROL(*77 OR US'83)

sub17430-16880¥26,800

main17430-16490i4AF..AE92..WG¥26,800198708-198908

main17430-16530i4AFE..AE95..WG198802-198908

sub17430-16531¥26,900

main17430-16531i4AFE..AE95..WG¥26,900198908-199006

sub17430-16542¥30,100

main17430-16542i4AFE..AE95..WG¥30,100199006-199009

main17430-16550i4AF..AE95..SED¥24,900198710-198905

sub17430-16551¥35,600

main17430-16551i4AF..AE95..SED¥35,600198908-199006

main17430-16552i4AF..AE95..SED¥32,500199006-199008

sub17430-16551¥35,600

main17430-16560i4AF..AE95..WG¥24,900198802-198905

sub17430-16561¥32,500

main17430-16561i4AF..AE95..WG¥32,500198908-199006

sub17430-16870¥32,300

main17430-16570i4AF..AE95..LHD..SED¥24,900198710-198905

EX. EMISSION CONTROL(*77)

sub17430-16571¥32,500

main17430-16571i4AF..AE95..LHD..SED¥32,500198908-198911

EX. EMISSION CONTROL(*77)

sub17430-16572¥32,800

main17430-16571i4AFE..AE95..SED¥32,500198908-199006

sub17430-16572¥32,800

main17430-16572i4AFE..AE95..SED¥32,800199006-199008

main17430-16700i4AGE..AE92¥34,000198908-199205

EX. EMISSION CONTROL(US'83)

main17430-16740i4AFE,2EE..AE92,EE90..WG¥27,900198908-199205

main17430-16740i4AF..AE92..WG¥27,900198908-198911

EX. EMISSION CONTROL(*77)

main17430-16790i4AFE,2EE..AE92,EE90..LB,SED¥25,100198908-199205

sub17430-1A370¥25,100

main17430-16790i4AF..AE92..LHD..(LB,SED)..5F¥25,100198908-198911

EX. EMISSION CONTROL(*77)

sub17430-1A370¥25,100

main17430-16810i4AGE..AE92¥34,000198908-199205

main17430-16840i1C..CE90..LB,SED¥30,000198908-199205

main17430-16870i4AF..AE95..WG¥32,300199006-199009

main17430-16880i4AF..AE92..LHD..(LB,SED)..5F¥26,800198902-198908

EX. EMISSION CONTROL(US'83)

main17430-16880i4AF..AE92..LHD..3FC¥26,800198902-198908

EX. EMISSION CONTROL(*77 OR US'83)

main17430-1A020i1C..CE90..WG¥26,600198908-199205

main17430-1A110i4AF..AE92..LB,SED¥28,900198908-199205

main17430-1A130i4AF..AE92..WG198908-199205

main17430-64270i1C..CE90..WG198708-198908

main17430-64450i1C..CE90..LB,SED¥25,100198705-198908

17451GASKET, EXHAUST PIPE

main90917-06004i4AF,1C,2E..AE9#,CE90,EE90¥390198705-198903

FR

sub90917-06039¥240

main90917-06005i4AF#..AE95..LHD¥350198710-198711

CTR & RR

sub90917-06042¥570

main90917-06012i4AGE..AE92..LHD¥670198705-198903

EX. EMISSION CONTROL(US'83)

sub90917-06045¥580

main90917-06012i4AGE..AE92¥670198705-198903

RR

sub90917-06045¥580

main90917-06020i4AF..AE92..LHD;2E..EE90..LHD..MTM¥870198705-198903

FR

sub90917-06044¥630

main90917-06023i4AFE..AE95¥660198711-198903

CTR

sub90917-06041¥570

main90917-06039i4AF,1C,2E..AE9#,CE90,EE90¥240198903-199205

main90917-06039i4AFE..AE95;4AF..AE95..LHD..SED¥240198903-199205

FR

main90917-06041i4AFE..AE95¥570198903-198908

CTR

main90917-06041i4AFE..AE92¥570198903-199205

FR

main90917-06044i4AF..AE92..LHD;2E..EE90..LHD..MTM¥630198903-199205

FR

main90917-06045i4AGE..AE92¥580199104-199205

EX. EMISSION CONTROL(US'83)

main90917-06045i4AFE..AE95¥580198711-199205

RR

main90917-06045i4AFE..AE95¥580198711-198903

CTR & RR

main90917-06047i4AF..AE92..LHD;4AFE,2E..AE95,EE90..LHD..MTM¥550198903-198908

CTR & RR

sub90917-06045¥580

main90917-06047i4AF..AE95..LHD..SED¥550198903-199104

RR

sub90917-06045¥580

main90917-06047i4AGE..AE92..LHD¥550198903-199104

EX. EMISSION CONTROL(US'83)

sub90917-06045¥580

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-15050i4AF#,4AGE,1C,2E#..AE92,CE90,EE90¥1,090198705-199205

main17506-16040i4AF#..AE95¥1,540198710-199009

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-15030i4AF#,4AGE,1C,2E#..AE92,CE90,EE90¥1,340198705-199205

main17507-16020i4AF#..AE95¥1,090198710-199009

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-15030i4AF#,4AGE,1C,2E#..AE92,CE90,EE90¥2,160198705-199205

main17508-16040i4AF#..AE95¥1,320198710-199009

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-15050i4AF#,1C,2E#..AE92,CE90,EE90¥1,790198705-199205

NO.2

main17565-15070i4AF#,1C,2E#..AE92,CE90,EE90¥1,790198705-199205

NO.1

main17565-63030i4AF#..AE95¥840198710-199009

NO.2

main17565-63071i4AF..AE95¥790198710-199009

NO.1

main17565-63071i4AF..AE95¥790198710-198802

EX. EMISSION CONTROL(*77),NO.1

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-15050i4AF#,4AGE,1C,2E#..AE9#,CE90,EE90¥1,690198705-199205

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-64120i1C..CE90¥1,080198705-199205

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-11110i2E#..EE90¥980198705-199205

main17571-64130i1C..CE90¥1,410198705-198908

9010510173

main90105-10173¥190

9017908146

main90179-08146¥180

9017910070

main90179-10070¥120

9151160830

main91511-60830¥270

9162160820

main91621-60820¥130

9162160825

main91621-60825¥130

9165140814

main91651-40814¥180

9165160816

main91651-60816¥100

23 parts on this diagram · 7 diagrams in section
