V-BELT

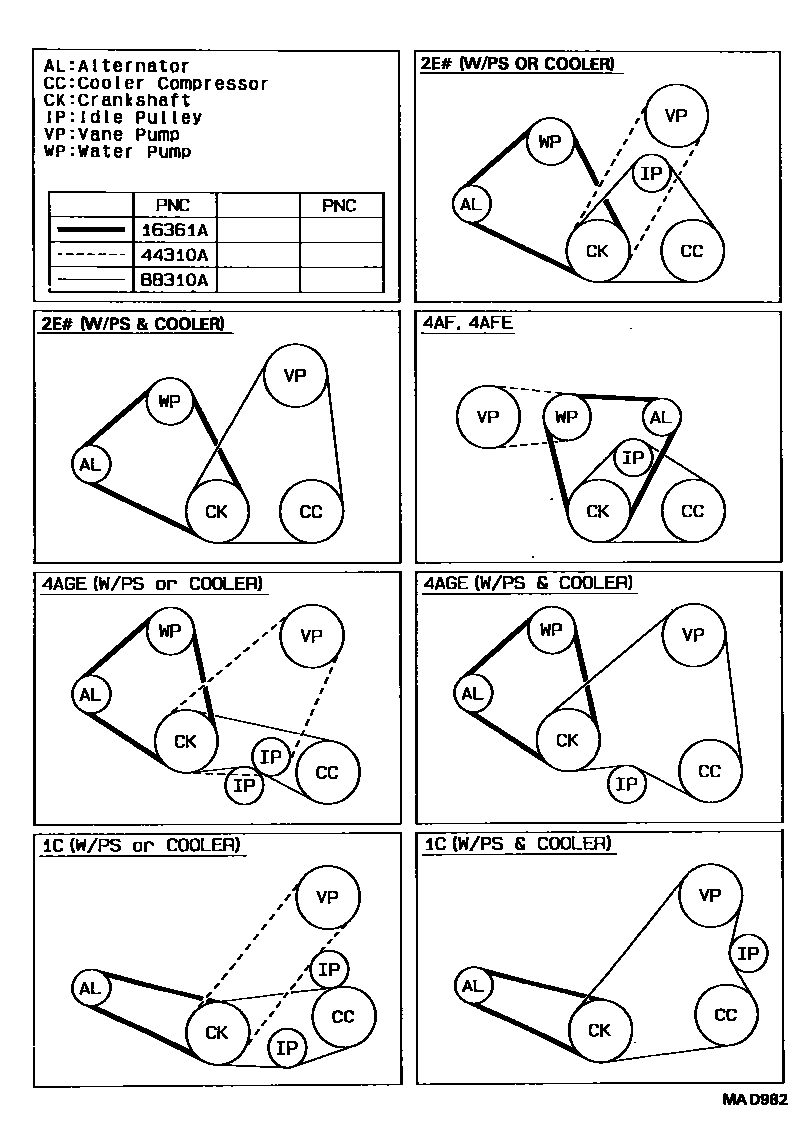

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02135i198705-199007
sub90916-02332
main90916-02140i198705-198908
main90916-02148i198705-199205
main90916-02237i198908-198912
main90916-02301i198912-199205
main90916-02332i199007-199205
main90916-02341i199103-199205
sub99364-20820
main99365-00970i198705-199005
sub99365-20970
main99365-20970i199005-199205
main99365-50820i198802-198805
sub99365-80820
44310ABELT, V(FOR VANE PUMP)
main90916-02207i198711-198908
sub99365-81120
main90916-02256i198908-199205
L=1110
sub99365-81110
main99363-50630i198705-199205
sub99363-80630
main99365-50920i198705-199205
sub99365-80920
main99365-51120i198705-198711
sub99365-81120
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main90916-02203i198908-199106
W(POWER STEERING)
sub99365-21210
main90916-02203i198712-198908
ANTI-PROJECT MEASURE COUNTRIES & W(POWER STEERING)
sub99365-21210
main90916-02246i198908-199106
sub99365-21140
main99364-00860i198805-198908
L=860,ANTI-PROJECT MEASURE COUNTRIES,MITSUBOSHI
sub90916-02354
main99364-00860i198908-199106
L=860,MITSUBOSHI
sub90916-02354
main99364-20860i199106-199110
L=860,W(LOW PULLY RATIO),MITSUBOSHI
sub99364-80860
main99364-20860i199110-199205
L=860,W(LOW PULLEY RATIO),MITSUBOSHI
sub99364-80860
main99364-50830i198805-198908
ANTI-PROJECT MEASURE COUNTRIES,BANDO
sub99364-80830
main99364-50830i198705-198805
ANTI-PROJECT MEASURE COUNTRIES
sub99364-80830
main99364-50830i198908-199106
BANDO
sub99364-80830
main99364-70830i199106-199205
L=830
sub99364-80830
main99364-70860i199110-199205
W(LOW PULLEY RATIO),BANDO
sub99364-80860
main99364-70860i199106-199110
W(LOW PULLY RATIO),BANDO
sub99364-80860
main99365-00880i198810-198908
ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER),MITUBOSI
sub99365-20880
main99365-00880i198908-199106
W(AIR CONDITIONER),MITUBOSI
sub99365-20880
main99365-20880i199106-199205
L=880,W(AIR CONDITIONER),MITUBOSI
main99365-21050i199106-199205
L=1050,W(POWER STEERING) & W(LOW PULLEY RATIO),MITUBOSI
main99365-21070i199106-199205
L=1070,W(POWER STEERING) & W(AIR CONDITIONER),MITUBOSI
main99365-21140i199106-199205
MITUBOSHI
sub99365-31140
main99365-21210i199106-199205
L=1210,W(POWER STEERING)
sub99365-31210
main99365-50790i198705-198908
ANTI-PROJECT MEASURE COUNTRIES
main99365-50860i198705-198805
ANTI-PROJECT MEASURE COUNTRIES
sub99365-70860
main99365-50860i198805-198810
ANTI-PROJECT MEASURE COUNTRIES & W(LOW PULLEY RATIO),BANDO
sub99365-70860
main99365-50870i198908-199106
W(LOW PULLEY RATIO),BANDO
sub99365-20870
main99365-50870i198805-198908
ANTI-PROJECT MEASURE COUNTRIES & W(LOW PULLEY RATIO),BANDO
sub99365-20870
main99365-50880i198810-198908
ANTI-PROJECT MEASURE COUNTRIES & W(AIR CONDITIONE),BANDO
sub99365-20880
main99365-50880i198908-199106
W(AIR CONDITIONER),BANDO
sub99365-20880
main99365-51050i198908-199106
W(POWER STEERING) & W(LOW PULLEY RATIO),BANDO
sub99365-21050
main99365-51070i198908-199106
W(POWER STEERING) & W(AIR CONDITIONER),BANDO
sub99365-21070
main99365-51210i198705-198712
ANTI-PROJECT MEASURE COUNTRIES & W(POWER STEERING)
sub99365-21210
main99365-70870i199106-199205
W(LOW PULLEY RATIO),BANDO
sub99365-20870
main99365-70880i199106-199205
W(AIR CONDITIONER),BANDO
sub99365-20880
main99365-71050i199106-199205
W(POWER STEERING) & W(LOW PULLEY RATIO),BANDO
sub99365-81050
main99365-71070i199106-199205
W(POWER STEERING) & W(AIR CONDITIONER),BANDO
sub99365-81070
main99365-71140i199106-199205
BANDO
sub99365-21140

3 parts on this diagram · 1 diagram in section
