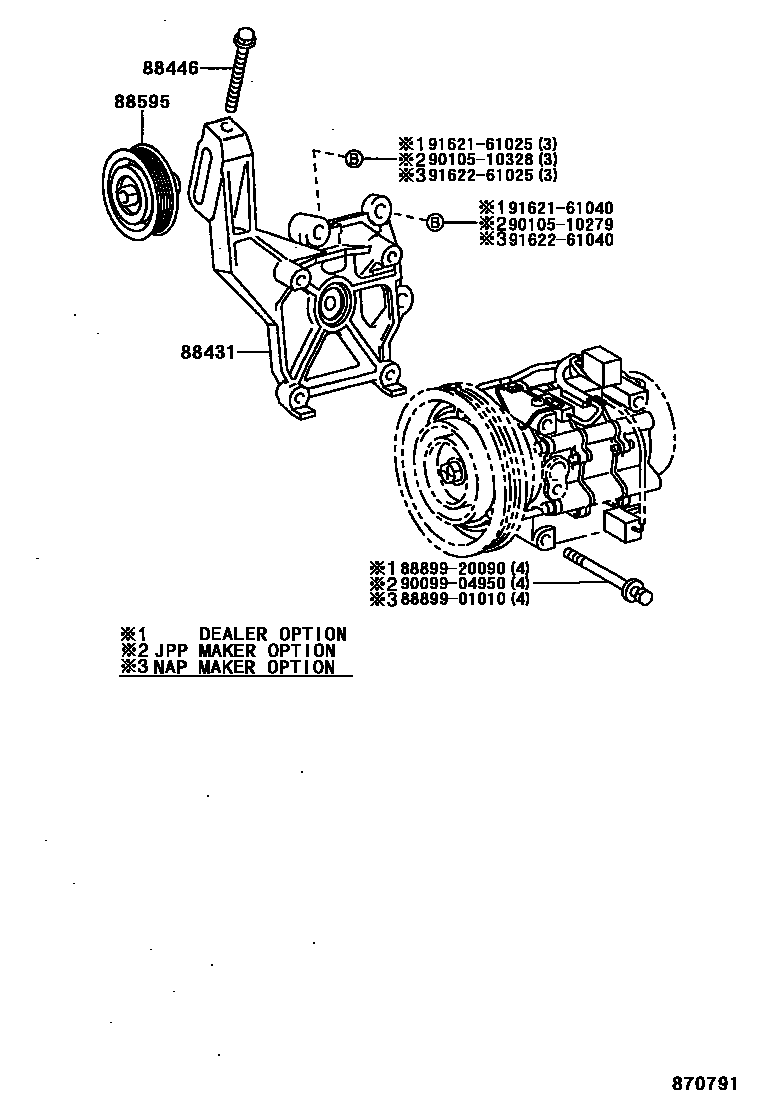

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12520iAE10#..JPP..SED..CND199308-199401

CHILE SPEC

main88431-12520iAE10#..JPP199206-199308

main88431-12520iAE102..JPP..SED..CND199401

BRAZIL SPEC

main88431-12550iAE10#..JPP199308

88446BOLT, IDLE PULLEY

main88446-12030iAE10#..JPP199206

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iAE10#..JPP199206

8889901010COVER, EVAPORATOR

main88899-01010

8889920090COVER, EVAPORATOR

main88899-20090

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

9162261025

main91622-61025

9162261040

main91622-61040

12 parts on this diagram · 3 diagrams in section
