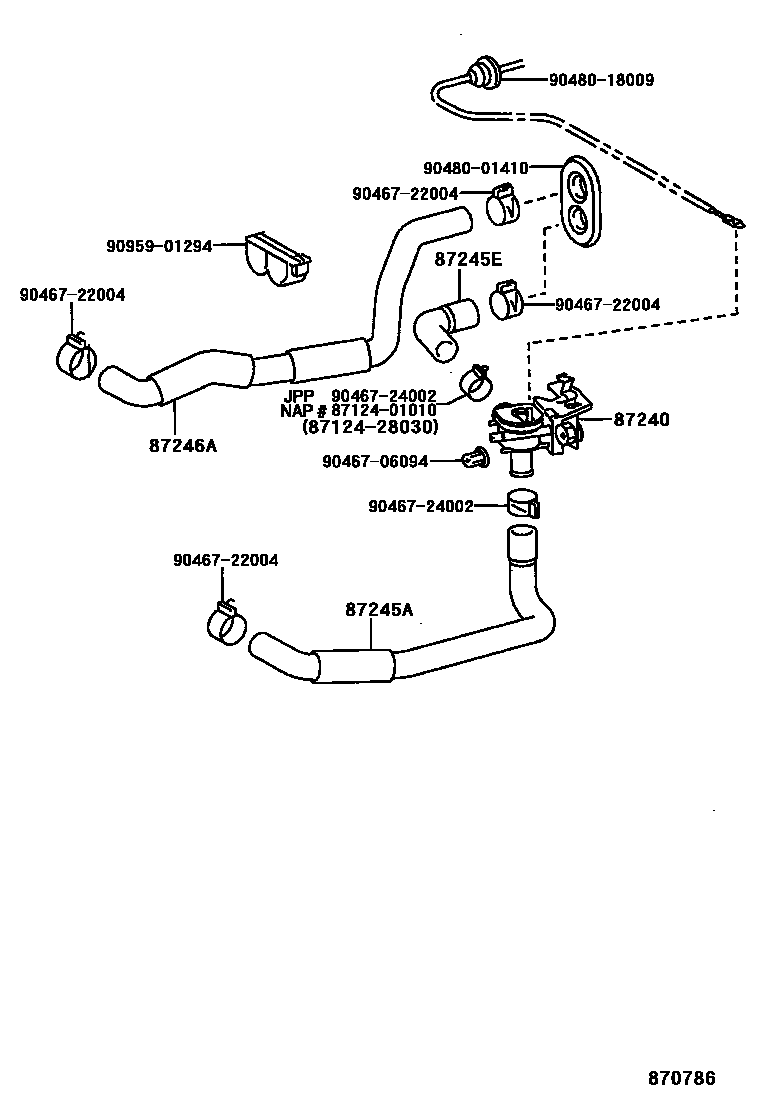

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-12260iAE10#..JPP¥3,080199206

87245AHOSE, HEATER WATER, INLET A

main87245-1A570iAE10#..JPP¥2,100199206

87245EHOSE, HEATER WATER, INLET E

main87245-1A530iAE10#..JPP¥700199206

87246AHOSE, HEATER WATER, OUTLET A

main87245-1A580iAE10#..JPP¥2,410199206-199503

sub87245-1A581¥2,400

main87245-1A581iAE10#..JPP¥2,400199503

8712401010CLAMP, HEATER

main87124-01010

9046706094

main90467-06094¥130

9046722004

main90467-22004¥330

9046724002

main90467-24002¥240

9048001410

main90480-01410

9048018009

main90480-18009¥190

9095901294

main90959-01294¥0

11 parts on this diagram · 1 diagram in section
