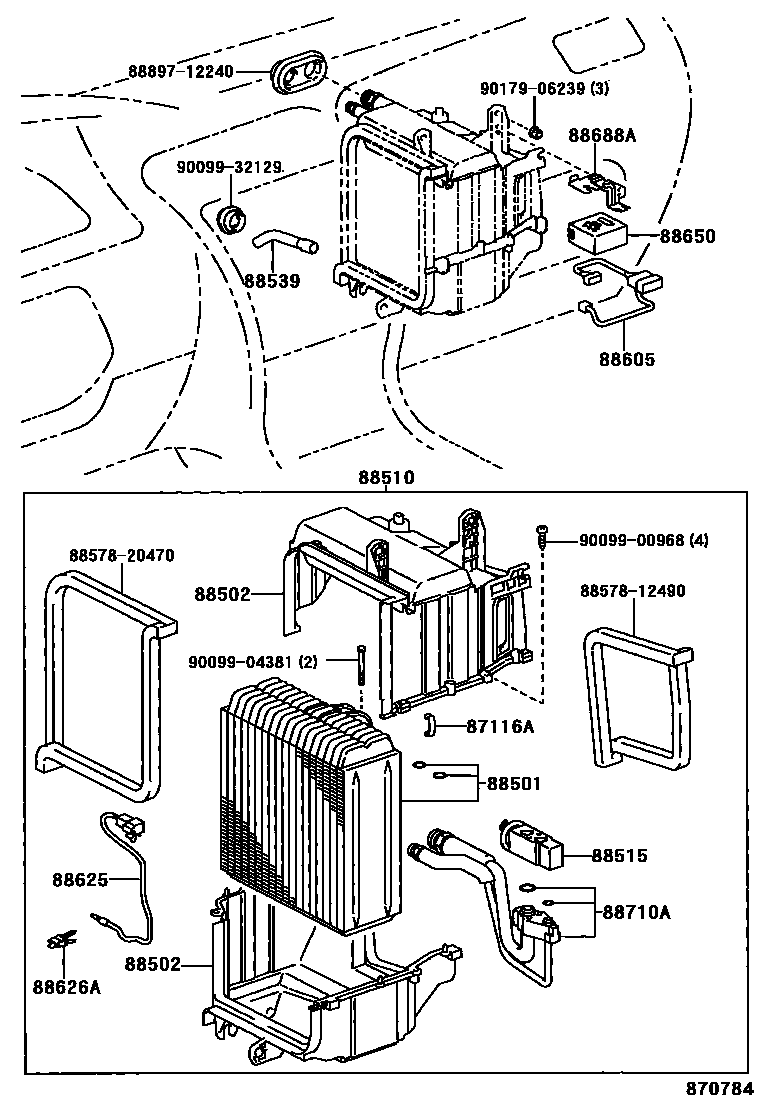

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAE10#..JPP199206

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02021iAE10#..JPP..(D,N)199504-199508

(L)

main88501-12370iAE10#..JPP199206-199308

main88501-12400iAE102..JPP..SED..CND199401-199503

BRAZIL SPEC

sub88501-12401

main88501-12400iAE10#..JPP..SED..CND199305-199401

CHILE SPEC

sub88501-12401

main88501-12401iAE102..JPP..SED..CND199503

BRAZIL SPEC

main88501-12410iAE10#..JPP199308-199503

sub88501-12411

main88501-12411iAE10#..JPP199503

(J)

88502CASE SUB-ASSY, COOLING UNIT

main88502-02011iAE102..JPP..E199503-199508

UPPER

main88502-02011iAE10#..JPP..(D,N)199503

(L),UPPER

main88502-02021iAE102..JPP..E199503-199508

LOWER

main88502-02021iAE10#..JPP..(D,N)199503

(L),LOWER

main88502-12210iAE10#..JPP..(D,N)199206

(J),UPPER

main88502-12220iAE10#..JPP..(D,N)199206

(J),LOWER

88510UNIT ASSY, COOLER

main88510-02041iAE10#..JPP199503

MAKER OPTION,(L)

sub88510-1A241

main88510-1A110iAE102..JPP..E199206-199308

MAKER OPTION

sub88510-1A100

sub88605-1H570

sub88650-1A450

sub88688-1A660

main88510-1A120iAE10#..JPP..(D,N)199206-199308

DEALER OPTION

main88510-1A240iAE10#..JPP199308-199503

MAKER OPTION

sub88510-1A241

main88510-1A241iAE10#..JPP199503

MAKER OPTION,(J)

main88510-1A310iAE102..JPP..SED..CND199401

BRAZIL SPEC

main88510-1A310iAE10#..JPP..SED..CND199305-199401

CHILE SPEC

main88510-1A320iAE10#..JPP199308

DEALER OPTION

sub88510-1A241

88515VALVE, COOLER EXPANSION

main88515-14062iAE10#..JPP¥10,500199206-199308

sub88515-33010¥10,300

main88515-20100iAE10#..JPP..SED..CND¥10,300199305-199308

CHILE SPEC

sub88515-22240¥10,200

main88515-20100iAE10#..JPP¥10,300199308

sub88515-22240¥10,200

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12120iAE10#..JPP199206-199503

main88539-12160iAE10#..JPP199503-199704

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1E840iAE102..JPP..E199206-199308

MAKER OPTION

main88605-1H570iAE10#..JPP..(D,N)199206-199308

DEALER OPTION

main88605-1H570iAE10#..JPP199308

88625THERMISTOR, COOLER, NO.1

main88625-12280iAE10#..JPP199206

88626AHOLDER, THERMISTOR

main88626-28010iAE10#..JPP199206

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-1A450iAE10#..JPP199206

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-1A290iAE10#..JPP..(D,N)199206

DEALER OPTION

main88688-1A660iAE10#..JPP199206

MAKER OPTION

88710ATUBE ASSY, AIR CONDITIONER

main88710-12250iAE10#..JPP¥9,300199206-199308

main88710-12340iAE10#..JPP..SED..CND¥10,700199305-199308

CHILE SPEC

main88710-12340iAE10#..JPP¥10,700199308

8857812490PAKING, COOLER AIR DUCT

main88578-12490

8857820470PAKING, COOLER AIR DUCT

main88578-20470

8889712240VALVE, COOLER MAGNET

main88897-12240

9009900968

main90099-00968

9009904381

main90099-04381

9009932129

main90099-32129

9017906239

main90179-06239¥140

19 parts on this diagram · 3 diagrams in section
