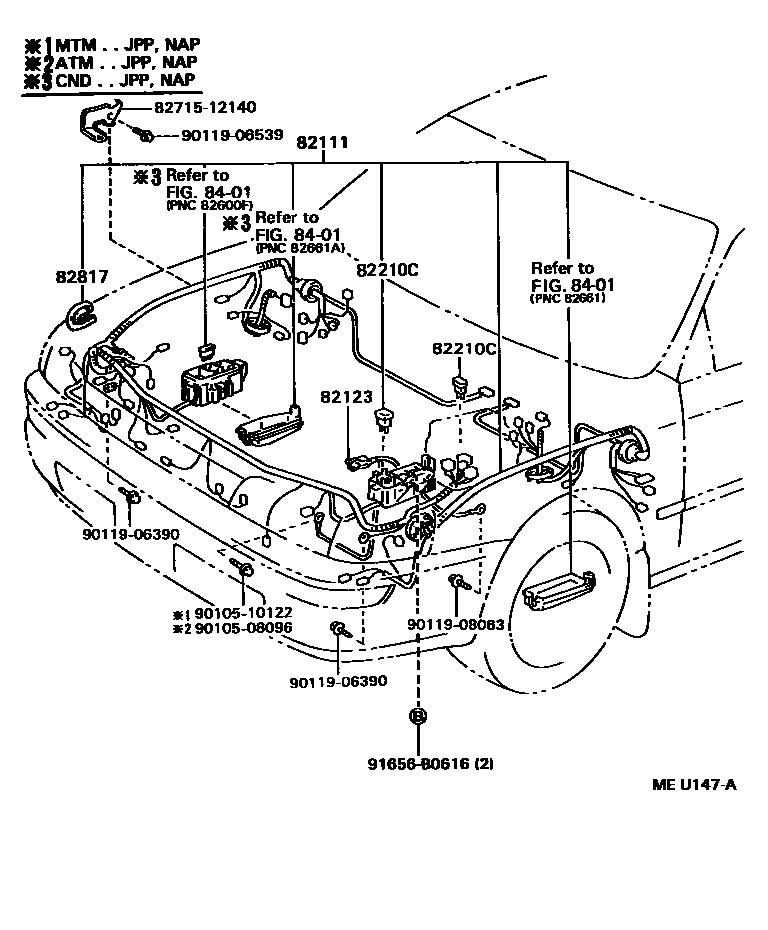

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE WIRE CLAMP 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1FLOOR,ROOF & LUGGAGE 0008 1CABLE BOND,REPAIR 0009 1DIODE

82111WIRE, ENGINE ROOM MAIN

main82111-13330iAE102..JPP..WG..USA¥45,000199206-199402

W(*RW)

main82111-13331iAE102..JPP..WG..USA¥42,800199402-199411

W(*RW)

main82111-13332iAE102..JPP..WG..USA¥42,800199411-199508

W(*RW)

main82111-13390iAE102..JPP..WG..USA¥42,800199508-199608

W(*RW)

main82111-1E170iAE102..JPP..USA¥40,000199508-199608

BRAZIL SPEC & W(*CRC)

main82111-1E170iAE102..JPP..USA¥40,000199508-199608

W(*CRC)

main82111-1E180iAE10#..JPP..USA¥92,700199508-199608

BRAZIL SPEC & W(ABS)

main82111-1E180iAE10#..JPP..USA¥92,700199508-199608

BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)

main82111-1E180iAE10#..JPP..USA¥92,700199508-199608

BRAZIL SPEC & W(ABS & *66)

main82111-1E180iAE10#..JPP..USA¥92,700199508-199608

W(ABS)

main82111-1E190iAE10#..JPP..N..CND¥48,700199508-199608

W(*CRC)

main82111-1E200iAE10#..JPP..CND¥105,000199508-199608

W(ABS)

main82111-1E500iAE10#..JPP..SED..CND¥45,000199206-199401

FINLAND OR DENMARK SPEC

sub82111-1E501¥45,000

main82111-1E501iAE10#..JPP..(D,N)..USA¥45,000199401-199411

main82111-1E501iAE10#..JPP..SED..CND¥45,000199401-199411

BRAZIL SPEC

main82111-1E502iAE10#..JPP..(D,N)..USA¥42,800199411-199508

BRAZIL SPEC

main82111-1E510iAE102..JPP..N..USA¥45,000199206-199401

W(*CRC)

sub82111-1E511¥45,000

main82111-1E510iAE102..JPP..E¥45,000199206-199401

FINLAND SPEC & W(*CRC) OR DENMARK SPEC & W(*CRC)

sub82111-1E511¥45,000

main82111-1E511iAE102..JPP..N..USA¥45,000199401-199411

BRAZIL SPEC & W(*CRC)

main82111-1E511iAE102..JPP..N..USA¥45,000199401-199411

W(*CRC)

main82111-1E512iAE102..JPP..N..USA¥45,900199411-199508

W(*CRC)

main82111-1E512iAE102..JPP..E¥45,900199411-199508

BRAZIL SPEC & W(*CRC)

main82111-1E520iAE10#..JPP..USA¥97,100199206-199308

FINLAND SPEC & W(ABS & *CRC) OR DENMARK SPEC & W(ABS & *CRC)

main82111-1E520iAE10#..JPP..USA¥97,100199206-199308

W(ABS)

main82111-1E520iAE10#..JPP..USA¥97,100199206-199308

FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)

main82111-1E530iAE10#..JPP..CND¥41,900199206-199401

sub82111-1E531¥41,900

main82111-1E531iAE10#..JPP..CND¥41,900199401-199411

main82111-1E532iAE10#..JPP..CND¥48,700199411-199508

main82111-1E540iAE10#..JPP..CND¥41,900199206-199401

W(*CRC)

sub82111-1E541¥41,900

main82111-1E541iAE10#..JPP..CND¥41,900199401-199411

W(*CRC)

main82111-1E542iAE10#..JPP..CND¥48,700199411-199508

W(*CRC)

main82111-1E550iAE10#..JPP..CND¥97,100199206-199308

W(ABS)

main82111-1E560iAE101..JPP..USA;AE102..JPP..WG..USA¥45,000199206-199401

W(ANTI THEFT DEVICE)

sub82111-1E561¥45,000

main82111-1E561iAE101..JPP..USA;AE102..JPP..WG..USA¥45,000199401-199408

W(ANTI THEFT DEVICE)

main82111-1E562iAE101..JPP..USA;AE102..JPP..WG..USA¥45,900199408-199411

W(ANTI THEFT DEVICE)

main82111-1E563iAE101..JPP..USA;AE102..JPP..WG..USA¥92,500199411-199508

W(ANTI THEFT DEVICE)

main82111-1H040iAE102..JPP..SED..CND¥92,500199308-199401

FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)

sub82111-1H041¥92,500

main82111-1H040iAE102..JPP..SED..CND¥92,500199308-199401

FINLAND SPEC & W(ABS & *CRC) OR DENMARK SPEC & W(ABS & *CRC)

sub82111-1H041¥92,500

main82111-1H040iAE102..JPP..SED..CND¥92,500199308-199401

W(ABS)

sub82111-1H041¥92,500

main82111-1H041iAE101..JPP..CND¥92,500199405-199411

BRAZIL SPEC & W(ABS & *66)

main82111-1H041iAE102..JPP..WG..CND¥92,500199405-199411

BRAZIL SPEC & W(ABS)

main82111-1H041iAE102..JPP..SED..CND¥92,500199401-199411

BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)

main82111-1H041iAE10#..JPP..USA¥92,500199401-199411

W(ABS)

main82111-1H042iAE102..JPP..SED..CND¥92,500199411-199505

W(ABS)

main82111-1H042iAE10#..JPP..USA¥92,500199411-199505

BRAZIL SPEC & W(ABS & *66)

main82111-1H042iAE10#..JPP..USA¥92,500199411-199505

BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)

main82111-1H042iAE10#..JPP..USA¥92,500199411-199505

BRAZIL SPEC & W(ABS)

main82111-1H043iAE102..JPP..SED..CND199505-199508

W(ABS)

main82111-1H043iAE101..JPP..CND199505-199508

BRAZIL SPEC & W(ABS)

main82111-1H043iAE101..JPP..CND199505-199508

BRAZIL SPEC & W(ABS) OR BRAZIL SPEC & W(ABS & *66)

main82111-1H043iAE101..JPP..CND199505-199508

BRAZIL SPEC & W(ABS & *66)

main82111-1H050iAE10#..JPP..CND¥105,000199308-199401

W(ABS)

sub82111-1H051¥105,000

main82111-1H051iAE10#..JPP..CND¥105,000199401-199411

W(ABS)

main82111-1H052iAE10#..JPP..CND¥105,000199411-199505

W(ABS)

main82111-1H053iAE10#..JPP..CND199505-199508

W(ABS)

main82111-1H480iAE10#..JPP..SED..CND¥42,900199508-199608

BRAZIL SPEC

main82111-1H480iAE10#..JPP..SED¥42,900199608

main82111-1H490iAE10#..JPP..CND¥48,700199508-199608

main82111-1H500iAE101..JPP..USA;AE102..JPP..WG..4FC..USA¥45,900199508-199608

W(ANTI THEFT DEVICE)

82123WIRE, ENGINE, NO.3

main82123-12220iAE10#..JPP..(4FC,5F)¥3,210199505

main82123-12230iAE10#..JPP..(4FC,5F)¥3,200199206-199505

main82123-12240iAE101..JPP..3FC¥3,200199206-199505

main82123-12250iAE101..JPP..3FC¥3,210199505

82210CFUSIBLE LINK

main90982-08188iAE10#..JPP¥710199206

30A,TERM.:FEMALE,PNK

main90982-08228iAE101..JPP¥480199206-199508

50A,TERM.:MALE,RED

main90982-08246iAE10#..JPP¥440199206

100A,TERM.:MALE,BLUE

main90982-08257iAE10#..JPP¥700199206

40A,TERM.:MALE,GRN

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A090iAE10#..JPP¥620199206-199411

8401

8271512140BRACKET,WIRING HARNESS CLAMP

main82715-12140¥440

9010508096

main90105-08096¥160

9010510122

main90105-10122¥160

9011906390

main90119-06390¥70

9011906539

main90119-06539¥100

9011908063

main90119-08063¥120

91656B0616

main91656-B0616¥120

12 parts on this diagram · 9 diagrams in section
