BATTERY CARRIER

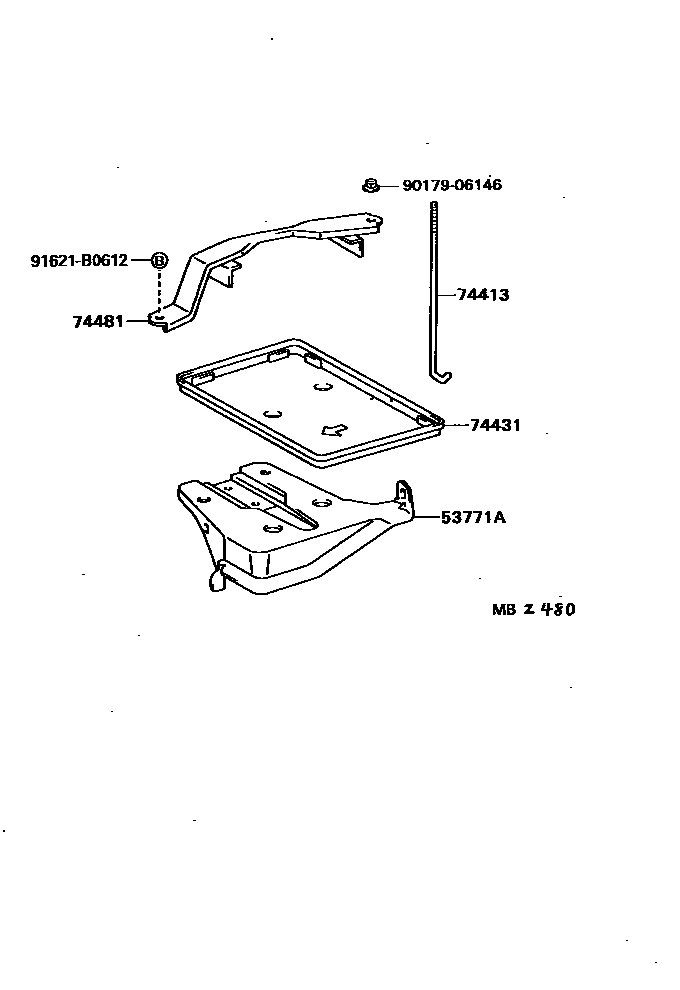

Parts diagram

53771ASUPPORT, BATTERY CARRIER

main53771-12090i199206-199508

main53771-12120i199508

74413BOLT, BATTERY CLAMP

main74451-12060i199206-199504

main74451-12061i199504

74431TRAY, BATTERY

main74431-12080i199206

74481CLAMP, BATTERY HOLD DOWN

main74404-12350i199206

9017906146

main90179-06146

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
