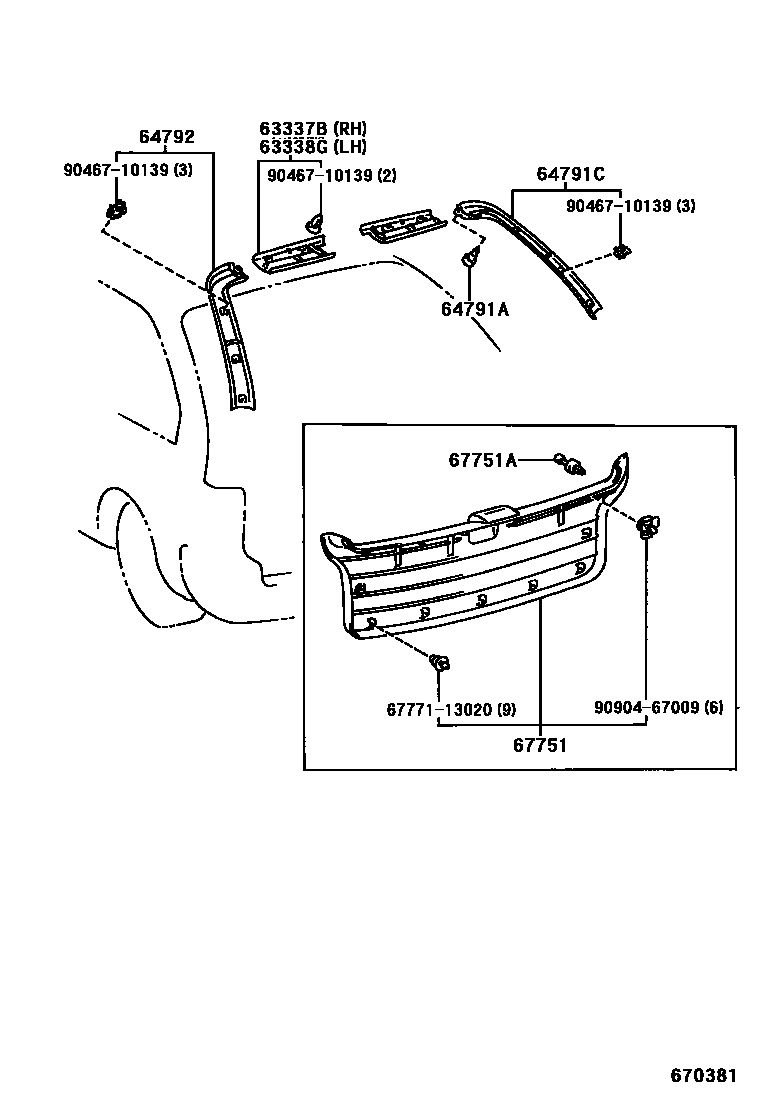

BACK DOOR PANEL & GLASS
63337BCOVER, BACK DOOR OPENING FRAME, UPPER RH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
63338GCOVER, BACK DOOR OPENING FRAME, UPPER LH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
64791ACLIP(FOR BACK DOOR TRIM)
SHADOW GRAY,TRIM1#
sub90467-A0016
OAK,TRIM4#
sub90467-A0016
TAUPE,TRIM9#
sub90467-A0016
DARK BLUE,TRIM8#
sub90467-A0016
64791CCOVER, BACK DOOR TRIM, RH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
64792COVER, BACK DOOR TRIM, LH
67751BOARD, BACK DOOR TRIM
67751ACLIP(FOR BACK DOOR TRIM BOARD)
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
9046710139
9090467009
10 parts on this diagram · 2 diagrams in section
