REAR DOOR PANEL & GLASS

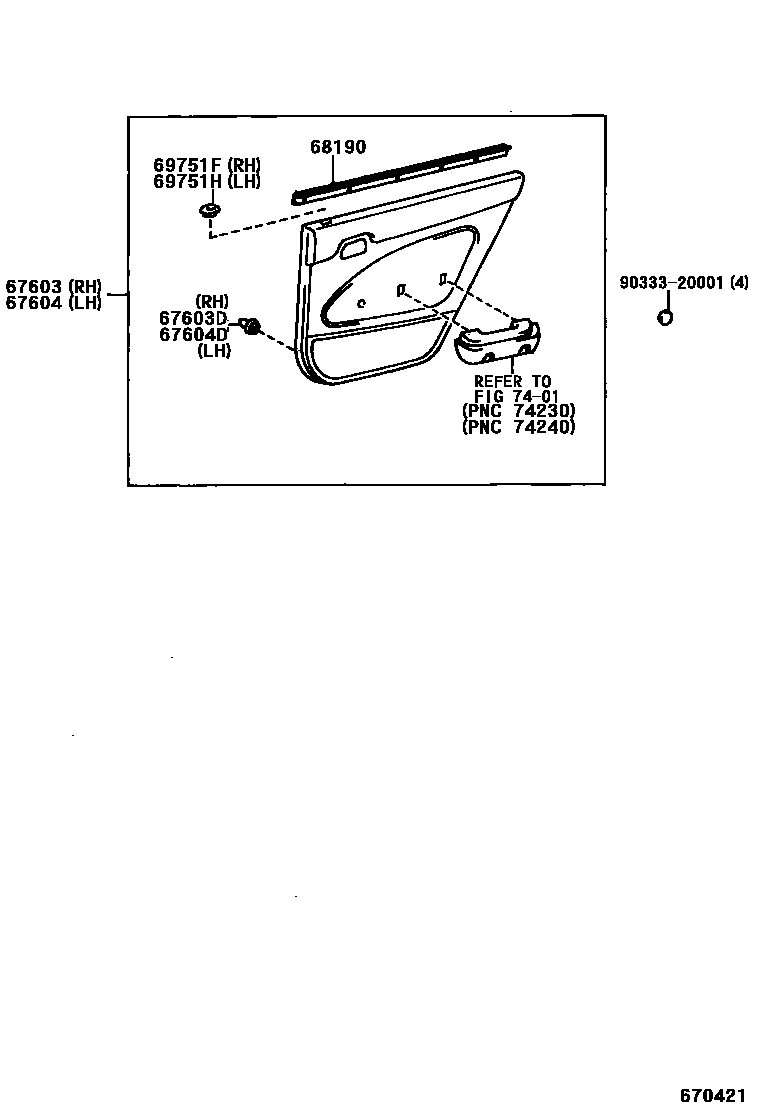

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-13400-B0i199206-199408
W(*PW),SHADOW GRAY,TRIM1#
main67630-13400-J0i199206-199408
W(*PW),DARK BLUE,TRIM8#
main67630-13400-K0i199206-199408
W(*PW),TAUPE,TRIM9#
main67630-13401-B1i199408-199704
W(*PW),SHADOW GRAY,TRIM1#
main67630-13401-E0i199508-199704
W(*PW),OAK,TRIM4#
main67630-13401-J1i199408-199704
W(*PW),DARK BLUE,TRIM8#
main67630-13401-K1i199408-199508
W(*PW),TAUPE,TRIM9#
main67630-13410-B0i199206-199408
SHADOW GRAY,TRIM1#
main67630-13410-J0i199206-199408
DARK BLUE,TRIM8#
main67630-13410-K0i199206-199408
TAUPE,TRIM9#
main67630-13411-B1i199408-199608
SHADOW GRAY,TRIM1#
main67630-13411-E0i199508-199608
OAK,TRIM4#
main67630-13411-J1i199408-199608
DARK BLUE,TRIM8#
main67630-13411-K1i199408-199508
TAUPE,TRIM9#
main67630-13420-B0i199206-199408
SHADOW GRAY,TRIM1#
main67630-13420-J0i199206-199408
DARK BLUE,TRIM8#
main67630-13420-K0i199206-199408
TAUPE,TRIM9#
main67630-13421-B1i199408-199704
SHADOW GRAY,TRIM1#
main67630-13421-E0i199508-199704
OAK,TRIM4#
main67630-13421-J1i199408-199704
DARK BLUE,TRIM8#
main67630-13421-K1i199408-199508
TAUPE,TRIM9#
main67630-1H050-B1i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#
main67630-1H050-B1i199206-199508
SHADOW GRAY,TRIM1#
main67630-1H050-J1i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main67630-1H050-J1i199206-199508
DARK BLUE,TRIM8#
main67630-1H050-K1i199206-199508
TAUPE,TRIM9#
main67630-1H050-K1i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main67630-1H051-B2i199508-199704
SHADOW GRAY,TRIM1#
main67630-1H051-E0i199508-199704
OAK,TRIM4#
main67630-1H051-J2i199508-199704
DARK BLUE,TRIM8#
main67630-1H060-B1i199206-199508
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main67630-1H060-J1i199206-199508
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main67630-1H060-K1i199206-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#
main67630-1H061-B2i199508-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main67630-1H061-E0i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#
main67630-1H061-J2i199508-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main67630-1H070-B1i199206-199408
SHADOW GRAY,TRIM1#
main67630-1H070-J1i199206-199408
DARK BLUE,TRIM8#
main67630-1H070-K1i199206-199408
TAUPE,TRIM9#
main67630-1H080-B1i199206-199408
W(*PW),SHADOW GRAY,TRIM1#
main67630-1H080-B1i199206-199408
SHADOW GRAY,TRIM1#
main67630-1H080-B2i199408-199508
W(*PW),SHADOW GRAY,TRIM1#
main67630-1H080-B2i199408-199508
SHADOW GRAY,TRIM1#
main67630-1H080-J1i199206-199408
W(*PW),DARK BLUE,TRIM8#
main67630-1H080-J1i199206-199408
DARK BLUE,TRIM8#
main67630-1H080-J2i199408-199508
W(*PW),DARK BLUE,TRIM8#
main67630-1H080-J2i199408-199508
DARK BLUE,TRIM8#
main67630-1H080-K1i199206-199408
TAUPE,TRIM9#
main67630-1H080-K1i199206-199408
W(*PW),TAUPE,TRIM9#
main67630-1H080-K2i199408-199508
TAUPE,TRIM9#
main67630-1H080-K2i199408-199508
W(*PW),TAUPE,TRIM9#
main67630-1H090-B1i199206-199408
SHADOW GRAY,TRIM1#
main67630-1H090-B2i199408-199508
SHADOW GRAY,TRIM1#
main67630-1H090-J1i199206-199408
DARK BLUE,TRIM8#
main67630-1H090-J2i199408-199508
DARK BLUE,TRIM8#
main67630-1H090-K1i199206-199408
TAUPE,TRIM9#
main67630-1H090-K2i199408-199508
TAUPE,TRIM9#
main67630-1H210-B0i199308-199408
W(*PW),SHADOW GRAY,TRIM1#
main67630-1H210-J0i199308-199408
W(*PW),DARK BLUE,TRIM8#
main67630-1H210-K0i199308-199408
W(*PW),TAUPE,TRIM9#
main67630-1H260-B0i199408-199704
W(*PW),SHADOW GRAY,TRIM1#
main67630-1H260-E0i199508-199704
W(*PW),OAK,TRIM4#
main67630-1H260-J0i199408-199704
W(*PW),DARK BLUE,TRIM8#
main67630-1H260-K0i199408-199508
W(*PW),TAUPE,TRIM9#
main67630-1H270-B0i199408-199704
SHADOW GRAY,TRIM1#
main67630-1H270-E0i199508-199704
OAK,TRIM4#
main67630-1H270-J0i199408-199704
DARK BLUE,TRIM8#
main67630-1H270-K0i199408-199508
TAUPE,TRIM9#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-12030i199310-199605
YELLOWISH GREEN
main67771-12070i199408
NATURAL
main67771-12070i199206-199401
WHITE
main67771-13030i199208
BROWN
main67771-16160i199206-199608
ORANGE
main67771-16170i199206-199401
SABLE
main90467-08179i199206-199605
YELLOW
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-13400-B0i199206-199408
W(*PW),SHADOW GRAY,TRIM1#
main67640-13400-J0i199206-199408
W(*PW),DARK BLUE,TRIM8#
main67640-13400-K0i199206-199408
W(*PW),TAUPE,TRIM9#
main67640-13401-B1i199408-199704
W(*PW),SHADOW GRAY,TRIM1#
main67640-13401-E0i199508-199704
W(*PW),OAK,TRIM4#
main67640-13401-J1i199408-199704
W(*PW),DARK BLUE,TRIM8#
main67640-13401-K1i199408-199508
W(*PW),TAUPE,TRIM9#
main67640-13410-B0i199206-199408
SHADOW GRAY,TRIM1#
main67640-13410-J0i199206-199408
DARK BLUE,TRIM8#
main67640-13410-K0i199206-199408
TAUPE,TRIM9#
main67640-13411-B1i199408-199608
SHADOW GRAY,TRIM1#
main67640-13411-E0i199508-199608
OAK,TRIM4#
main67640-13411-J1i199408-199608
DARK BLUE,TRIM8#
main67640-13411-K1i199408-199508
TAUPE,TRIM9#
main67640-13420-B0i199206-199408
SHADOW GRAY,TRIM1#
main67640-13420-J0i199206-199408
DARK BLUE,TRIM8#
main67640-13420-K0i199206-199408
TAUPE,TRIM9#
main67640-13421-B1i199408-199704
SHADOW GRAY,TRIM1#
main67640-13421-E0i199508-199704
OAK,TRIM4#
main67640-13421-J1i199408-199704
DARK BLUE,TRIM8#
main67640-13421-K1i199408-199508
TAUPE,TRIM9#
main67640-1H050-B1i199206-199508
SHADOW GRAY,TRIM1#
main67640-1H050-B1i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#
main67640-1H050-J1i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main67640-1H050-J1i199206-199508
DARK BLUE,TRIM8#
main67640-1H050-K1i199206-199508
TAUPE,TRIM9#
main67640-1H050-K1i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main67640-1H051-B2i199508-199704
SHADOW GRAY,TRIM1#
main67640-1H051-E0i199508-199704
OAK,TRIM4#
main67640-1H051-J2i199508-199704
DARK BLUE,TRIM8#
main67640-1H060-B1i199206-199508
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main67640-1H060-J1i199206-199508
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main67640-1H060-K1i199206-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#
main67640-1H061-B2i199508-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main67640-1H061-E0i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#
main67640-1H061-J2i199508-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main67640-1H070-B1i199206-199408
SHADOW GRAY,TRIM1#
main67640-1H070-J1i199206-199408
DARK BLUE,TRIM8#
main67640-1H070-K1i199206-199408
TAUPE,TRIM9#
main67640-1H080-B1i199206-199408
SHADOW GRAY,TRIM1#
main67640-1H080-B1i199206-199408
W(*PW),SHADOW GRAY,TRIM1#
main67640-1H080-B2i199408-199508
SHADOW GRAY,TRIM1#
main67640-1H080-B2i199408-199508
W(*PW),SHADOW GRAY,TRIM1#
main67640-1H080-J1i199206-199408
W(*PW),DARK BLUE,TRIM8#
main67640-1H080-J1i199206-199408
DARK BLUE,TRIM8#
main67640-1H080-J2i199408-199508
W(*PW),DARK BLUE,TRIM8#
main67640-1H080-J2i199408-199508
DARK BLUE,TRIM8#
main67640-1H080-K1i199206-199408
TAUPE,TRIM9#
main67640-1H080-K1i199206-199408
W(*PW),TAUPE,TRIM9#
main67640-1H080-K2i199408-199508
W(*PW),TAUPE,TRIM9#
main67640-1H080-K2i199408-199508
TAUPE,TRIM9#
main67640-1H090-B1i199206-199408
SHADOW GRAY,TRIM1#
main67640-1H090-B2i199408-199508
SHADOW GRAY,TRIM1#
main67640-1H090-J1i199206-199408
DARK BLUE,TRIM8#
main67640-1H090-J2i199408-199508
DARK BLUE,TRIM8#
main67640-1H090-K1i199206-199408
TAUPE,TRIM9#
main67640-1H090-K2i199408-199508
TAUPE,TRIM9#
main67640-1H210-B0i199308-199408
W(*PW),SHADOW GRAY,TRIM1#
main67640-1H210-J0i199308-199408
W(*PW),DARK BLUE,TRIM8#
main67640-1H210-K0i199308-199408
W(*PW),TAUPE,TRIM9#
main67640-1H260-B0i199408-199704
W(*PW),SHADOW GRAY,TRIM1#
main67640-1H260-E0i199508-199704
W(*PW),OAK,TRIM4#
main67640-1H260-J0i199408-199704
W(*PW),DARK BLUE,TRIM8#
main67640-1H260-K0i199408-199508
W(*PW),TAUPE,TRIM9#
main67640-1H270-B0i199408-199704
SHADOW GRAY,TRIM1#
main67640-1H270-E0i199508-199704
OAK,TRIM4#
main67640-1H270-J0i199408-199704
DARK BLUE,TRIM8#
main67640-1H270-K0i199408-199508
TAUPE,TRIM9#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-12030i199310-199605
YELLOW GREEN
main67771-12070i199206-199401
WHITE
main67771-13030i199208
SABLE,PLANT K21
main67771-16160i199206-199608
ORANGE
main67771-16170i199206-199401
SABLE
main67771-16170i199401
SABLE,PLANT A31,A32
main90467-08179i199206-199605
YELLOW
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-12050i199206
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
main69751-12050-B0i199206-199704
SHADOW GRAY,TRIM1#
sub69751-12050
main69751-12050-E0i199508-199704
OAK,TRIM4#
sub69751-12050
main69751-12050-J0i199206-199704
DARK BLUE,TRIM8#
sub69751-12050
main69751-12050-K0i199206-199508
TAUPE,TRIM9#
sub69751-12050
69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB
main69751-12050-B0i199206-199704
SHADOW GRAY,TRIM1#
sub69751-12050
main69751-12050-E0i199508-199704
OAK,TRIM4#
sub69751-12050
main69751-12050-J0i199206-199704
DARK BLUE,TRIM8#
sub69751-12050
main69751-12050-K0i199206-199508
TAUPE,TRIM9#
sub69751-12050
7401
9033320001
main90333-20001

9 parts on this diagram · 3 diagrams in section
