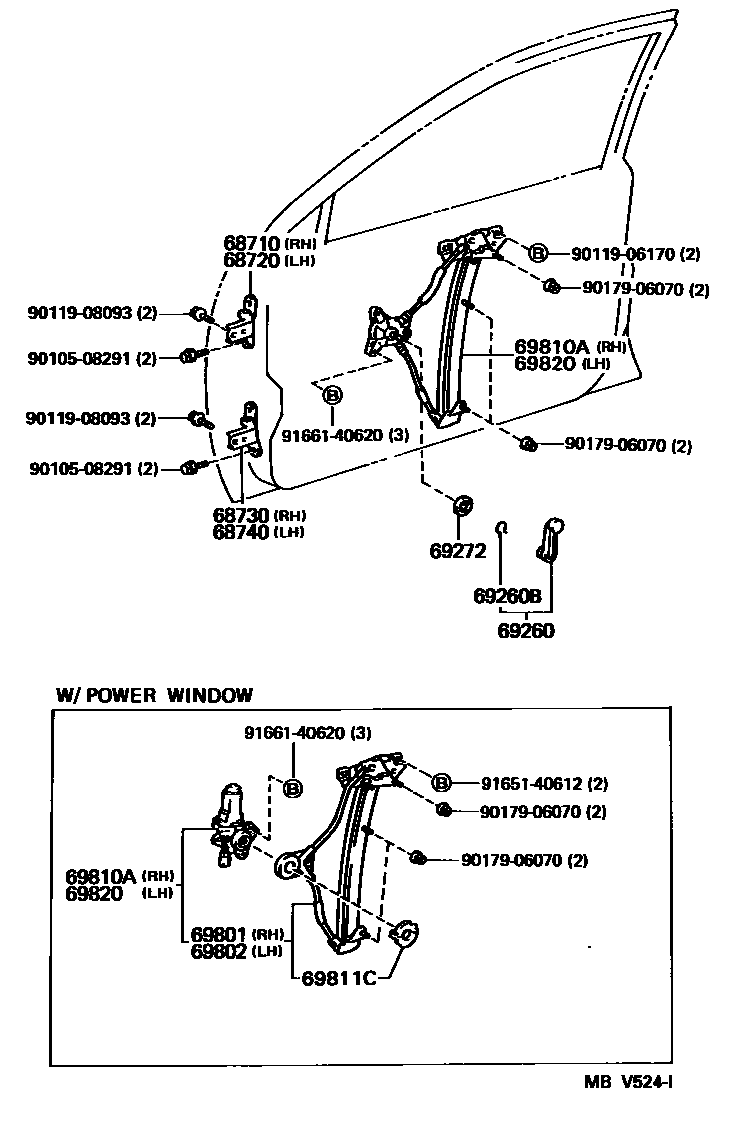

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE10#..JPP¥3,240199206-199510

sub68710-12150¥3,250

main68710-12150iAE10#..JPP¥3,250199510-199704

sub68710-12151¥2,050

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE10#..JPP¥3,240199206-199510

sub68720-12150¥3,250

main68720-12150iAE10#..JPP¥3,250199510-199704

sub68720-12151¥2,050

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE10#..JPP¥3,560199206-199510

sub68730-12110¥3,600

main68730-12110iAE10#..JPP¥3,600199510-199704

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE10#..JPP¥3,560199206-199510

sub68740-12110¥3,600

main68740-12110iAE10#..JPP¥3,600199510-199704

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07iAE10#..JPP..(D,N)199206-199704

DARK BLUE,TRIM8#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-42iAE10#..JPP..(D,N)199206-199508

TAUPE,TRIM9#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-43iAE10#..JPP..(D,N)199206-199704

GRAY,TRIM1#

sub69260-10040¥1,610

sub69260-16010¥1,610

main69260-10040-E1iAE10#..JPP199508-199704

OAK,TRIM4#

sub69260-10040¥1,610

sub69260-16010¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iAE10#..JPP..(D,N)¥160199206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iAE10#..JPP..(D,N)¥180199206

sub69285-22010¥330

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12140iAE102..JPP..E;AE102..JPP..SED..CND¥5,100199206-199508

main69801-12140iAE102..JPP..WG..USA¥5,100199206-199608

W(ANTI-THEFT DEVICE) OR W(*PW)

main69801-12140iAE101..JPP..USA¥5,100199206-199608

W(ANTI-THEFT DEVICE)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12140iAE102..JPP..E;AE102..JPP..SED..CND¥5,100199206-199508

main69802-12140iAE102..JPP..WG..USA¥5,100199206-199608

W(ANTI-THEFT DEVICE) OR W(*PW)

main69802-12140iAE101..JPP..USA¥5,100199206-199608

W(ANTI-THEFT DEVICE)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02030iAE10#..JPP..(D,N)199306-199312

(L)

sub69810-02031¥6,300

main69810-02031iAE10#..JPP..(D,N)¥6,300199312-199402

(L)

sub69810-02032¥6,300

main69810-02032iAE10#..JPP..(D,N)¥6,300199402

(L)

main69810-12380iAE10#..JPP..(D,N)¥5,000199206-199310

(J)

sub69810-12381¥5,000

main69810-12381iAE10#..JPP..(D,N)¥5,000199310-199607

(J)

sub69810-12382¥5,100

main69810-12382iAE10#..JPP¥5,100199607

main69810-12390iAE102..JPP..E¥25,200199206-199608

W(ANTI-THEFT DEVICE) OR W(*PW)

main69810-12390iAE101..JPP..CND;AE102..JPP..SED..N¥25,200199206-199508

W(POWER WINDOW)

main69810-12390iAE101..JPP..USA¥25,200199206-199608

W(ANTI-THEFT DEVICE)

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040iAE10#..JPP..N;AE101..JPP..USA¥500199206-199508

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02030iAE10#..JPP..(D,N)199306-199312

(L)

sub69820-02031¥6,300

main69820-02031iAE10#..JPP..(D,N)¥6,300199312-199402

(L)

sub69820-02032¥6,300

main69820-02032iAE10#..JPP..(D,N)¥6,300199402

(L)

main69820-12380iAE10#..JPP..(D,N)¥5,000199206-199310

(J)

sub69820-12381¥5,000

main69820-12381iAE10#..JPP..(D,N)¥5,000199310-199607

(J)

sub69820-12382¥5,100

main69820-12382iAE10#..JPP¥5,100199607

main69820-12390iAE10#..JPP..CND;AE102..JPP..SED..N..USA¥25,200199206-199508

W(POWER WINDOW)

main69820-12390iAE101..JPP..USA¥25,200199206-199608

W(ANTI-THEFT DEVICE)

main69820-12390iAE102..JPP..WG..4FC..USA¥25,200199206-199608

W(ANTI-THEFT DEVICE) OR W(*PW)

9010508291

main90105-08291¥90

9011906170

main90119-06170¥110

9011908093

main90119-08093¥90

9017906070

main90179-06070¥180

9165140612

main91651-40612¥70

9166140620

main91661-40620¥80

18 parts on this diagram · 1 diagram in section
