ROOF HEADLINING & SILENCER PAD

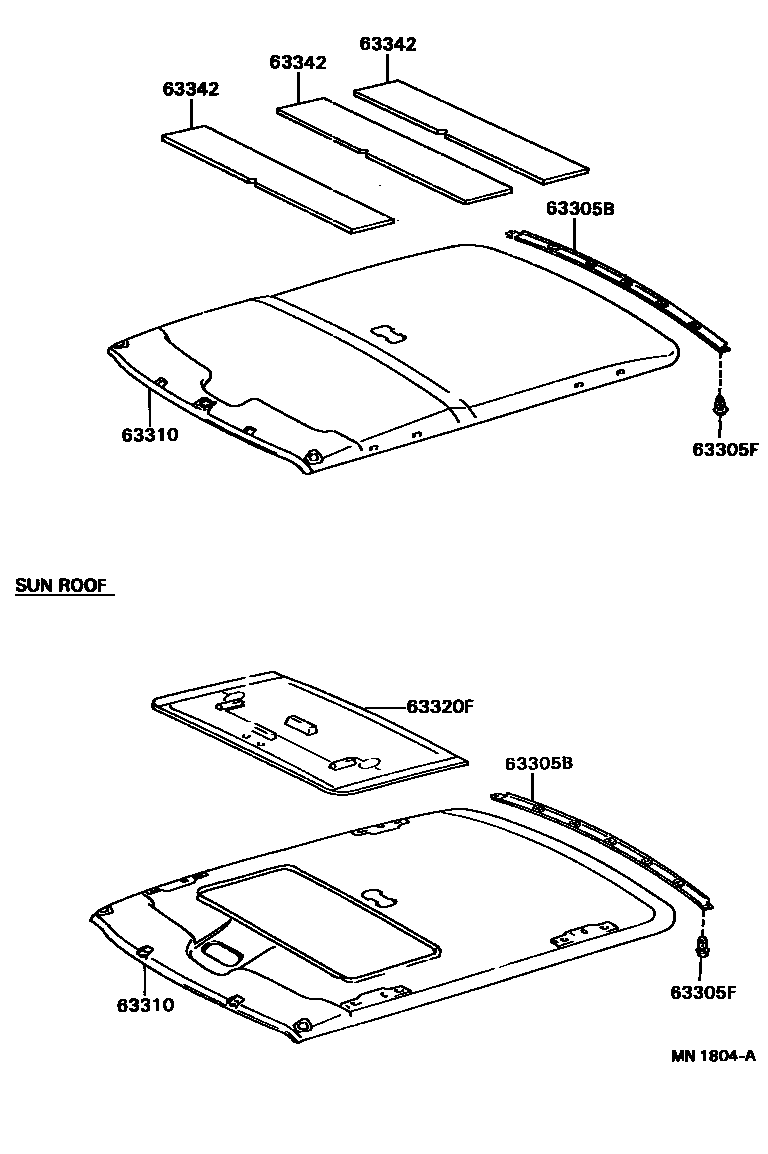

Parts diagram
63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR
main63305-12140-E0i199508-199704
OAK,TRIM4#
sub63305-12140
main63305-12140-K0i199206-199508
TAUPE,TRIM9#
sub63305-12140
main63305-12140-P0i199206-199704
SHADOW GRAY,TRIM1#
sub63305-12140
main63305-12140-W3i199206-199704
DARK BLUE,TRIM8#
sub63305-12140
63305FCLIP(FOR ROOF HEADLINING TRIM)
main90467-05062-B0i199206-199704
SHADOW GRAY,TRIM1#
sub90467-05062
main90467-05062-E3i199508-199704
OAK,TRIM4#
sub90467-05062
main90467-05062-J1i199206-199704
DARK BLUE,TRIM8#
sub90467-05062
main90467-05062-K0i199206-199505
TAUPE,TRIM9#
sub90467-05062
63310HEADLINING ASSY, ROOF
main63310-13180-A2i199508-199704
IVORY,TRIM4#
main63310-13180-B0i199206-199704
LIGHT GRAY,TRIM1#
main63310-13180-J0i199206-199704
LIGHT BLUE,TRIM8#
main63310-13180-K0i199206-199508
LIGHT TAUPE,TRIM9#
main63310-1A221-A1i199508-199704
IVORY,TRIM4#
sub63310-1A221
main63310-1A221-K1i199206-199508
LIGHT TAUPE,TRIM9#
sub63310-1A221
main63310-1A221-S3i199206-199704
LIGHT GRAY,TRIM1#
sub63310-1A221
main63310-1A221-W5i199206-199704
LIGHT BLUE,TRIM8#
sub63310-1A221
main63310-1A400-A0i199508-199704
W(SUN ROOF),IVORY,TRIM4#
main63310-1A400-B0i199206-199704
W(SUN ROOF),LIGHT GRAY,TRIM1#
main63310-1A400-J0i199206-199704
W(SUN ROOF),LIGHT BLUE,TRIM8#
main63310-1A400-K0i199206-199508
W(SUN ROOF),LIGHT TAUPE,TRIM9#
63320FHEADLINING ASSY, SUN ROOF
main63320-12110-A0i199508-199704
IVORY,TRIM4#
main63320-12110-K1i199206-199508
LIGHT TAUPE,TRIM9#
main63320-12110-S3i199206-199704
LIGHT GRAY,TRIM1#
main63320-12110-W5i199206-199704
LIGHT BLUE,TRIM8#
63342PAD, ROOF SILENCER, NO.2
main63341-16010i199601
150 X 860
sub63341-12330
main63342-12060i199206-199510
main63342-12060i199510
140 X 700
main63343-12050i199601
275 X 820

5 parts on this diagram · 2 diagrams in section
