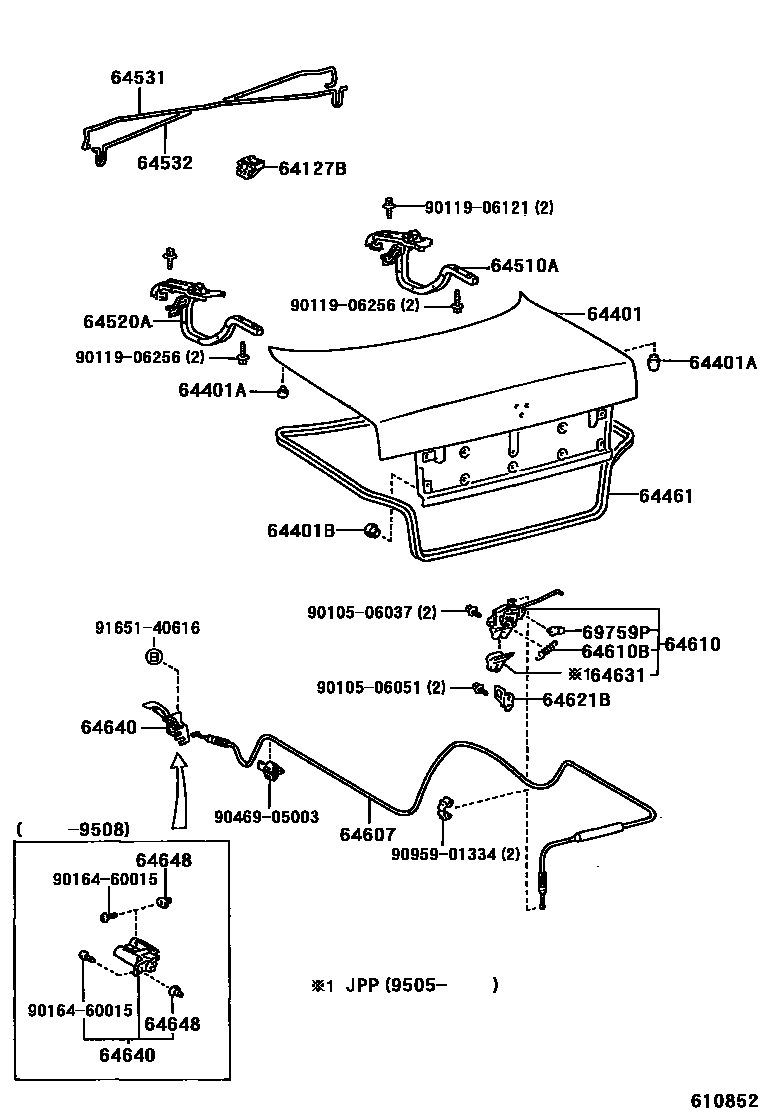

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-12080iAE10#..JPP..SED199206-199704

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A510iAE10#..JPP..SED199206-199704

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-12050iAE10#..JPP..SED199206-199704

REAR

main90541-06056iAE10#..JPP..SED199206-199704

FRONT

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01820iAE10#..JPP..SED199206-199505

main90950-01864iAE10#..JPP..SED199505-199704

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12290iAE10#..JPP..SED199206-199704

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12220iAE10#..JPP..SED199206-199704

64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12210iAE10#..JPP..SED199206-199704

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12390iAE101..JPP;AE102..JPP..SED..N..USA199206-199704

main64531-12480iAE102..JPP..E;AE102..JPP..SED..CND199206-199704

main64531-12480iAE101..JPP..USA199206-199608

W(ANTI-THEFT DEVICE)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12380iAE101..JPP;AE102..JPP..SED..N..USA199206-199704

main64532-12470iAE102..JPP..E;AE102..JPP..SED..CND199206-199704

main64532-12470iAE101..JPP..USA199206-199608

W(ANTI-THEFT DEVICE)

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12560iAE10#..JPP..SED199206-199409

main64607-12561iAE10#..JPP..SED199409-199704

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12170iAE10#..JPP..SED199206-199207

sub64610-12171

main64610-12171iAE10#..JPP..SED199207-199704

64610BSPRING, TENSION(FOR LOCK)

main90506-05001iAE10#..JPP..SED199206-199609

WD=0.55,CW=17.5

main90506-05002iAE10#..JPP..SED199206-199704

WD=0.25,CW=17.25

main90905-06021iAE10#..JPP..SED199609-199704

WD=0.55,CW=17.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE10#..JPP..SED199206

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12040iAE10#..JPP..SED199505-199704

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64606-20091iAE10#..JPP..SED199508-199704

main64640-12100-B0iAE101..JPP..CND;AE102..JPP..SED199206-199504

SHADOW GRAY,TRIM1#

sub64640-12101

main64640-12100-J0iAE10#..JPP..SED199206-199504

DARK BLUE,TRIM8#

sub64640-12101

main64640-12100-K0iAE10#..JPP..SED199206-199504

TAUPE,TRIM9#

sub64640-12101

main64640-12101-B0iAE102..JPP..E;AE10#..JPP..SED..CND199504-199508

SHADOW GRAY,TRIM1#

sub64640-12101

main64640-12101-J0iAE102..JPP..E;AE10#..JPP..SED..CND199504-199508

DARK BLUE,TRIM8#

sub64640-12101

main64640-12101-K0iAE102..JPP..E;AE10#..JPP..SED..CND199504-199508

TAUPE,TRIM9#

sub64640-12101

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12010iAE10#..JPP..SED199206-199505

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iAE10#..JPP..SED199206-199704

9010506037

main90105-06037

9010506051

main90105-06051

9011906121

main90119-06121

9011906256

main90119-06256

9016460015

main90164-60015

9046905003

main90469-05003

9095901334

main90959-01334

9165140616

main91651-40616

25 parts on this diagram · 1 diagram in section
