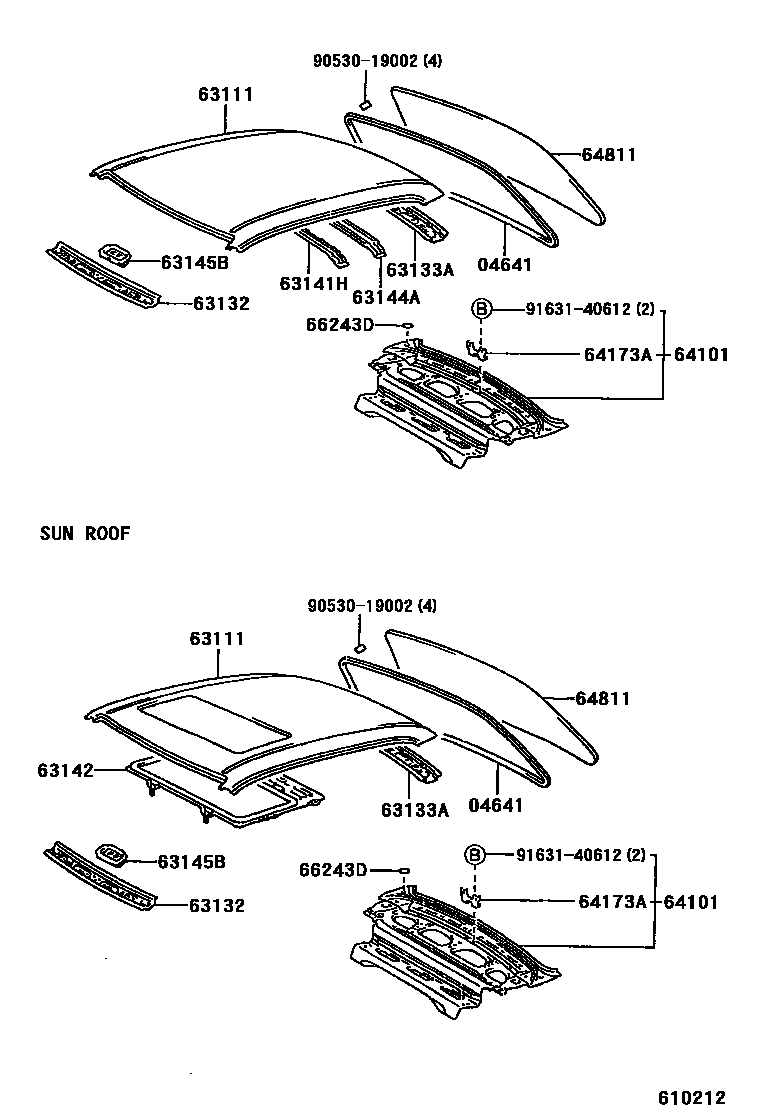

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
63132PANEL, WINDSHIELD HEADER, INNER
63133AFRAME, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63144AREINFORCEMENT, ROOF PANEL, NO.4
63145BREINFORCEMENT, WINDSHIELD HEADER PANEL
64101PANEL SUB-ASSY, UPPER BACK
STANDERD PACKAGE
64173ABRACKET, HIGH MOUNTING STOP LAMP
64811GLASS, BACK WINDOW
*TEM,T=3.5
*EHT,T=3.5,W(*RWD)
*EHT,T=3.5
*EHTT,T=3.5,BLUE,W(*RWD)
*EHTT,T=3.5,BLUE
*EHTT,T=3.5,BLUE,COLD AREA SPEC
*EHTT,T=3.5,BLUE
66243DPROTECTOR, REAR BODY, NO.1
9053019002
main90530-19002
9163140612
main91631-40612
14 parts on this diagram · 3 diagrams in section
