COWL PANEL & WINDSHIELD GLASS

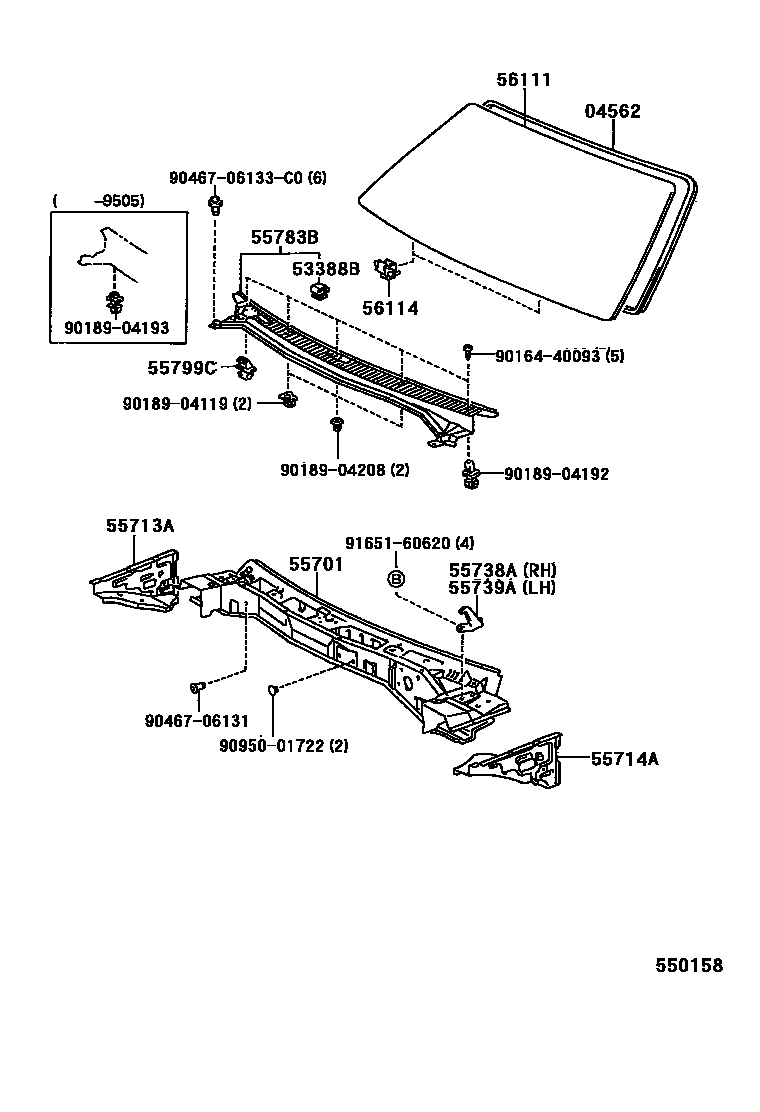

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i¥2,100199206

53388BCUSHION, HOOD, REAR

main53388-12040i¥460199206

55701PANEL SUB-ASSY, COWL

main55700-12890i¥36,200199401-199509

BRAZIL SPEC

sub55700-1A160¥36,400

main55700-1A010i¥36,200199206-199608

main55700-1A160i¥36,400199509-199608

BRAZIL SPEC

main55700-1A160i¥36,400199608

55713APANEL, COWL TOP SIDE, RH

main55713-12080i¥4,290199206-199508

sub55713-12081¥4,310

sub90467-07166¥90

main55713-12081i¥4,310199505-199508

BRAZIL SPEC

main55713-12081i¥4,310199508

55714APANEL, COWL TOP SIDE, LH

main55714-12080i¥4,290199206-199508

sub55714-12081¥4,310

sub90467-07166¥90

main55714-12081i¥4,310199505-199508

BRAZIL SPEC

main55714-12081i¥4,310199508

55738ASTOPPER, HOOD, RH

main55738-12090i¥580199206

55739ASTOPPER, HOOD, LH

main55739-12050i¥580199206

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12130i¥14,700199206-199608

sub55708-12140¥14,900

main55708-12140i¥14,900199206

main55708-12140i¥14,900199508-199608

COLD AREA SPEC(USA)

main55708-12140i¥14,900199206-199508

COLD AREA SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010i¥390199505

56111GLASS, WINDSHIELD

main56111-02040i199206-199608

*TL,T=4.7,(L)

main56111-1A460i¥94,200199401-199608

*TL,T=4.7,BRAZIL SPEC

sub56111-1A470¥101,000

main56111-1A460i¥94,200199608

*TL,T=4.7

sub56111-1A470¥101,000

main56111-1A500i199206-199608

*TL,T=4.7,(J)

56114RETAINER, WINDSHIELD GLASS

main56110-12010i¥550199206

9016440093

main90164-40093¥70

9018904119

main90189-04119¥130

9018904192

main90189-04192¥130

9018904193

main90189-04193¥130

9018904208

main90189-04208¥130

9046706131

main90467-06131¥200

9046706133C0

main90467-06133C0

9095001722

main90950-01722¥120

9165160620

main91651-60620¥80

20 parts on this diagram · 1 diagram in section
