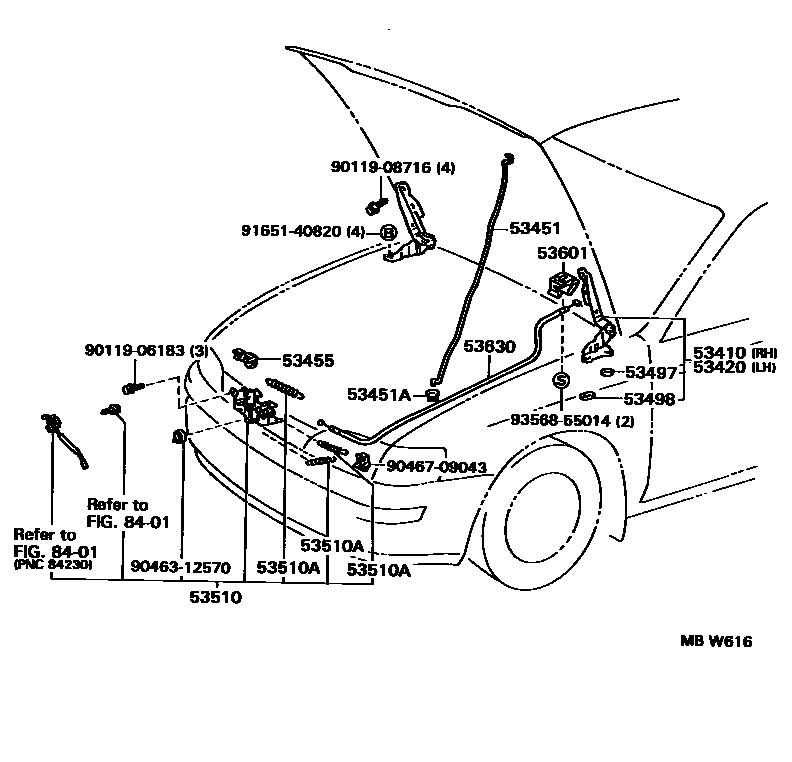

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12190iAE10#..JPP199206-199211

PAD T=1.0

sub53410-12260

main53410-12220iAE10#..JPP199206-199211

PAD T=0.5

sub53410-12250

main53410-12250iAE10#..JPP199211

PAD T=0.5

sub53410-12260

main53410-12260iAE10#..JPP199211

PAD T=1.0

53420HINGE ASSY, HOOD, LH

main53420-12180iAE10#..JPP199206-199211

PAD T=1.0

sub53420-12250

main53420-12210iAE10#..JPP199206-199211

PAD T=0.5

sub53420-12240

main53420-12240iAE10#..JPP199211

PAD T=0.5

sub53420-12250

main53420-12250iAE10#..JPP199211

PAD T=1.0

53451ROD, HOOD SUPPORT

main53451-12170iAE10#..JPP199206-199409

sub53451-12171

sub53455-12090

sub90480-15020

main53451-12171iAE10#..JPP199409

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15020iAE10#..JPP199409

main90480-15027iAE10#..JPP199206-199409

53455CLAMP, HOOD SUPPORT ROD

main53455-12060iAE10#..JPP199206-199409

main53455-12090iAE10#..JPP199409

53497PAD, HOOD HINGE, NO.1

main53497-12060iAE10#..JPP199206

T=1.0

main53497-12070iAE10#..JPP199206

T=0.5,PAD T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12060iAE10#..JPP199206

PAD T=1.0

main53498-12070iAE10#..JPP199206

PAD T=0.5

53510LOCK ASSY, HOOD

main53510-12500iAE10#..JPP199206

main53510-12510iAE101..JPP..USA;AE102..JPP..WG..USA199206-199608

W(ANTI-THEFT DEVICE)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAE10#..JPP199206-199704

WD=0.9,CW=21

main90506-12067iAE10#..JPP199206-199704

WD=1.4,CW=7.25

main90506-20066iAE10#..JPP199206-199704

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-01iAE10#..JPP199308-199409

NEW BLACK,TRIM1#,8#,9#

sub53601-10020

sub53601-20060

main53601-10020-34iAE10#..JPP199206-199308

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-B1iAE10#..JPP199206-199308

SHADOW GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-C0iAE10#..JPP199409-199508

BLACK,TRIM1#,8#,9#

sub53601-10020

sub53601-20060

main53601-10020-C0iAE102..JPP..SED..USA199508-199608

BLACK,TRIM1#,8#

sub53601-10020

sub53601-20060

main53601-10020-C0iAE101..JPP;AE102..JPP..WG;AE102..JPP..SED..CND199508-199704

BLACK,TRIM1#,4#,8#

sub53601-10020

sub53601-20060

main53601-10020-K0iAE10#..JPP199206-199308

TAUPE,TRIM9#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12440iAE10#..JPP199206-199207

sub53630-12460

main53630-12460iAE10#..JPP199207

8401

9011906183

main90119-06183

9011908716

main90119-08716

9046312570

main90463-12570

9046709043

main90467-09043

9165140820

main91651-40820

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
