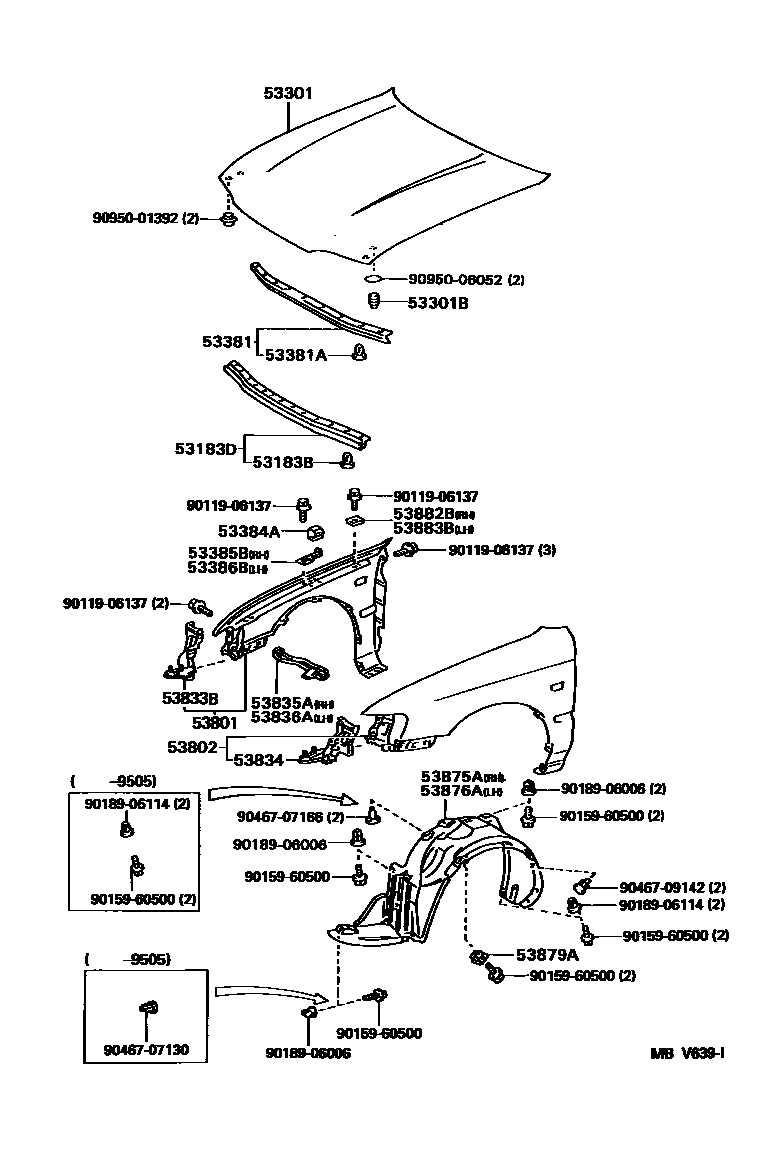

HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iAE10#..JPP¥100199206

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-12180iAE10#..JPP¥2,090199206

53301HOOD SUB-ASSY

main53301-12700iAE10#..JPP¥38,800199206

53301BCUSHION, HOOD BUMPER

main90541-15019iAE10#..JPP¥200199206

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12160iAE10#..JPP¥1,470199206

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAE10#..JPP¥100199206

53384ABUMPER, FENDER TO HOOD

main53384-12080iAE10#..JPP¥460199206

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iAE10#..JPP¥370199206

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAE10#..JPP¥370199206

53801FENDER SUB-ASSY, FRONT RH

main53801-1E700iAE10#..JPP¥32,700199206

53802FENDER SUB-ASSY, FRONT LH

main53802-1E580iAE10#..JPP¥32,700199206

53833BPANEL, FRONT FENDER SIDE, RH

main53083-12050iAE10#..JPP¥820199206

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53084-12050iAE10#..JPP¥820199206

53835ABRACE, FRONT FENDER TO APRON, RH

main53803-12020iAE10#..JPP¥820199206

53836ABRACE, FRONT FENDER TO APRON, LH

main53804-12020iAE10#..JPP¥820199206

53875ALINER, FRONT FENDER, RH

main53875-12210iAE10#..JPP¥6,300199206

53876ALINER, FRONT FENDER, LH

main53876-12200iAE10#..JPP¥6,300199206

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE10#..JPP¥230199206

53882BSEAL, FRONT FENDER, RH

main53882-16030iAE10#..JPP¥60199206

53883BSEAL, FRONT FENDER, LH

main53882-16030iAE10#..JPP¥60199206

9011906137

main90119-06137¥70

9015960500

main90159-60500¥70

9018906006

main90189-06006¥100

9018906114

main90189-06114¥80

9046707130

main90467-07130¥160

9046707166

main90467-07166¥90

9046709142

main90467-09142¥140

9095001392

main90950-01392¥100

9095006052

main90950-06052¥240

29 parts on this diagram · 1 diagram in section
