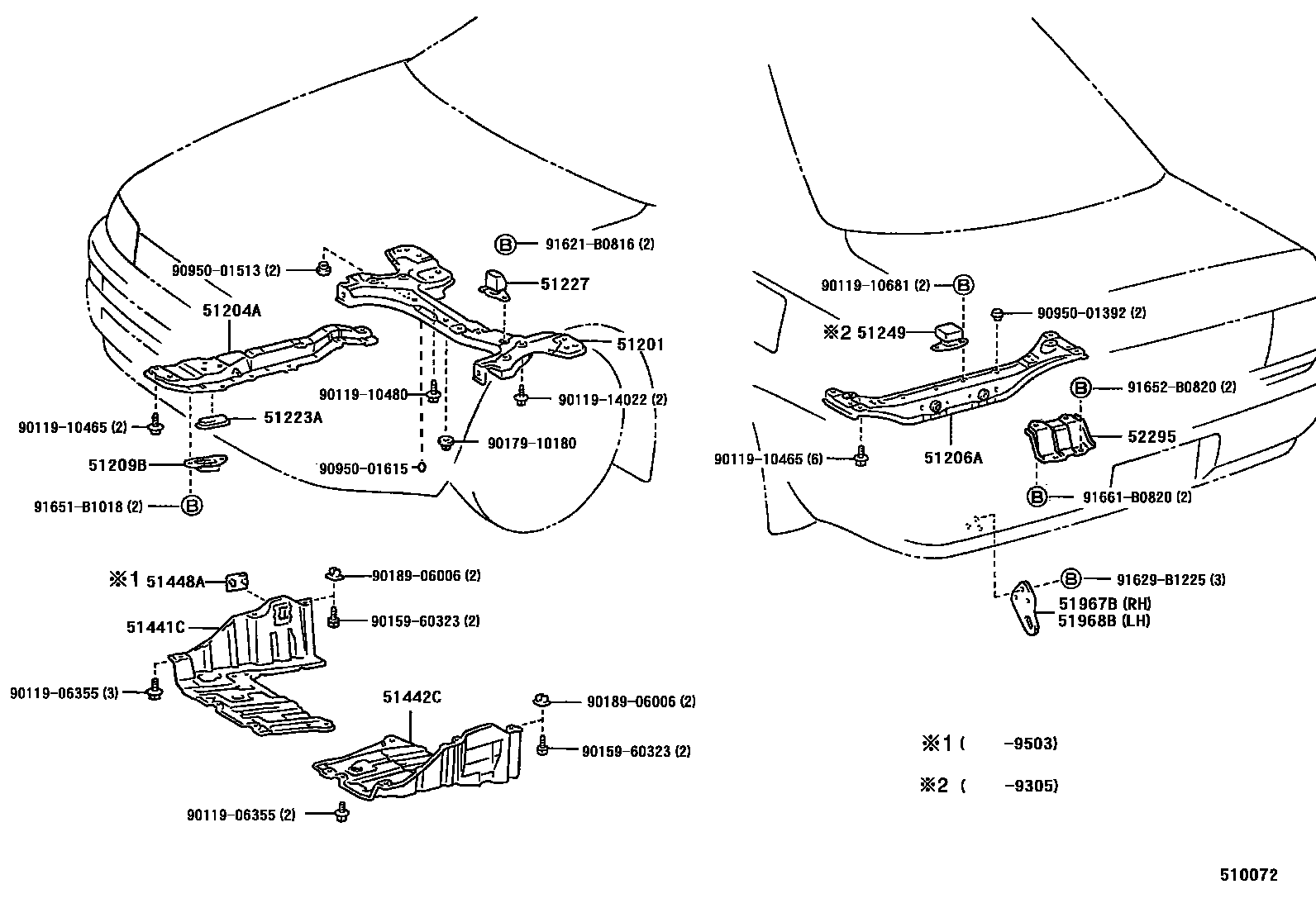

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12320iAE101..JPP¥40,100199206-199505

sub51201-12370¥40,100

main51201-12360iAE102..JPP¥43,100199206-199505

sub51201-12380¥43,300

main51201-12370iAE101..JPP¥40,100199505-199508

sub51201-12380¥43,300

main51201-12380iAE102..JPP¥43,300199505-199508

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE10#..JPP¥15,700199206

sub51204-12081¥15,800

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE10#..JPP¥21,500199206-199305

main51206-12060iAE10#..JPP¥19,500199305

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iAE10#..JPP¥2,260199206

51223ACOVER, ENGINE MOUNTING HOLE

main51223-12010iAE10#..JPP¥330199206-199406

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE10#..JPP¥2,710199206-199305

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12060iAE10#..JPP¥6,400199206-199305

51441CCOVER, ENGINE UNDER, RH

main51441-12140iAE10#..JPP¥3,170199206

51442CCOVER, ENGINE UNDER, LH

main51442-12080iAE10#..JPP..5F¥5,100199206

main51442-12090iAE10#..JPP..ATM¥4,210199206

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE10#..JPP¥620199206-199501

51967BHOOK, TRANSPORT, REAR RH

main51967-12220iAE10#..JPP¥2,750199206

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE10#..JPP¥1,120199206

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE10#..JPP¥3,570199305

9011906355

main90119-06355¥160

9011910465

main90119-10465¥120

9011910480

main90119-10480¥240

9011910681

main90119-10681¥310

9011914022

main90119-14022¥520

9015960323

main90159-60323¥100

9017910180

main90179-10180¥120

9018906006

main90189-06006¥100

9095001392

main90950-01392¥100

9095001513

main90950-01513¥190

9095001615

main90950-01615¥160

91621B0816

main91621-B0816¥90

91629B1225

main91629-B1225¥260

91651B1018

main91651-B1018¥200

91652B0820

main91652-B0820¥130

91661B0820

main91661-B0820¥160

29 parts on this diagram · 1 diagram in section
