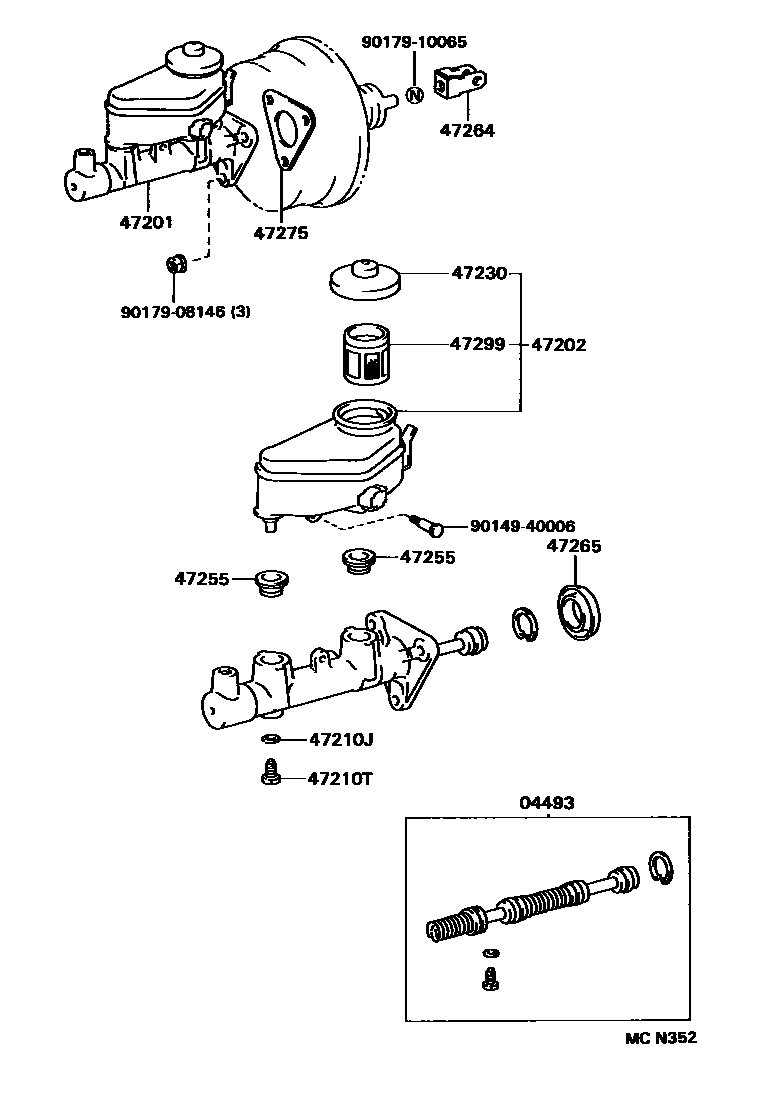

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
W(ABS)
W(ABS)
47201CYLINDER SUB-ASSY, BRAKE MASTER
(L)
(J)
W(ABS)
47210JGASKET(FOR MASTER CYLINDER)
47210TBOLT(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
(L)
(J)
47264CLEVIS, MASTER CYLINDER PUSH ROD
W(ABS)
47265BOOT, MASTER CYLINDER
(L)
(J)
47275GASKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9014940006
main90149-40006
9017908146
main90179-08146
9017910065
main90179-10065
14 parts on this diagram · 1 diagram in section
