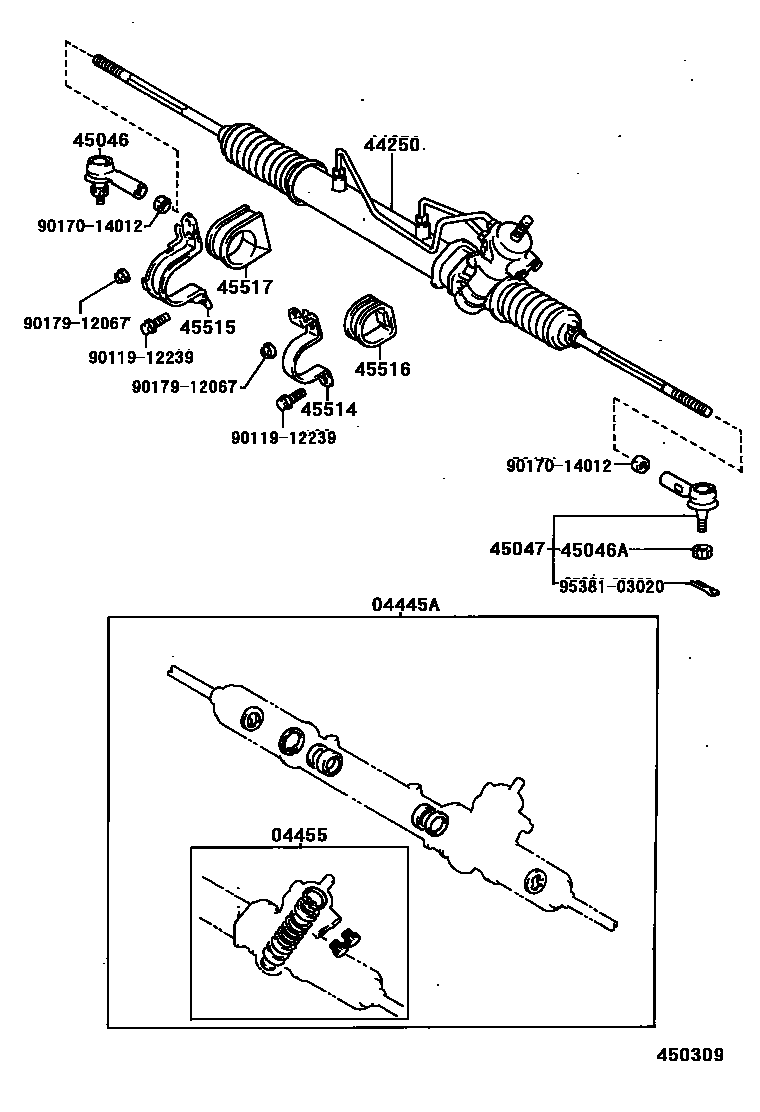

FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0002 1W(POWER STEERING) 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12110iAE10#..JPP199206-199505

main04445-12150iAE10#..JPP199505

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE10#..JPP199206

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12400iAE10#..JPP199206-199505

sub44250-12560

main44250-12560iAE10#..JPP199505

sub44250-12561

sub90178-08013

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE10#..JPP199206-199505

main45046-29305iAE10#..JPP199505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE10#..JPP199206

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE10#..JPP199206-199505

main45046-29305iAE10#..JPP199505

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE101..JPP..D;AE102..JPP..WG199206

W(POWER STEERING)

main45514-12110iAE101..JPP..D;AE102..JPP..WG199206

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE101..JPP..D;AE102..JPP..WG199206

main45515-12180iAE101..JPP..D;AE102..JPP..WG199206

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE10#..JPP199206

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE10#..JPP199206

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 3 diagrams in section
