STEERING WHEEL

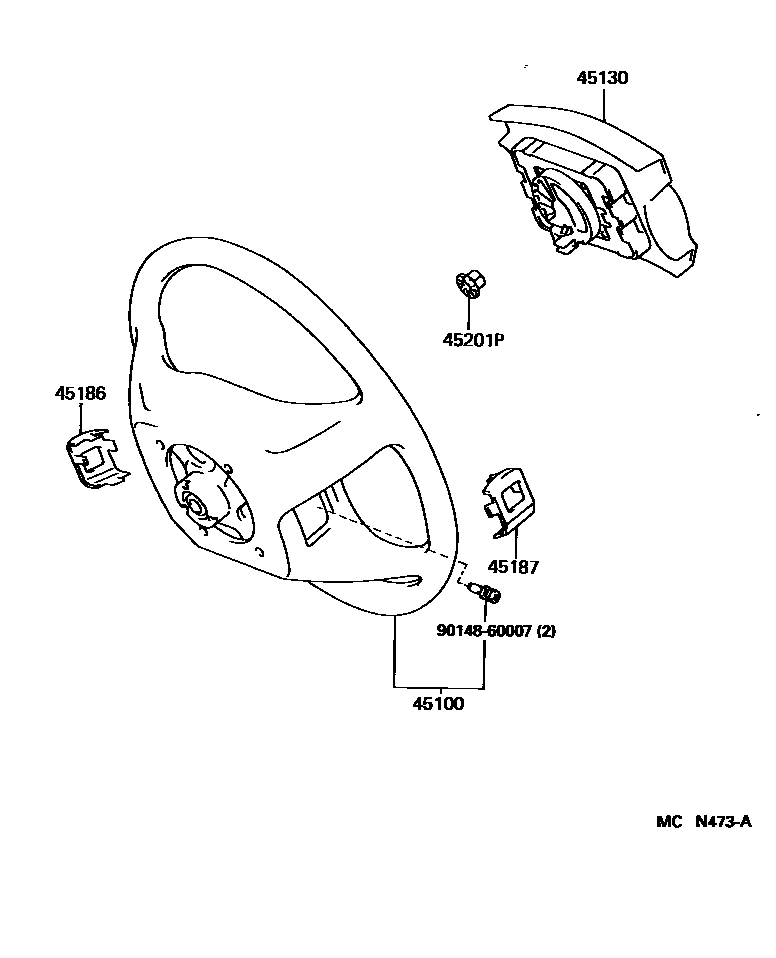

Parts diagram
45100WHEEL ASSY, STEERING
main45100-12700-B0i199206-199306
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33010
main45100-12700-J0i199206-199306
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33010
main45100-12700-K0i199206-199306
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33010
main45100-12710-B0i199206-199306
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33020¥38,100
main45100-12710-B0i199206-199306
4-SPOKE,URETHANE,W(*CRC),SHADOW GRAY,TRIM1#
sub45100-33020¥38,100
main45100-12710-J0i199206-199306
4-SPOKE,URETHANE,W(*CRC),DARK BLUE,TRIM8#
sub45100-33020¥38,100
main45100-12710-J0i199206-199306
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33020¥38,100
main45100-12710-K0i199206-199306
4-SPOKE,URETHANE,W(*CRC),TAUPE,TRIM9#
sub45100-33020¥38,100
main45100-12710-K0i199206-199306
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33020¥38,100
main45100-33010-B0i199306-199308
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33010
sub45100-33011¥33,000
main45100-33010-K0i199306-199308
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33010
sub45100-33011¥33,000
main45100-33010-W3i199306-199308
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33010
sub45100-33011¥33,000
main45100-33011-B0i199308-199508
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33011¥33,000
main45100-33011-K0i199308-199508
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33011¥33,000
main45100-33011-W3i199308-199508
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33011¥33,000
main45100-33020-B0i199306-199308
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33020-B0i199306-199308
4-SPOKE,URETHANE,W(*CRC),SHADOW GRAY,TRIM1#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33020-K0i199306-199308
4-SPOKE,URETHANE,W(*CRC),TAUPE,TRIM9#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33020-K0i199306-199308
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33020-W3i199306-199308
4-SPOKE,URETHANE,W(*CRC),DARK BLUE,TRIM8#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33020-W3i199306-199308
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33020¥38,100
sub45100-33021¥37,900
main45100-33021-B0i199308-199508
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33021¥37,900
main45100-33021-B0i199308-199508
4-SPOKE,URETHANE,W(*CRC),SHADOW GRAY,TRIM1#
sub45100-33021¥37,900
main45100-33021-K0i199308-199508
4-SPOKE,URETHANE,TAUPE,TRIM9#
sub45100-33021¥37,900
main45100-33021-K0i199308-199508
4-SPOKE,URETHANE,W(*CRC),TAUPE,TRIM9#
sub45100-33021¥37,900
main45100-33021-W3i199308-199508
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33021¥37,900
main45100-33021-W3i199308-199508
4-SPOKE,URETHANE,W(*CRC),DARK BLUE,TRIM8#
sub45100-33021¥37,900
main45100-33090-B1i199508-199704
4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
sub45100-33090¥31,900
main45100-33090-E0i199508-199704
4-SPOKE,URETHANE,OAK,TRIM4#
sub45100-33090¥31,900
main45100-33090-J0i199508-199704
4-SPOKE,URETHANE,DARK BLUE,TRIM8#
sub45100-33090¥31,900
main45100-33100-B2i199508-199704
4-SPOKE,URETHANE,W(*CRC),SHADOW GRAY,TRIM1#
sub45100-33100¥38,100
main45100-33100-E0i199508-199704
4-SPOKE,URETHANE,W(*CRC),OAK,TRIM4#
sub45100-33100¥38,100
main45100-33100-J0i199508-199704
4-SPOKE,URETHANE,W(*CRC),DARK BLUE,TRIM8#
sub45100-33100¥38,100
45130BUTTON ASSY, HORN
main45130-12761-B0i199206-199308
SHADOW GRAY,TRIM1#
sub45130-12790¥76,800
main45130-12761-J0i199206-199308
DARK BLUE,TRIM8#
sub45130-12790¥76,800
main45130-12761-K0i199206-199308
TAUPE,TRIM9#
sub45130-12790¥76,800
main45130-12762-B0i199308-199408
SHADOW GRAY,TRIM1#
sub45130-12763¥76,800
main45130-12762-J0i199308-199408
DARK BLUE,TRIM8#
sub45130-12763¥76,800
main45130-12762-K0i199308-199408
TAUPE,TRIM9#
sub45130-12763¥76,800
main45130-12763-B0i199408-199505
SHADOW GRAY,TRIM1#
sub45130-12763¥76,800
main45130-12763-J0i199408-199505
DARK BLUE,TRIM8#
sub45130-12763¥76,800
main45130-12763-K0i199408-199505
TAUPE,TRIM9#
sub45130-12763¥76,800
main45130-1A030-B0i199505-199704
SHADOW GRAY,TRIM1#
sub45130-1A030¥76,900
main45130-1A030-E0i199508-199704
OAK,TRIM4#
sub45130-1A030¥76,900
main45130-1A030-J0i199505-199704
DARK BLUE,TRIM8#
sub45130-1A030¥76,900
main45130-1A030-K0i199505-199508
TAUPE,TRIM9#
sub45130-1A030¥76,900
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-33010-B0i199206-199704
SHADOW GRAY,TRIM1#
sub45186-33010¥400
main45186-33010-E1i199508-199704
OAK,TRIM4#
sub45186-33010¥400
main45186-33010-K0i199206-199408
TAUPE,TRIM9#
sub45186-33010¥400
main45186-33010-W3i199206-199704
DARK BLUE,TRIM8#
sub45186-33010¥400
main45186-33020-B0i199206-199508
SHADOW GRAY,TRIM1#
sub45186-33020¥590
main45186-33020-B0i199206-199704
W(*CRC),SHADOW GRAY,TRIM1#
sub45186-33020¥590
main45186-33020-E0i199508-199704
W(*CRC),OAK,TRIM4#
sub45186-33020¥590
main45186-33020-K0i199206-199508
TAUPE,TRIM9#
sub45186-33020¥590
main45186-33020-K0i199206-199508
W(*CRC),TAUPE,TRIM9#
sub45186-33020¥590
main45186-33020-W3i199206-199704
W(*CRC),DARK BLUE,TRIM8#
sub45186-33020¥590
main45186-33020-W3i199206-199508
DARK BLUE,TRIM8#
sub45186-33020¥590
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-33010-B0i199206-199704
SHADOW GRAY,TRIM1#
sub45187-33010¥400
main45187-33010-E0i199508-199704
OAK,TRIM4#
sub45187-33010¥400
main45187-33010-K0i199206-199508
TAUPE,TRIM9#
sub45187-33010¥400
main45187-33010-W3i199206-199704
DARK BLUE,TRIM8#
sub45187-33010¥400
45201PNUT, STEERING WHEEL SET
main90179-12071i¥130199306
main90179-12086i¥300199206-199306
9014860007
main90148-60007¥130

6 parts on this diagram · 1 diagram in section
