TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

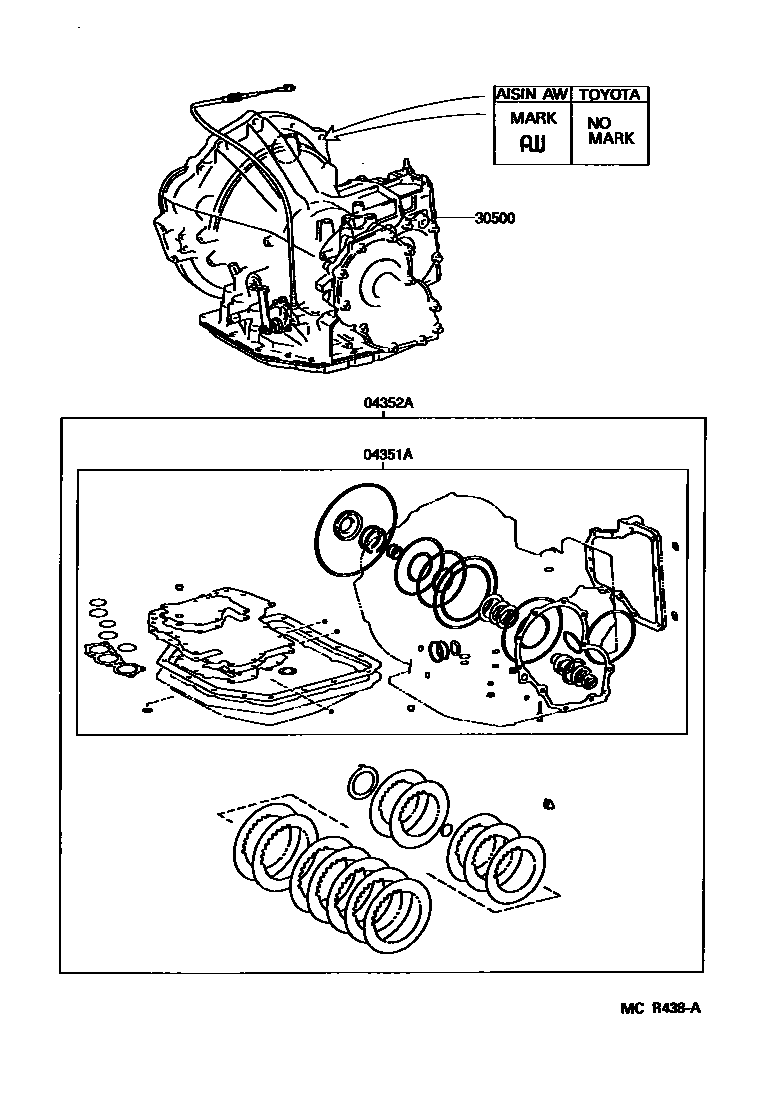

Parts diagram
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
main04351-12080i199206-199402
main04351-12090i199206-199505
main04351-12100i199505-199704
main04351-12110i199402-199704
04352AKIT, TRANSAXLE OVERHAUL(ATM)
main04352-12130i199206-199505
main04352-12140i199206-199307
sub04352-12141
main04352-12141i199307-199608
main04352-12150i199206-199307
sub04352-12151
main04352-12151i199307-199402
main04352-12160i199402-199704
main04352-12180i199505-199704
30500TRANSAXLE ASSY, AUTOMATIC
main30500-12810i199206-199408
main30500-12811i199408-199704
main30500-12820i199206-199505
sub30500-12821
main30500-12860i199206-199505
sub30500-12820
main30500-12870i199206-199505
*AXC=-06A
main30500-1A070i199505-199608
sub30500-1A270
main30500-1A140i199505-199608
*AXC=-06A
main30500-1A270i199505-199704

3 parts on this diagram · 2 diagrams in section
