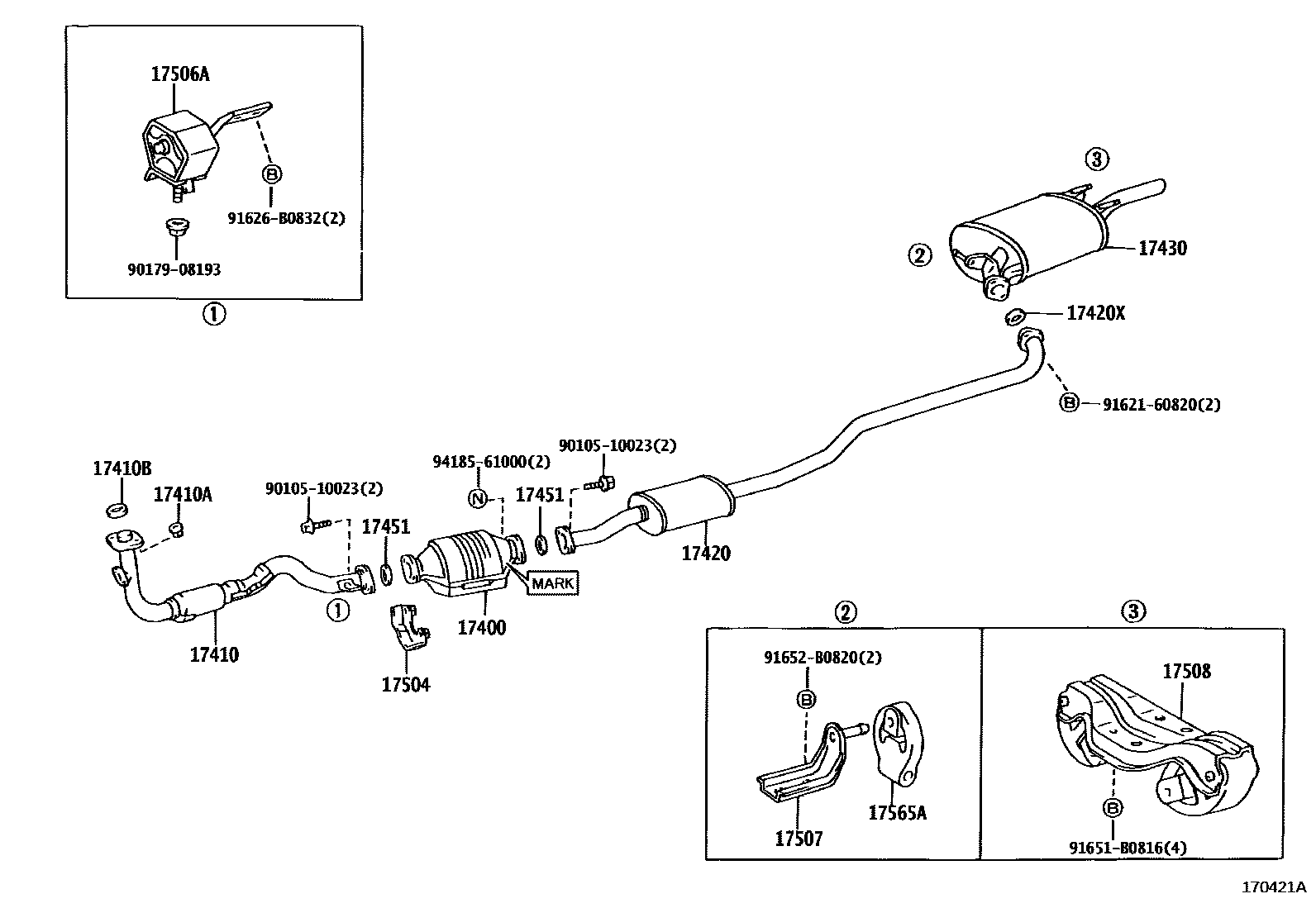

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
(L)
(L)
(L),MARK = B12
CALIFORNIA SPEC,(L),MARK = E16
(J)
CALIFORNIA SPEC
(J),MARK = B12
(J)
CALIFORNIA SPEC,(J),MARK = E16
CALIFORNIA SPEC
17410PIPE ASSY, EXHAUST, FRONT
(L)
CALIFORNIA SPEC,(L)
(L)
CALIFORNIA SPEC,(L)
(L)
CALIFORNIA SPEC,(L)
CALIFORNIA SPEC,(L)
(J)
CALIFORNIA SPEC,(J)
(J)
CALIFORNIA SPEC,(J)
(J)
CALIFORNIA SPEC,(J)
CALIFORNIA SPEC,(J)
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
CALIFORNIA SPEC,FRONT
CALIFORNIA SPEC,FRONT
CALIFORNIA SPEC,REAR
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
CALIFORNIA SPEC
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
sub17565-28020
9010510023
main90105-10023
9017908193
main90179-08193
9162160820
main91621-60820
91626B0832
main91626-B0832
91651B0816
main91651-B0816
91652B0820
main91652-B0820
9418561000
main94185-61000
20 parts on this diagram · 1 diagram in section
