STANDARD TOOL

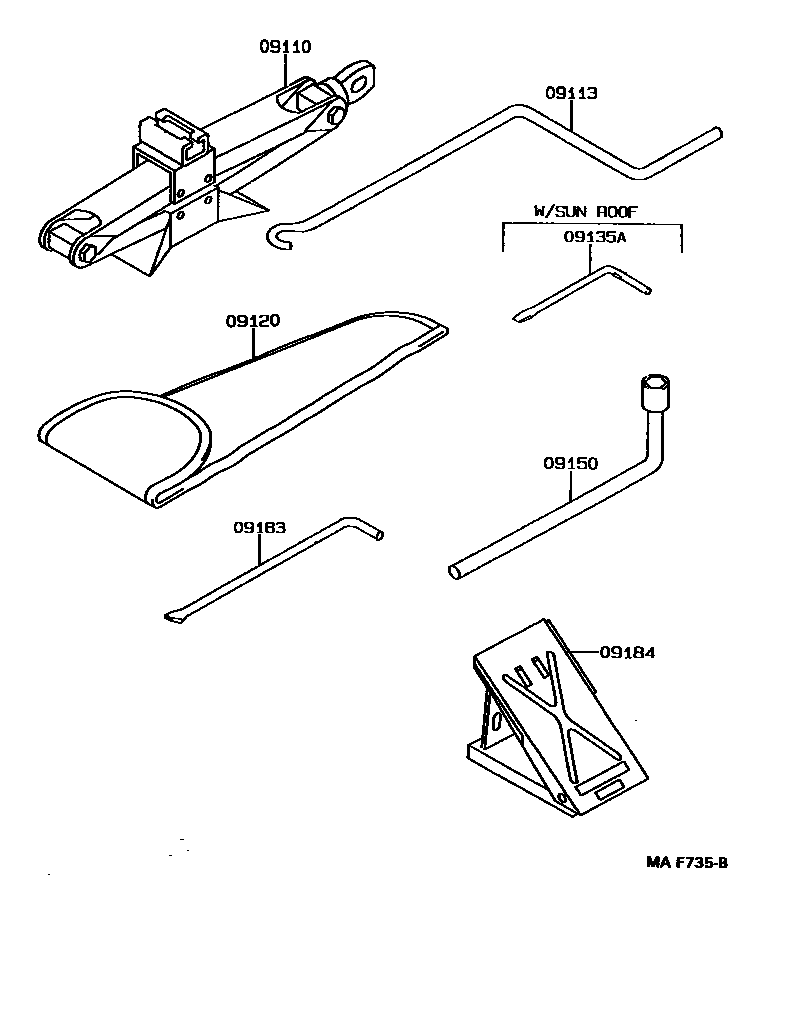

Parts diagram
09110JACK ASSY
main09111-03011i199209
(L)
main09111-12090i199206-199301
main09111-12100i199402-199505
(J)
sub09111-20060
main09111-12130i199206-199402
(J)
sub09111-12100
main09111-12140i199301
09113HANDLE, JACK
main09113-12010i199206
main09113-12020i199206
09120BAG, TOOL
main09120-01020i199206
(L)
main09120-32010i199206
(J)
09135ABIT, SCREW DRIVER
main09135-00012i199206-199508
09150WRENCH, HUB NUT BOX
main09150-01010i199306-199309
(L)
sub09150-02020
main09150-02020i199309
(L)
main09150-26010i199206-199309
(J)
main09150-40010i199309
(J)
09183WRENCH, WHEEL CAP
main09183-00010i199206-199309
(J)
main09183-01020i199306-199309
(L)
sub09150-02020
09184STOPPER, WHEEL
main09184-00010i199206-199309

7 parts on this diagram · 1 diagram in section
