HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iAE92198708-198808

main88412-12190iAE92;AE95..USA198801-199206

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12141iAE9#198708-199206

88320COMPRESSOR ASSY, COOLER

main88320-12520iAE9#198708-198908

sub88320-35H91

main88320-12720iAE9#198807-199206

sub88320-35H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAE92..USA198708-199206

88356LABEL, COMPRESSOR CAUTION

main88356-12010iAE92..USA198708-199206

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iAE9#198708-199206

88410CLUTCH ASSY, MAGNET

main88410-12240iAE92198708-198908

main88410-12270iAE92;AE95..USA198801-198908

main88410-12330iAE9#198908-199206

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12380iAE9#198708-199206

88446BOLT, IDLE PULLEY

main88446-12030iAE9#198708-199206

88595DPULLEY ASSY, IDLE

main88440-17010iAE9#198708-199206

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9162161025

main91621-61025

9162161040

main91621-61040

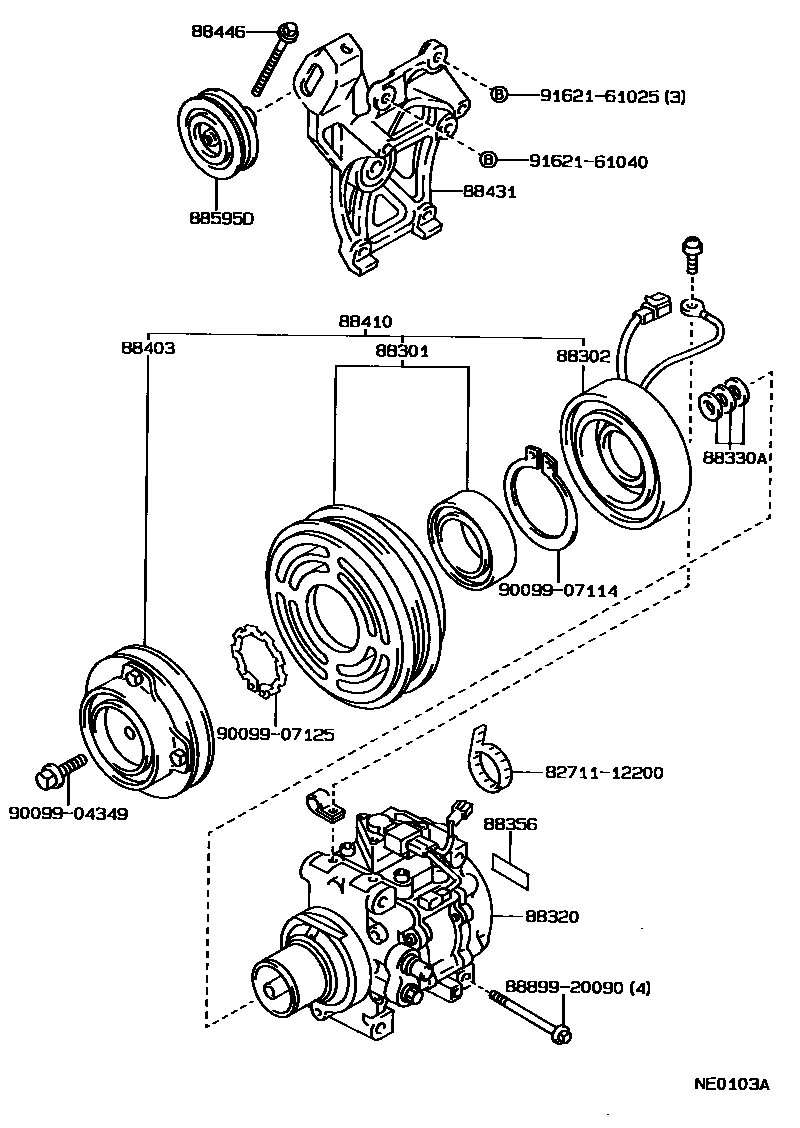

17 parts on this diagram · 2 diagrams in section
