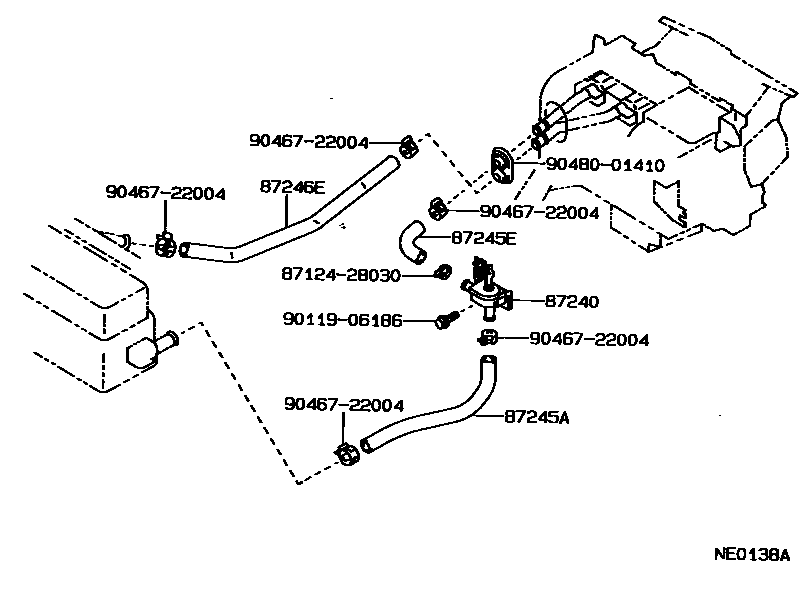

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-12240iAE9#¥3,210198708-199206

87245AHOSE, HEATER WATER, INLET A

main87245-1A160iAE92..SED¥1,120198708-198908

main87245-1A390iAE95;AE92..WG;AE92..SED..EFI¥1,620198710-199206

87245EHOSE, HEATER WATER, INLET E

main87245-1A310iAE9#¥680198708-198908

sub87245-1A380¥670

main87245-1A380iAE9#¥670198908-199206

87246EHOSE, HEATER WATER, OUTLET E

main87245-1A270iAE92..SED¥2,410198708-198908

sub87245-1A271¥2,260

main87245-1A330iAE92..WG;AE92..SED..EFI¥2,420198710-199106

main87245-1A331iAE92¥2,860199106-199206

sub87245-1A332¥2,870

main87245-1A420iAE95¥3,030198802-199009

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186¥140

9046722004

main90467-22004¥330

9048001410

main90480-01410

8 parts on this diagram · 1 diagram in section
