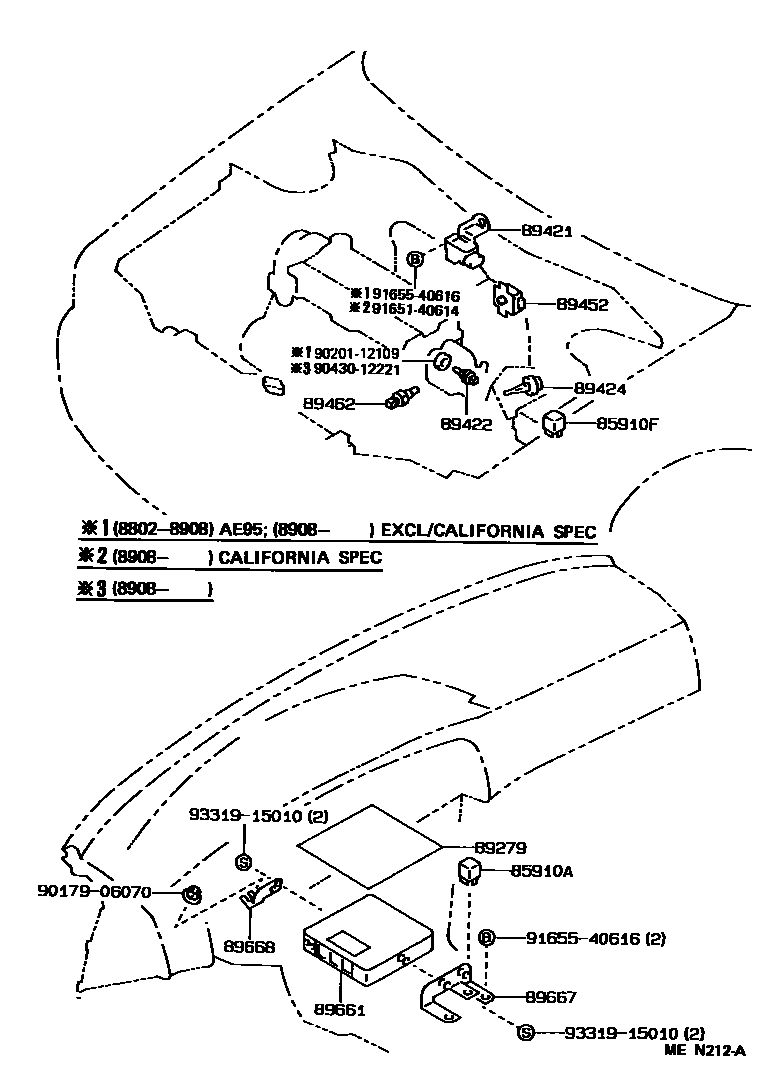

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAE9#..EFI198802-199206

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006iAE9#..EFI198802-199206

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAE9#..EFI198802-199206

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12010iAE95198802-198908

main89420-12040iAE95;AE92..5F198908-199206

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010iAE95198802-198808

main89422-20010iAE9#..EFI198808-199206

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE95;AE92..5F..EFI198802-199206

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iAE92..ATM198908-199011

main89452-22010iAE92..ATM199011-199206

main89452-32020iAE95;AE92..5F..EFI198802-199206

89462SWITCH, START INJECTOR TIME

main89462-12010iAE95198802-198808

main89462-20030iAE9#..EFI198808-199206

89661COMPUTER, ENGINE CONTROL

main89661-12270iAE95..5F198802-198908

main89661-12390iAE95..4FC198802-198908

main89661-12490iAE92..3FC,5F198908-199008

main89661-12491iAE92..3FC,5F199008-199206

main89661-12500iAE92..4FC198908-199008

main89661-12501iAE92..4FC199008-199206

main89661-12510iAE92..(3FC,5F)..USA198908-199008

CALIFORNIA SPEC

main89661-12511iAE92..(3FC,5F)..USA199008-199206

CALIFORNIA SPEC

main89661-12520iAE92..4FC..USA198908-199008

CALIFORNIA SPEC

main89661-12521iAE92..4FC..USA199008-199206

CALIFORNIA SPEC

main89661-12530iAE95198908-199009

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12020iAE92198908-199206

main89667-12090iAE95198802-199009

main89667-12100iAE95..4FC198908-199009

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12040iAE9#..EFI198802-199206

9017906070

main90179-06070

9020112109

main90201-12109

9043012221

main90430-12221

9165140614

main91651-40614

9165540616

main91655-40616

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
