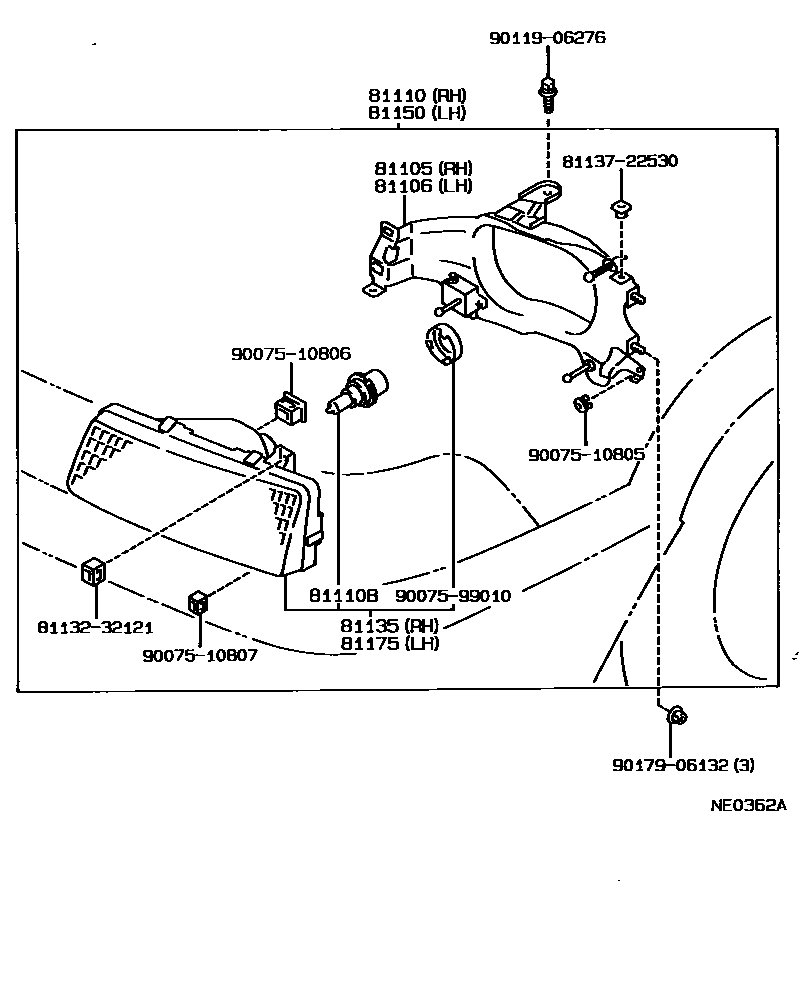

HEADLAMP

0001 1 0003 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-1A660iAE92;AE95..SED198708-199206

main81105-1A750iAE95..WG198802-199009

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-1A660iAE92;AE95..SED198708-199206

main81106-1A750iAE95..WG198802-199009

81110HEADLAMP ASSY, RH

main81110-1A660iAE92;AE95..SED198708-199206

main81110-1A750iAE95..WG198802-199009

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13032×2iAE9#198708-199206

12V 65/45W,*HAL,*WH

81135UNIT ASSY, HEADLAMP, RH

main81130-1A660iAE92;AE95..SED198708-199206

main81130-1A750iAE95..WG198802-199009

81150HEADLAMP ASSY, LH

main81150-1A660iAE92;AE95..SED198708-199206

main81150-1A750iAE95..WG198802-199009

81175UNIT ASSY, HEADLAMP, LH

main81170-1A660iAE92;AE95..SED198708-199206

main81170-1A750iAE95..WG198802-199009

8113232121NUT, HEADLAMP SELF LOCKING

main81132-32121

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510805

main90075-10805

9007510806

main90075-10806

9007510807

main90075-10807

9007599010

main90075-99010

9011906276

main90119-06276

9017906132

main90179-06132

15 parts on this diagram · 2 diagrams in section
