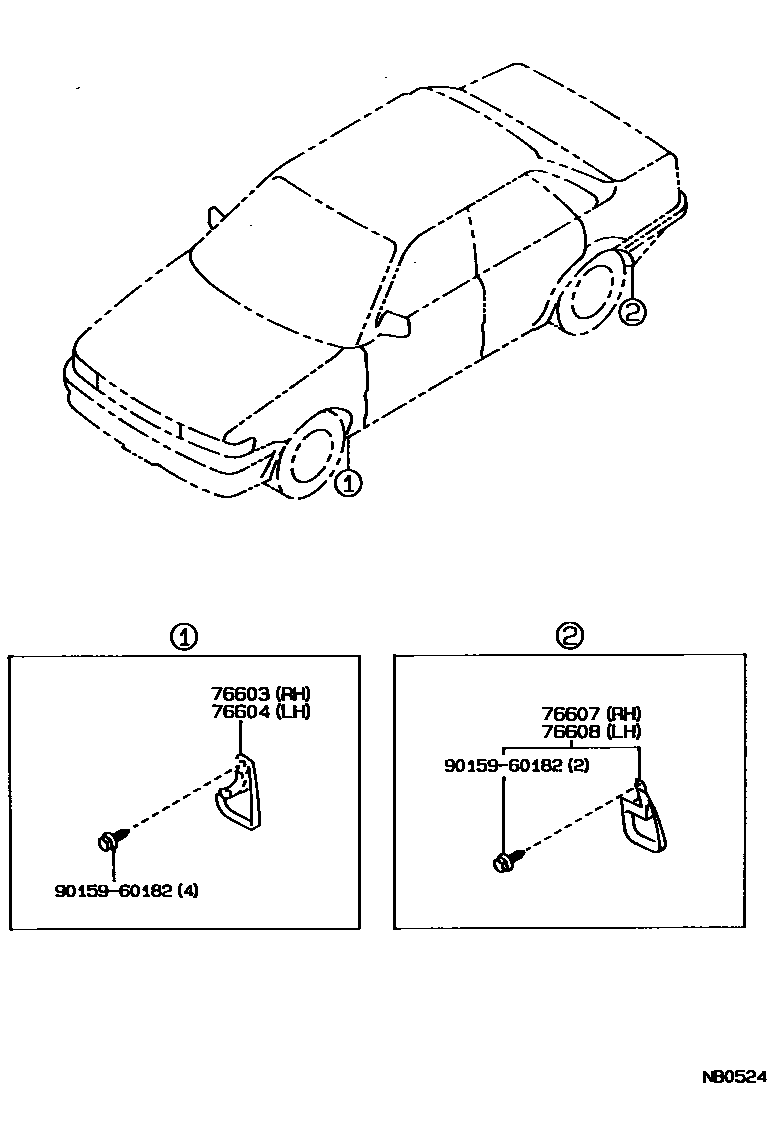

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12050iAE9#198708-199206

main76621-12060-03iAE95..SR5198908-199009

GRAY M,27M

sub76621-12060

main76621-12060-04iAE95..SR5..USA198802-198905

DARK BLUE M,22G

sub76621-12060

main76621-12060-07iAE95..SR5..CND198802-198905

DARK GREEN M,21G

sub76621-12060

main76621-12060-14iAE95..SR5..USA198908-199009

DARK BLUE MICA M,25M

sub76621-12060

main76621-12060-17iAE95..SR5..CND198908-199009

GRAYISH GREEN M,26M

sub76621-12060

main76621-12060-23iAE92..LE..CND198909

25TH ANNIVERSARY,SILVER M,164

sub76621-12060

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12050iAE9#198708-199206

main76622-12060-03iAE95..SR5198908-199009

GRAY M,27M

sub76622-12060

main76622-12060-04iAE95..SR5..USA198802-198905

DARK BLUE M,22G

sub76622-12060

main76622-12060-07iAE95..SR5..CND198802-198905

DARK GREEN M,21G

sub76622-12060

main76622-12060-14iAE95..SR5..USA198908-199009

DARK BLUE MICA M,25M

sub76622-12060

main76622-12060-17iAE95..SR5..CND198908-199009

GRAYISH GREEN M,26M

sub76622-12060

main76622-12060-23iAE92..LE..CND198909

25TH ANNIVERSARY,SILVER M,164

sub76622-12060

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19255iAE92..SED;AE95..SED..5F..USA198708-199206

main76625-19265iAE95..WG;AE92..WG..CBR198710-199206

main76625-19295-04iAE95..SR5..USA198802-198908

DARK BLUE M,22G

sub76625-19295

main76625-19295-07iAE95..SR5..CND198802-198908

DARK GREEN M,21G

sub76625-19295

main76625-19295-14iAE95..SR5..USA198908-199009

DARK BLUE MICA M,25M

sub76625-19295

main76625-19295-17iAE95..SR5..CND198908-199009

GRAYISH GREEN M,26M

sub76625-19295

main76625-19295-23iAE95..SR5198908-199009

GRAY M,27M

sub76625-19295

main76625-19365-03iAE92..LE..CND198909

25TH ANNIVERSARY,SILVER M,164

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19265iAE92..SED;AE95..SED..5F..USA198708-199206

main76626-19275iAE95..WG;AE92..WG..CBR198710-199206

main76626-19305-04iAE95..SR5..USA198802-198908

DARK BLUE M,22G

sub76626-19305

main76626-19305-07iAE95..SR5..CND198802-198908

DARK GREEN M2,21G

sub76626-19305

main76626-19305-14iAE95..SR5..USA198908-199009

DARK BLUE MICA M,25M

sub76626-19305

main76626-19305-17iAE95..SR5..CND198908-199009

GRAYISH GREEN M,26M

sub76626-19305

main76626-19305-23iAE95..SR5198908-199009

GRAY M,27M

sub76626-19305

main76626-19375-03iAE92..LE..CND198909

25TH ANNIVERSARY,SILVER M,164

9015960182

main90159-60182

5 parts on this diagram · 3 diagrams in section
