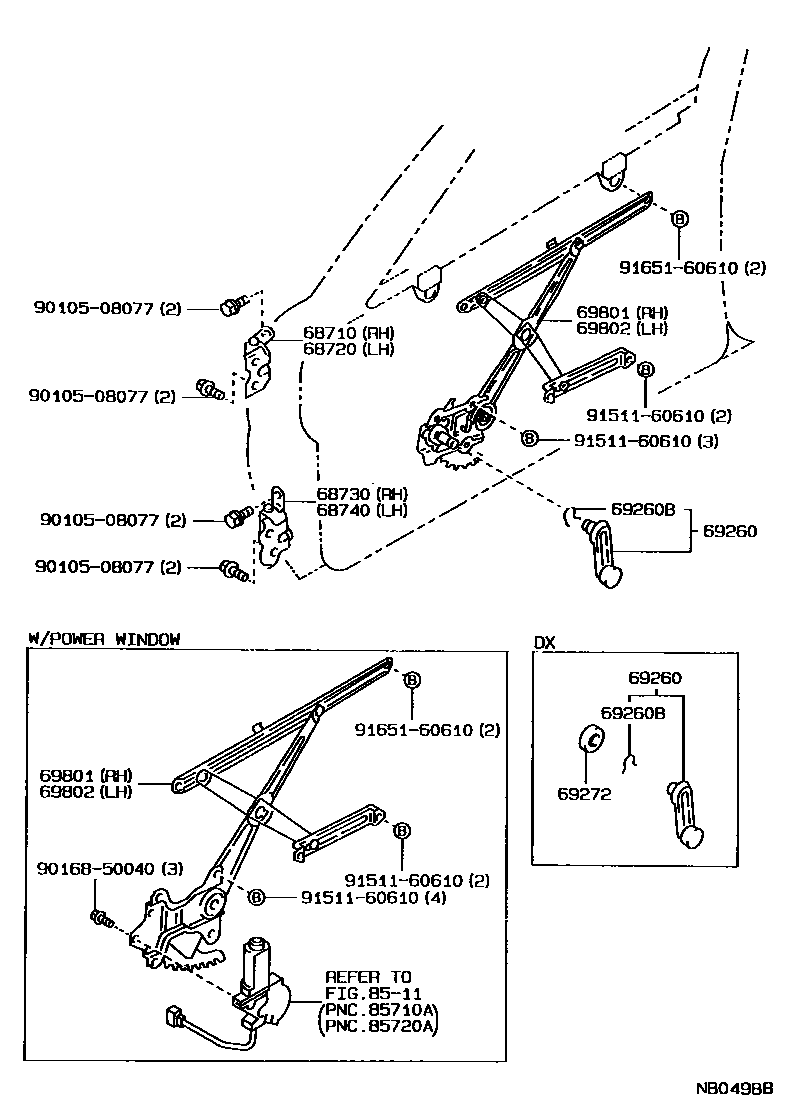

FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
DX PACKAGE,MAROON,TRIM3#
DX PACKAGE,GRAY,TRIM1#
DX PACKAGE,BROWN,TRIM4#
DARK BLUE,TRIM8#
DX PACKAGE,DARK BLUE,TRIM8#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(*PW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(*PW)
8511
9010508077
9016850040
9151160610
9165160610
14 parts on this diagram · 1 diagram in section
