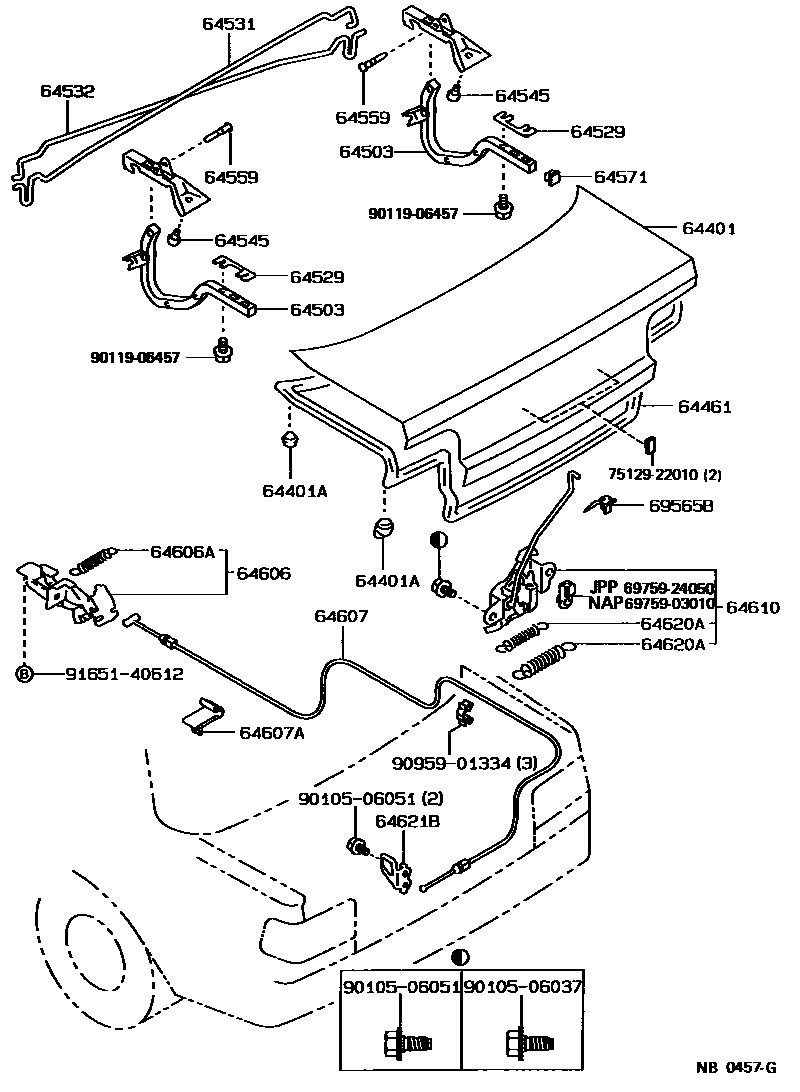

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A350iAE92..SED..DX198708-198808

main64401-1A360iAE9#..SED198808-198908

main64401-1A362iAE92..SED..(DX,LE)199008-199206

main64401-1A450iAE92..STD199008-199206

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-12010×4iAE9#..SED198911-199206

RR

main90541-06076×2iAE9#..SED198708-199206

FR

sub90541-06056

main90541-20002×4iAE9#..SED198908-198911

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12350iAE9#..SED198708-199206

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12030×2iAE9#..SED198708-199206

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAE9#..SED198708-199206

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12240iAE92..SED..DX198708-198808

main64531-12250iAE9#..SED198808-199008

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12230iAE92..SED..DX198708-198808

main64532-12240iAE92..LE198708-198808

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09014×2iAE9#..SED198708-199206

64559PIN, LUGGAGE DOOR HINGE

main64559-32010×2iAE9#..SED198708-199206

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020×2iAE9#..SED198710-199206

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12050iAE9#..SED..(DX,LE)198708-199206

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034×2iAE9#..SED..(DX,LE)198708-199206

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12330iAE95..SED198808-199008

main64607-12340iAE92..SED..(DX,LE)198708-199206

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAE9#..SED..(DX,LE)198708-199206

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12100iAE92..SED..DX..USA198901-198908

STD PACKAGE

main64610-12120iAE9#..SED..(DX,LE)198708-199206

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-06008iAE9#..SED..(DX,LE)198708-199206

WD=0.55,CW=13.25

main90506-07013iAE92..SED..DX..USA198901-198908

STD PACKAGE

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE9#..SED198708-199206

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12040iAE9#..SED198708-199206

6975903010SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-03010

6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050

7512922010CUSHION, REAR LICENSE PLATE

main75129-22010

9010506037

main90105-06037

9010506051

main90105-06051

9011906457

main90119-06457

9095901334

main90959-01334

9165140612

main91651-40612

26 parts on this diagram · 1 diagram in section
