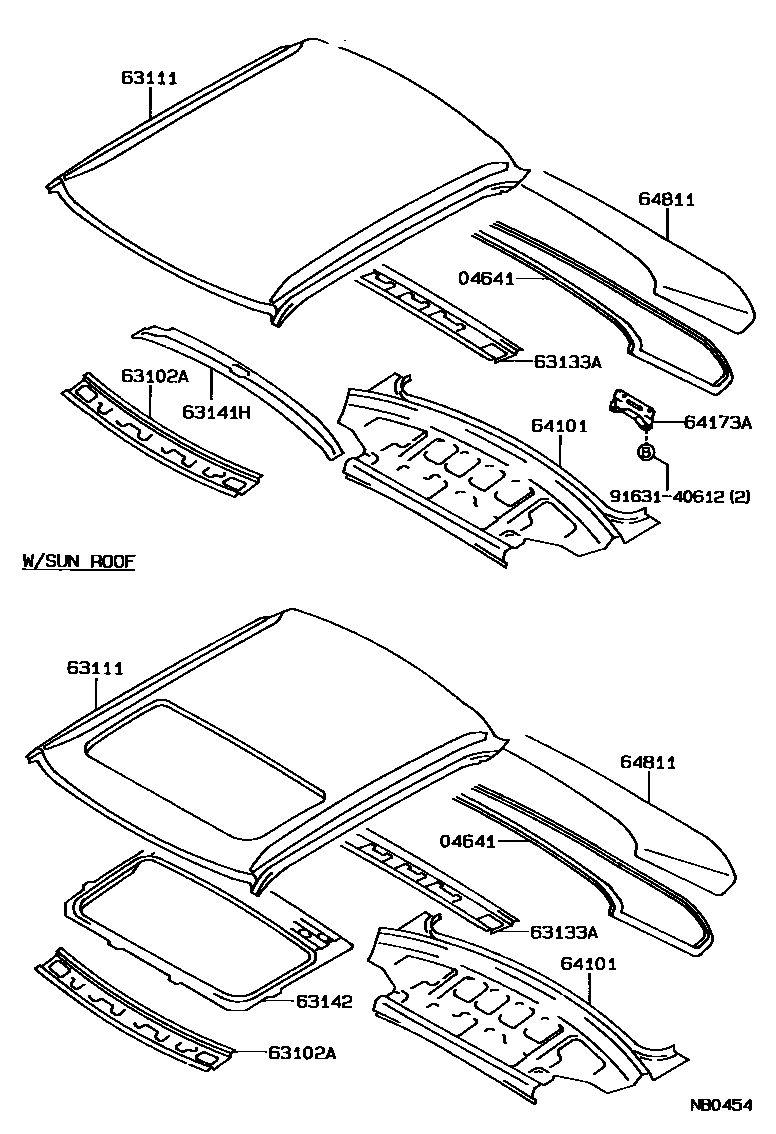

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iAE9#..SED198908-199206

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12040iAE9#..SED198708-199206

main63102-12070iAE95..WG198802-199009

main63102-13010iAE92..WG198710-199206

63111PANEL, ROOF

main63111-12300iAE92..SED198708-198808

main63111-12301iAE9#..SED198808-199206

main63111-12310iAE92..SED198708-198808

W(SUN ROOF)

main63111-12311iAE9#..SED..(DX,LE)198808-199206

W(SUN ROOF)

main63111-12907iAE95..WG198802-199009

W/O AIR SPOILER

main63111-12909iAE95..WG198802-199009

W(SUN ROOF) & W/O AIR SPOILER

main63111-12911iAE95..WG198802-199009

main63111-12913iAE95..WG198802-199009

W(SUN ROOF)

main63111-13070iAE92..WG198710-199206

63133AFRAME, BACK WINDOW, UPPER

main63133-12160iAE9#..SED198708-199206

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12130iAE9#..SED198708-199206

main63141-12150iAE95..WG198802-199009

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12030iAE9#..SED..(DX,LE)198708-199206

main63142-12050iAE95..WG198802-199009

main63142-13040iAE92..WG198710-199206

64101PANEL SUB-ASSY, UPPER BACK

main64101-12350iAE9#..SED198708-199206

64173ABRACKET, HIGH MOUNTING STOP LAMP

main64173-12020iAE9#..SED198708-199206

64811GLASS, BACK WINDOW

main64811-12880iAE92..STD198908-199206

*EHTT,T=3.5,W(DEFOGGER)

main64811-12890iAE9#..SED..CND198708-199206

*EHTT,T=3.5,W(HEAVY DEFOGGER)

main64811-1A120iAE92..SED..DX..USA198901-198908

*TT,T=3.5

sub64811-1A130

9163140612

main91631-40612

10 parts on this diagram · 5 diagrams in section
