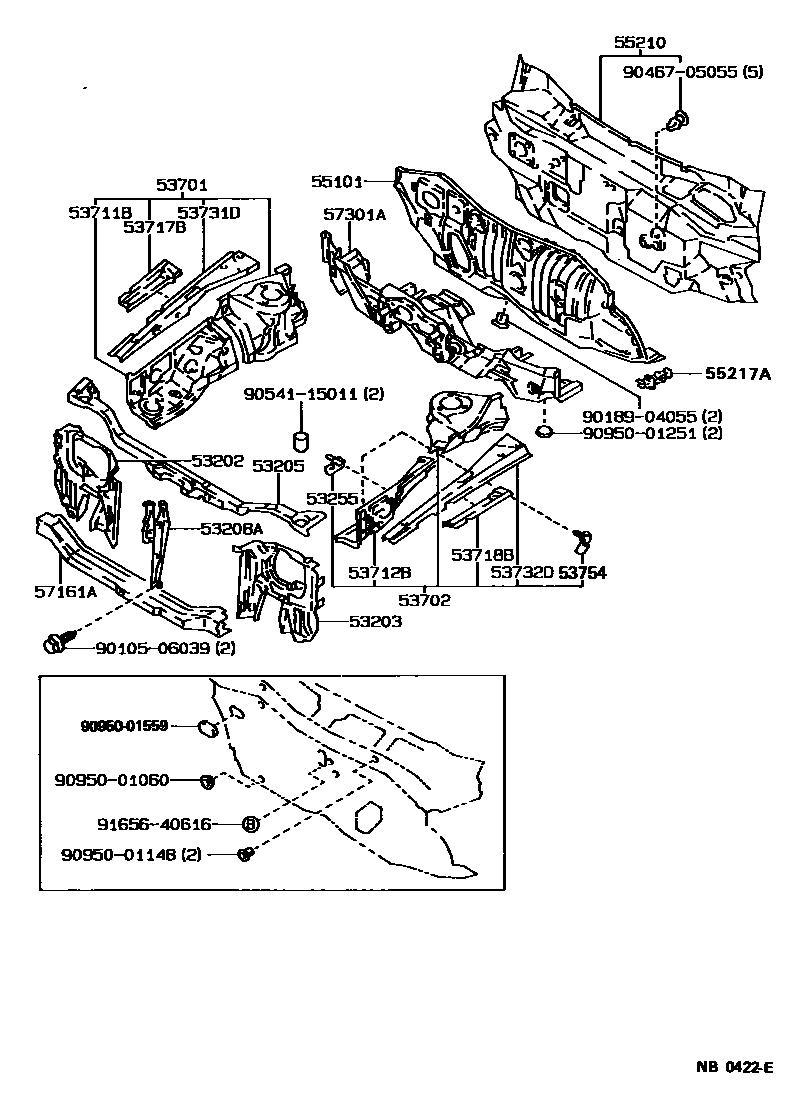

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12290iAE9#198708-199206

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12250iAE9#198708-199206

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12928iAE9#198708-199206

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12340iAE92;AE95..SED198708-199206

main53208-12350iAE95..WG198802-199009

53255BRACKET, RELAY BOX MOUNTING

main53255-12010iAE9#198708-199206

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A010iAE9#198708-199206

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A030iAE9#198708-199206

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12210iAE9#198708-199206

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12170iAE9#198708-199206

53717BGUSSET, FENDER APRON, RH

main53717-12040iAE9#198802-199206

53718BGUSSET, FENDER APRON, LH

main53718-12040iAE9#198802-199206

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12130iAE9#198708-199011

sub53731-12140

main53731-12140iAE92199011-199206

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12110iAE9#198708-199011

sub53732-12120

main53732-12120iAE92199011-199206

53754BRACKET, RELAY BOX MOUNTING, NO.2

main53754-12010iAE9#198708-199206

55101PANEL SUB-ASSY, DASH

main55101-1A130iAE95..SR5;AE92..5F..LE..CND;AE9#..5F..(DX,LE)..USA198708-199206

W(CRUISE CONTROL)

sub55101-1A210

main55101-1A150iAE9#..ATM..USA;AE92..4FC..CND198708-199206

sub55101-1A210

sub90333-40001

sub90950-01409

main55101-1A210iAE95..SR5;AE92..5F..LE..CND;AE9#..5F..(DX,LE,STD)..USA198708-199206

main55101-1A250iAE9#..5F..DX198708-199206

sub55101-1A210

sub90950-01670

main55101-1A410iAE9#..ATM..DX..CND198708-199206

sub55101-1A210

sub90333-40001

sub90950-01409

main55101-1A660iAE9#..5F..DX198708-199206

W(CRUISE CONTROL)

sub55101-1A210

55210INSULATOR ASSY, DASH PANEL

main55210-12370iAE9#198708-199206

55217ARETAINER, DASH PANEL SILENCER

main55217-12080iAE9#..ATM198908-199206

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-12912iAE9#198708-199206

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12060iAE9#198708-199206

9010506039

main90105-06039

9018904055

main90189-04055

9046705055

main90467-05055

9054115011

main90541-15011

9095001060

main90950-01060

9095001148

main90950-01148

9095001251

main90950-01251

9095001559

main90950-01559

9165640616

main91656-40616

28 parts on this diagram · 1 diagram in section
