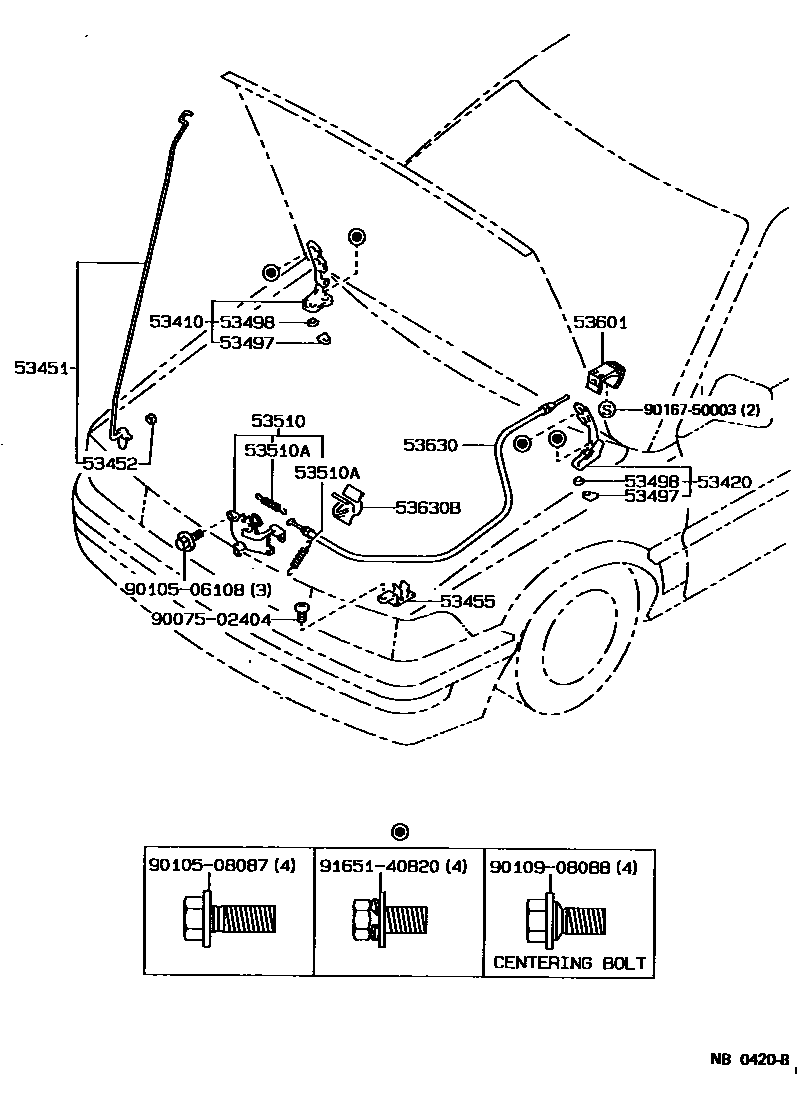

HOOD LOCK & HINGE
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
T=0.5
53510LOCK ASSY, HOOD
W(ANTI-THEFT DEVICE SYSTEM)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21.25,WD=0.9,CW=21.25
WD=0.9,CW=45.5
WD=0.9,CW=27.5
WD=0.9,CW=27.5,WD=0.9,CW=27.5
WD=2.0,CW=17
WD=2.0,CW=17,WD=2.0,CW=17
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9007502404
main90075-02404
9010506108
main90105-06108
9010508087
main90105-08087
9010908088
main90109-08088
9016750003
main90167-50003
9165140820
main91651-40820
18 parts on this diagram · 1 diagram in section
