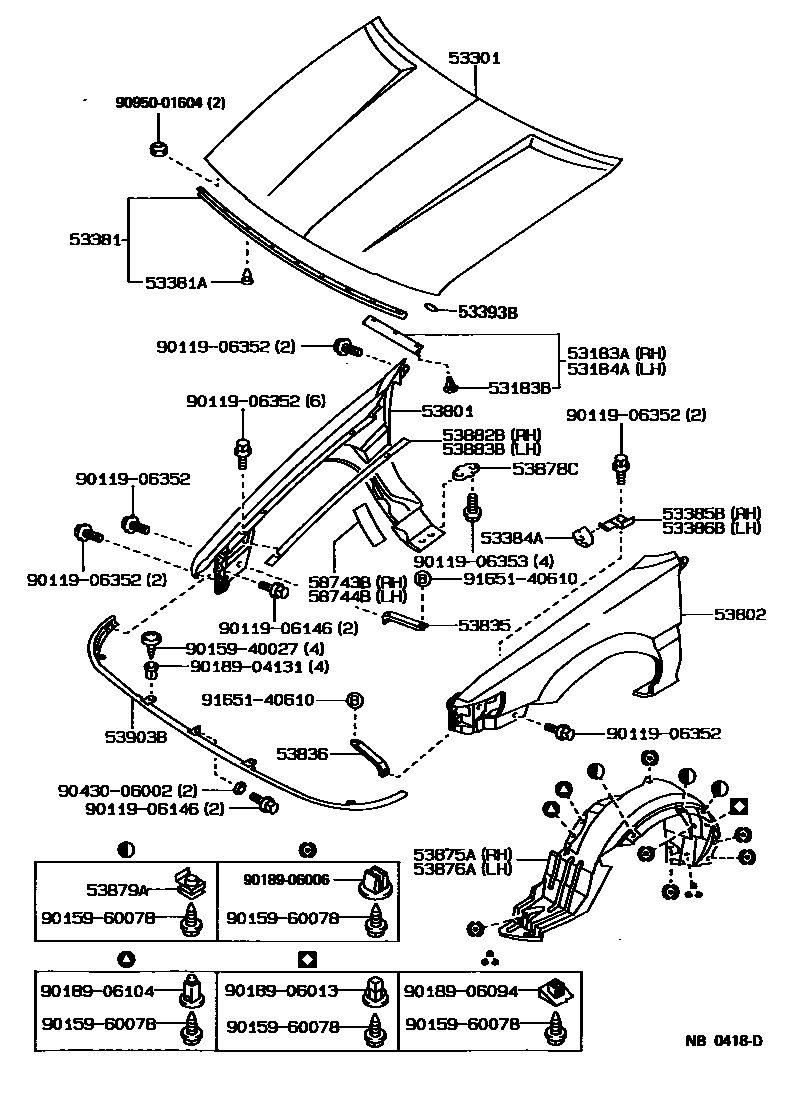

HOOD & FRONT FENDER
53183ASEAL, HEADLAMP COVER, RH
53183BCLIP(FOR HEADLAMP COVER SEAL)
53184ASEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53903BPANEL SUB-ASSY, FRONT END
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9011906146
9011906352
9011906353
9015940027
9015960078
9018904131
9018906006
9018906013
9018906094
9018906104
9043006002
9095001604
9165140610
36 parts on this diagram · 1 diagram in section
